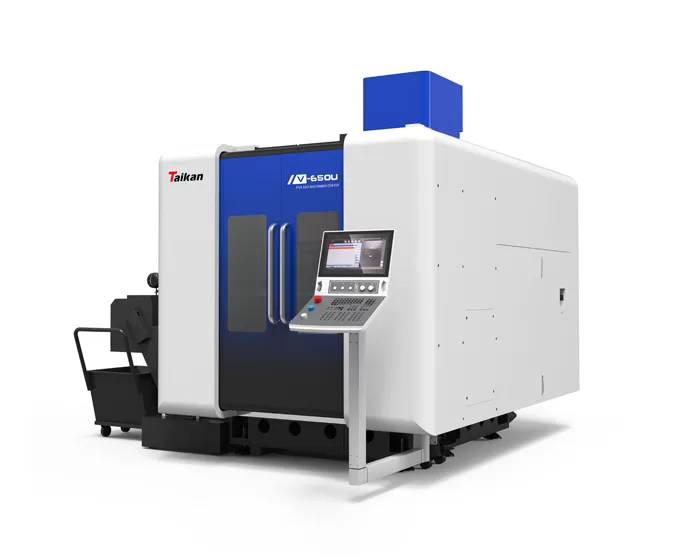

V-650U Vertical 5-Axis Machining Center

Travel

X/Y/Z travel

mm

650/800/500

A axis rotation range

°

±120

C axis rotation range

°

360

Distance from spindle nose to worktable surface

mm

150-650

Table

Table size

mm

Φ650x530

Max. load

kg

500

T-slot (number of slots - slot width * spacing)

mm

7-18*65

Speed

X/Y/Z axis rapid traverse speed

mm/min

36000

A/C axis rapid traverse rotation speed

r/min

50/50

Accuracy

X/Y/Z axis positioning accuracy

mm

0.006/0.006/0.006

X/Y/Z axis repeatability accuracy

mm

0.004/0.004/0.004

A/C axis positioning accuracy

sec

5/5

A/C axis repeatability accuracy

sec

3/3

Spindle

Spindle motor power (S1/S6)

kW

30/35.4

Spindle motor torque (S1/S6)

Nm

72/85

Spindle speed

r/min

0~18000

Tool holder specifications

/

HSK A63

Tool magazine

Tool magazine structure

/

Chain tool arm magazine

Tool magazine capacity

T

40

Max. tool weight

kg

8

Max. tool length

mm

300

Max. diameter (full /adjacent empty)

mm

φ80/φ150

Others

CNC system

/

Siemens SINUMERIK ONE

Air source pressure requirement

MPa

0.6~0.8

Total electrical capacity

kW

68

Machine size(length*width*height)

mm

4300*3900*3300

Main machine weight (approx.)

KG

15000
