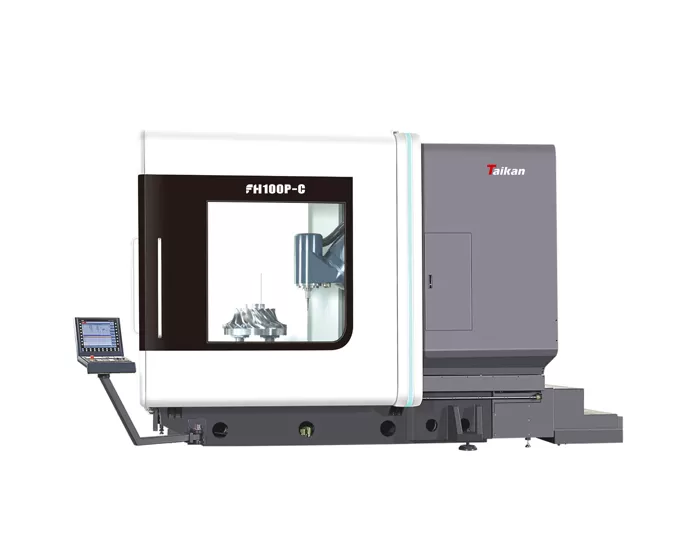

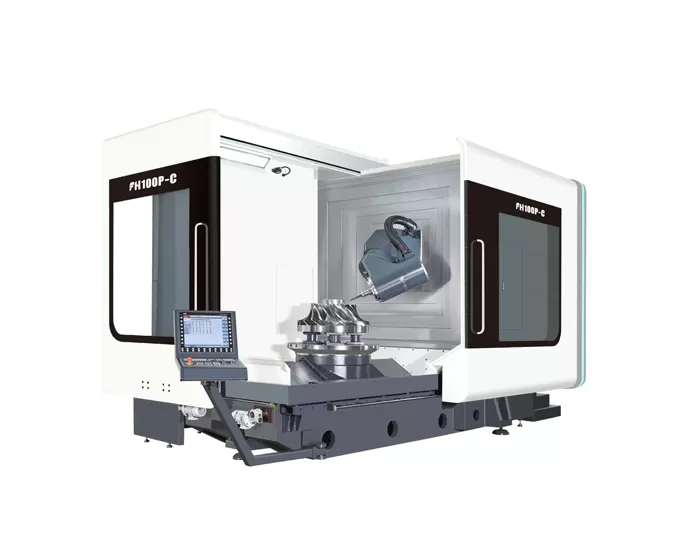

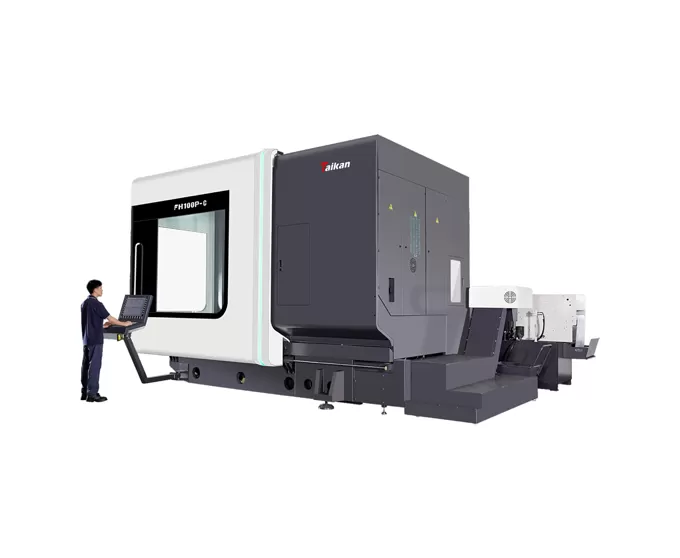

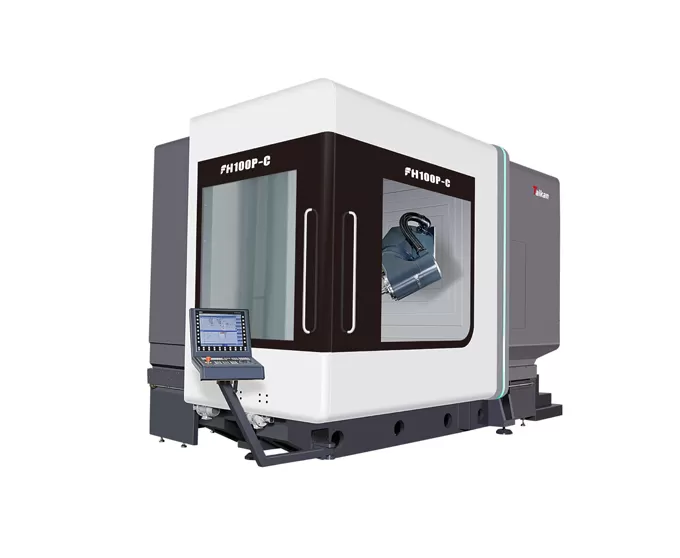

FH 100P-C 5-Axis Milling and Turning Machining Center

X/Y/Z axis travel

1000×1150×1000mm

Distance from horizontal milling head

center to working table

30~1030mm

Rotary table speed

250rpm

Working table size

φ1100mm

Max table load

Milling 4000kg

Turning 3000kg

Swing milling head (B axis)

Standard

Swing range (0=Vertical/180=Level)

-15°~ +180°

B axis rated speed

50rpm

Distance from vertical spindle nose to table

160~1160mm

Electric spindle Max. speed

10000rpm

Power（S1-100%/40%DC）

42/58kW

Torque（S1-100%/40%DC）

215/350Nm

Spindle taper

1:10 Taper

Tool interface

HSK-A100

Tool magazine capacity

40T

Max. tool diameter/length/weight

φ135mm/300mm/12kg

Tool changing time (Tool to Tool)

4s

Drilling (Normalizing medium carbon steel)

φ50mm

Tapping (Normalizing medium carbon steel)

M40

Rapid traverse

40m/min

X/Y/Z positioning accuracy

0.006mm

X/Y/Z repeat positioning accuracy

0.004mm

B/C positioning accuracy

8"

B/C repeat positioning accuracy

4"

Infrared probe

Renishaw OMP60

Tool setting gauge
(Tool measuring in machining area)

Renishaw NC4F230

Machine height (Standard machine)

3650mm

Main body occupied area(L*W)

5170×3340mm

Tool magazine occupied area (L*W)

1915×1400mm

Chip conveyor occupied area (L*W)

3120×1065mm

Water tank occupied area(L*W)

1785×1355mm

Complete machine occupied area
(excluding water tank) (L*W)

6000×3750mm

Machine weight

35000kg

Control system

Siemens ONE
