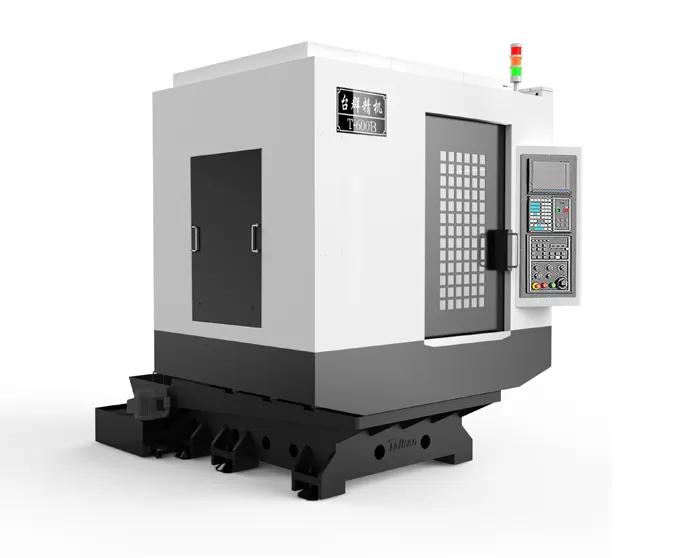

T-600B High-speed and High-precision Drilling & Milling Machining Center

Travel

Table travel (X axis)

mm

600

Saddle travel (Y axis)

mm

390

Headstock travel (Z axis)

mm

320

Distance from spindle nose to table surface

mm

140-460

Distance from spindle center to column guide surface

mm

445

Table

Table size

mm

700*400

Max. load

kg

250

T-slot (number of slots - slot width * spacing)

mm

3-18*125

Spindle

Motor power (rated/short time)

kW

3.7/5.5

Motor torque (rated/short time)

N.m

14.1/21

Spindle motor speed

rpm

20-20000

Spindle taper

/

BT30

Speed

Cutting feed speed range

mm/min

1-15000

X/Y/Z axis rapid traverse speed

m/min

48/48/48

Accuracy

Positioning accuracy (X/Y/Z)

mm

0.006

GB/T 18400.4

（Full travel）

Repeatability (X/Y/Z)

mm

0.004

Tool magazine

Tool storage capacity

pcs

21

Max. tool weight

kg

3

Max. tool length

mm

300

Max. tool diameter (full /adjacent empty)

mm

Ф60/Ф80

Other

CNC system

Mitsubishi M80VA

Air source

Flow

L/min

≥200（ANR）

Air pressure

MPa

0.6-0.8

Equipment capacity

kVA

15

Max. coolant tank capacity

L

145

Machine size

mm

1880*2660*2310

Corresponding to X*Y*Z axis

Weight (approx.)

kg

3100
