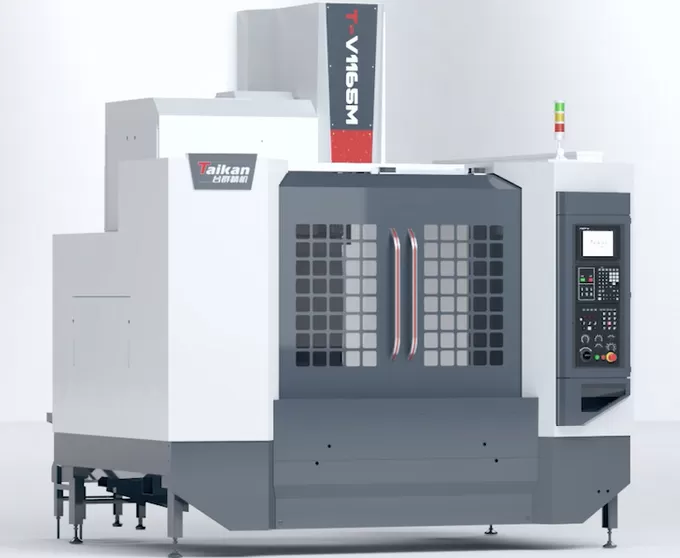

T-V1165M High-speed and High-rigidity Vertical Machining Center

Travel

Table travel (X axis)

mm

1100

Saddle travel (Y axis)

mm

650

Headstock travel (Z axis)

mm

600

Distance from spindle nose to table surface

mm

150～750

Distance from spindle center to column guide surface

mm

718

Worktable

Table size

mm

1200*650

Max. load (even load-bearing)

kg

1000

T-slot (number of slots - slot width * spacing)

mm

5-18*100

Spindle

Motor power (rated/short time)

kW

11/15

Motor torque (rated/short time)

N.m

52.5/118

Speed range

r/min

50~8000（belt）

Spindle diameter

mm

φ150

Spindle taper

/

BT40

Rivet specifications

/

P40T-I（MAS403）

Speed

Cutting feed speed range

mm/min

1-10000

X/Y/Z axis rapid traverse speed

m/min

36/36/30

Accuracy

Positioning accuracy (X/Y/Z)

mm

0.01

GB/T18400.4（Full travel）

Repeatability (X/Y/Z)

mm

0.007/0.007/0.008

Tool magazine

Tool capacity

pcs

24

Max. tool weight

kg

7

Max. tool length

mm

250

Max. tool diameter (full /adjacent empty)

mm

Φ75/Φ150

Others

Z-axis counterweight

/

Nitrogen balance

CNC system

/

Mitsubishi M80VB

Air source

Flow

L/min

≥280（ANR)

Air pressure

MPa

0.6~0.8

Equipment capacity

KVA

25

Coolant tank capacity

L

300

Machine size

mm

2700*3480*2970

Corresponding to X*Y*Z axis

Weight (approx.)

Kg

7200
