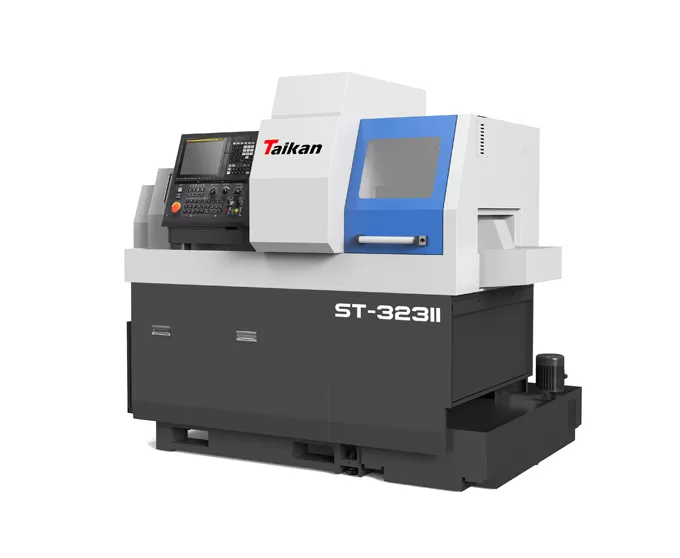

ST-323Ⅱ High-precision CNC Slitting Lathe

Max. Processing Diameter

Ø32

Max. Processing Length

240mm

Front Drilling Diameter

Max. Ø13

Front Thread Processing

Max. M8

Max. Spindle Through Hole Diameter

33mm

System Device

Mitsubishi E80

Spindle Speed

Max.8000r/min

Max. Drilling Diameter for Side Milling

Max. Ø13

Max. Tapping Diameter for Side Milling

Max. M8 (Copper)

Max. Speed for Side Milling

Max.5000r/min

Turning Tool

6*□16

Side Milling Driven Tool Holder

1*ER20＋3*ER16

(incl. 2 quick-change units)

End Fixed Tool Holder

4*ER16

Movement Speed

X:20/Y:32/Z:24 m/min

Spindle Motor Power

3.7kW/5.5kW

Side Milling Motor Power

1.0kW

Feed Motor Power

1.0kW(X/Y/Z)

Total Machine Power

8kW

Total Machine Weight

2100kg
