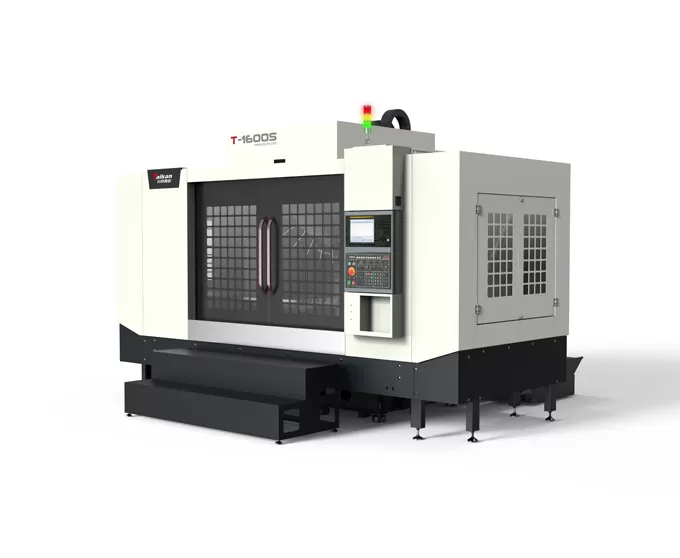

T-1600S High-speed and High-efficiency Wheel hub Machining Center

Travel

Table travel (X axis)

mm

1600

Saddle travel (Y axis)

mm

550

Headstock travel (Z axis)

mm

450

Distance from spindle nose to table surface

mm

100-550

Distance from spindle center to column guide surface

mm

632

Table

Table size

mm

1700*550

Max.  load

kg

500

T-slot (number of slots - slot width * spacing)

mm

5-18*100

Spindle

Motor power (rated/short time)

kW

3.7/5.5

Motor torque (rated/short time)

N.m

14.1/21.0

Spindle motor speed

rpm

20-20000

Spindle taper

/

BT30

Speed

Cutting feed speed range

mm/min

1-15000

X/Y/Z axis rapid traverse speed

m/min

30/36/36

Accuracy

Positioning accuracy (X/Y/Z)

mm

0.015

GB/T 18400.4（Full travel）

Repeatability (X/Y/Z)

mm

0.008

Tool magazine

Tool storage capacity

pcs

21

Max. tool weight

kg

3

Max. tool length

mm

250

Max. tool diameter (full /adjacent empty)

mm

Ф60/Ф80

Other

CNC system

Mitsubishi M80VB

Air source

Flow

L/min

≥200（ANR）

Air pressure

MPa

0.6-0.8

Equipment capacity

kVA

20

Max. coolant tank capacity

L

400

Machine size

mm

4150*3750 2950

Corresponding to X*Y*Z axis

Weight (approx.)

kg

6450
