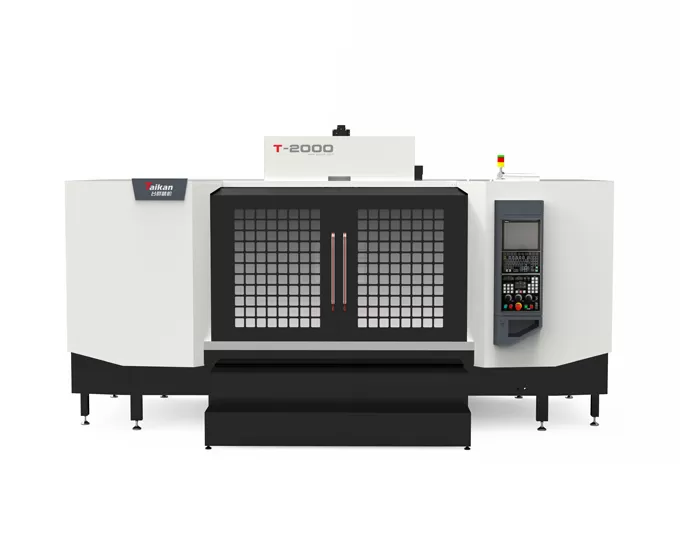

T-2000 High-speed and High-precision Drilling & Milling Machining Center

Travel

Table travel (X axis)

mm

2000

Saddle travel (Y axis)

mm

650

Headstock travel (Z axis)

mm

475

Distance from spindle nose to table surface

mm

100-575

Distance from spindle center to column guide surface

mm

707

Table

Table size

mm

2000*650

Max.  load

kg

600

T-slot (number of slots - slot width * spacing)

mm

5-18*125

Spindle

Motor power (rated/short time)

kW

3.7/5.5

Motor torque (rated/short time)

N.m

14.1/21.0

Spindle motor speed

rpm

20-20000

Spindle taper

/

BT30

Speed

Cutting feed speed range

mm/min

1-15000

X/Y/Z axis rapid traverse speed

m/min

27/36/36

Accuracy

Positioning accuracy (X/Y/Z)

mm

0.015

GB/T 18400.4（Full travel）

Repeatability (X/Y/Z)

mm

0.008

Tool magazine

Tool storage capacity

pcs

21

Max. tool weight

kg

3

Max. tool length

mm

200

Max. tool diameter (full /adjacent empty)

mm

Ф60/Ф80

Other

CNC system

/

Mitsubishi M80VB

Air source

Flow

L/min

≥200（ANR）

Air pressure

MPa

0.6-0.8

Equipment capacity

kVA

20

Max. coolant tank capacity

L

400

Machine size

mm

4800*3900(including steps 700)*2560

Corresponding to X*Y*Z axis

Weight (approx.)

kg

7850
