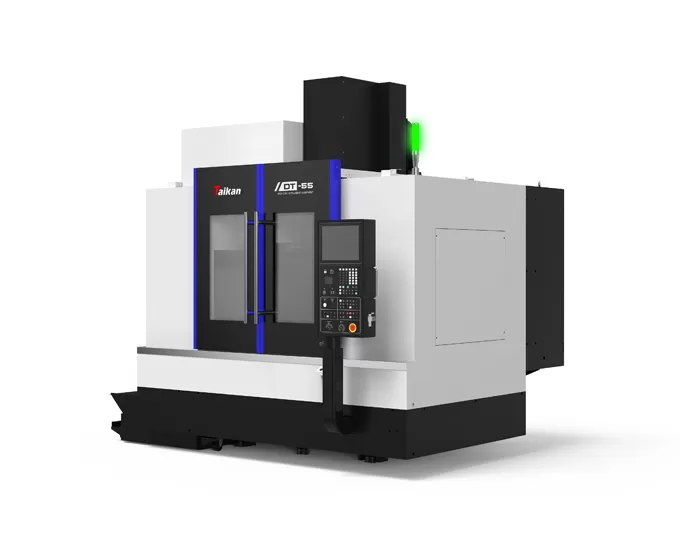

DT55 High Precision Vertical Machining Center

Travel

Table travel(X-axis)

mm

1050

Saddle travel(Y-axis)

mm

550

Spindle box travel(Z-axis)

mm

550

Distance from spindle nose to table surface

mm

120-670

Distance spindle  center to column guide surface

mm

650

Table

Table size

mm

1200*500

Table loading

kg

800

T-SLOT(QTY-Width*Space)

mm

5-18*100

Spindle

Motor power (S1/S6)

kW

11/18.5

Motor torque (S1/S6) (rated/short-time）

N.m

52.5/118

Rotary speed

r/min

50~12000（direct）

Spindle diameter

mm

Ф150

Spindle tapper

/

BBT40

Drive

Motor power X/Y/Z

kW

3.0/3.0/3.0

Speed

X/Y/Z axis rapid speed

m/min

48/48/48

Accuracy

Position accuracy（X/Y/Z）

mm

0.006/0.006/0.006

VDI 3441

Repeatability（X/Y/Z）

mm

0.004/0.004/0.004

Tool magazine

Tool capacity

T

30

Max. weight

kg

8

Max. length

mm

350

Max. allowable torque

Nm

≤10.19

Max. diameter(full/adjacent)

mm

Ф80/Ф150

Others

CNC system

/

FANUC 0i MF PLUS

Gas source

Flow

L/min

≥280（ANR）

Air pressure

MPa

0.6-0.8

Equipment capacity

KVA

25

Machinery size

mm

3148*2926*2935

Corresponding X*Y*Z axis

Machine weight(approx.)

kg

6000
