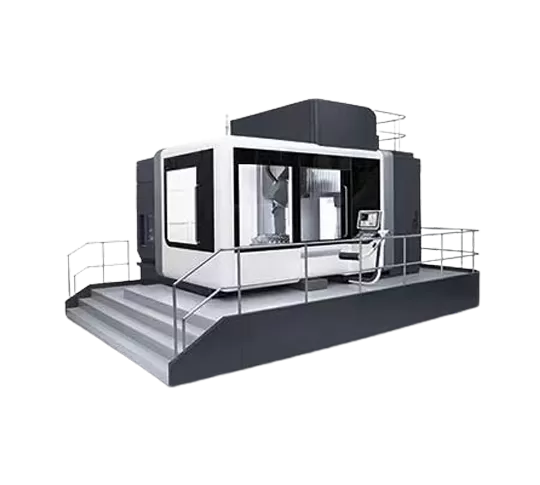

FH-210P 5-Axis Milling and Turning Machining Center

X/Y/Z axis travel

2100×2100×1300mm

Distance from horizontal milling head

center to working table

130~1430mm

Rotary table speed

30rpm

Working table size

φ1800mm

Max table load

Milling 8000kg

Swing milling head (B axis)

Standard

Swing range (0=Vertical/180=Level)

-15°~ +180°

B axis rated speed

50rpm

Distance from vertical spindle nose to table

236~1536mm

Electric spindle Max. speed

10000rpm

Power（S1-100%/40%DC）

48/71kW

Torque（S1-100%/40%DC）

300/452Nm

Spindle taper

1:10 Taper

Tool interface

HSK100A

Tool magazine capacity

40T

Max. tool diameter/length/weight

φ135mm/300mm/12kg

Tool changing time (Tool to Tool)

4s

Drilling (Normalizing medium carbon steel)

φ50mm

Tapping (Normalizing medium carbon steel)

M40

Rapid traverse

40m/min

X/Y/Z positioning accuracy

0.012mm

X/Y/Z repeat positioning accuracy

0.01mm
