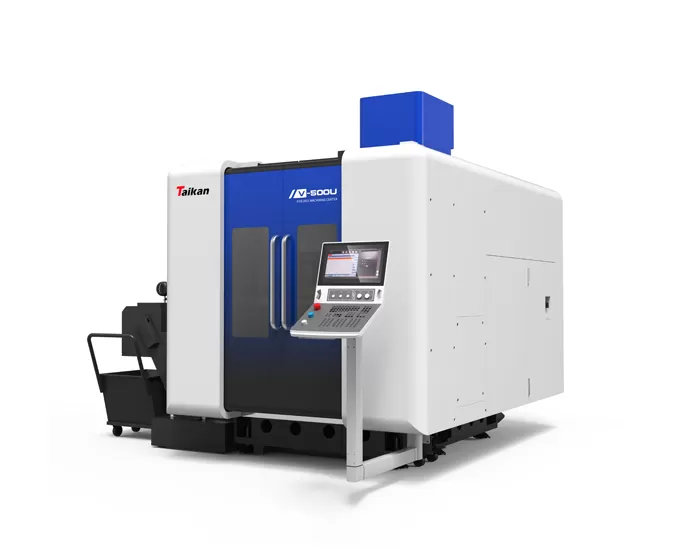

Name: V-500U Vertical 5-Axis Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of V-500U Vertical 5-Axis Machining Center

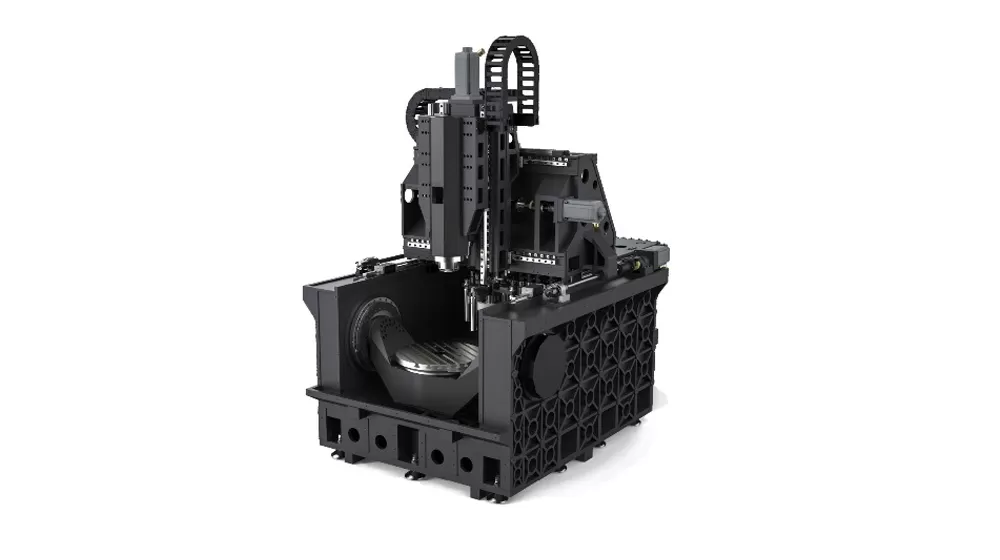

Moving Beam Gantry Structure

The distance between the spindle and the crossbeam is short, allowing for independent operation of the three axes and high overall rigidity.
The Y-axis features a dual-ball screw, dual-drive design, ensuring optimal dynamic response performance.
The ball screws of the feed axes are designed with a hollow structure and equipped with a cooling system, effectively maintaining thermal stability.

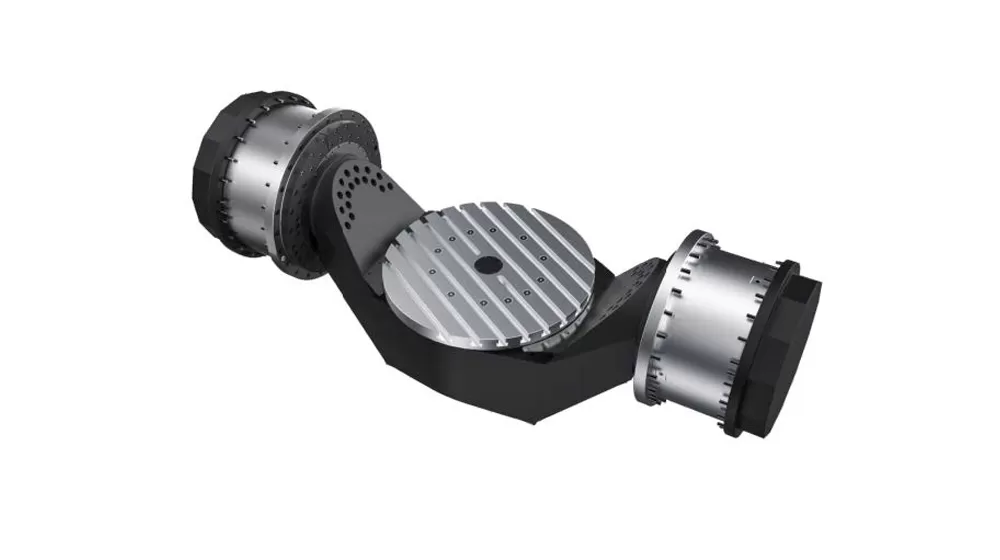

High-Precision Direct-Drive Rotary Table

The A/C axis cradle rotary table structure is independently designed, with the A-axis driven by dual-torque motors, significantly enhancing rigidity and vibration resistance.
Both the A and C axes are equipped with high-torque, frameless direct-drive motors, and the compact design integrates the motor rotor with the rotary table mechanism, offering excellent transmission rigidity.
Additionally, the motor stator is cooled with coolant to ensure the thermal stability of the rotary table.
The maximum speed of the A/C axes can reach 50 r/min.

High-Speed Motorized Spindle

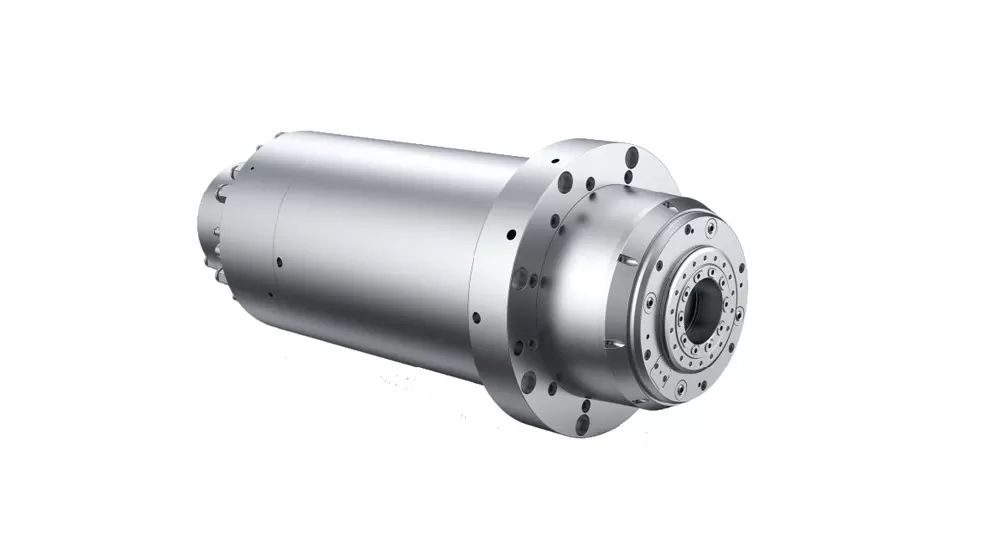

HSK A63 high-speed motorized spindle
Maximum speed up to 18,000 r/min.

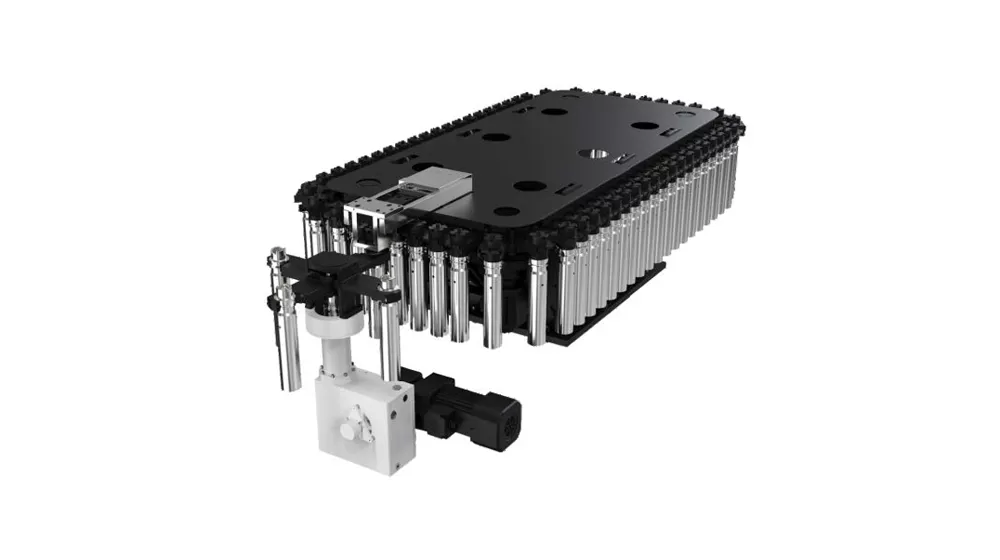

40-Tool Chain-Type Magazine

High-Precision Direct-Drive Rotary Table

Application of V-500U Vertical 5-Axis Machining Center

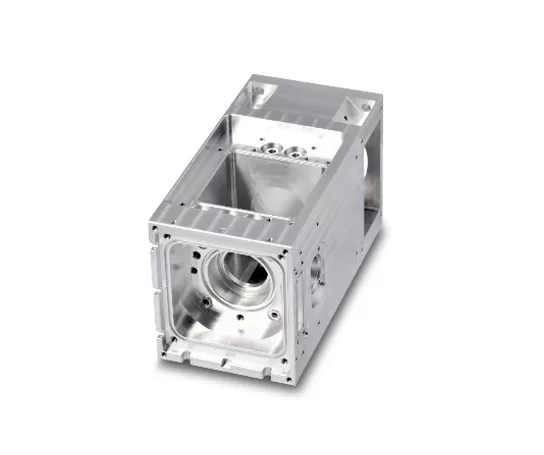

Widely used in the processing of complex parts such as impellers, aerospace, automotive components, precision molds, and medical devices.

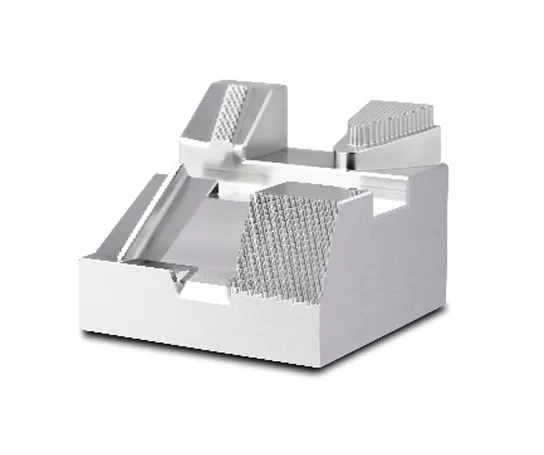

Workpiece Example 1

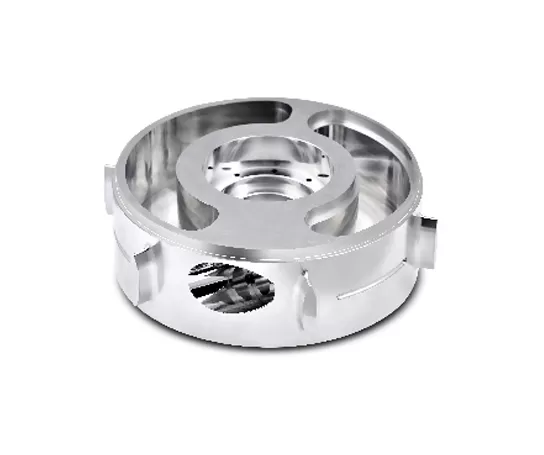

Workpiece Example 2

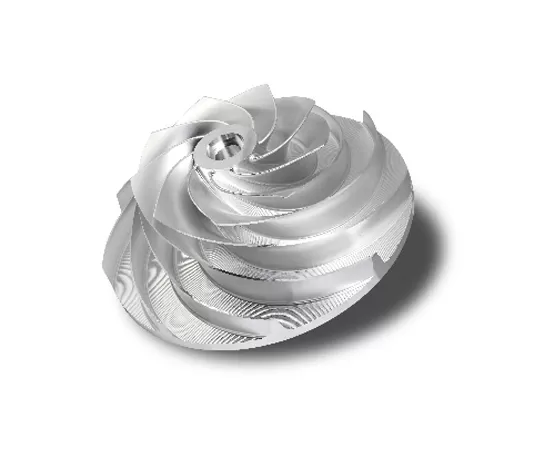

Workpiece Example 3

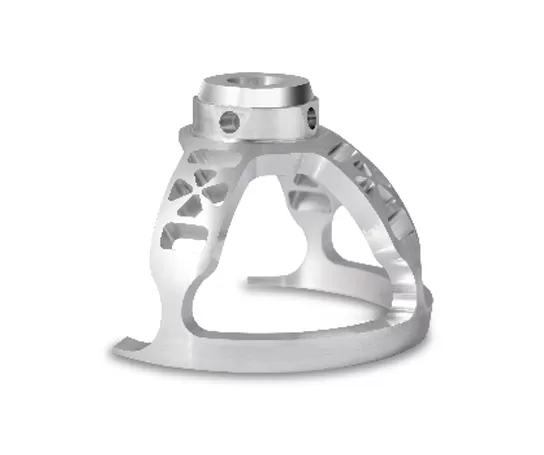

Workpiece Example 4

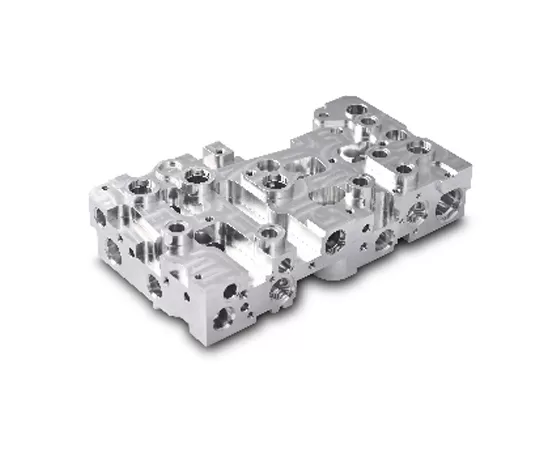

Workpiece Example 5

Workpiece Example 6

Workpiece Example 7

Specifications of V-500U Vertical 5-Axis Machining Center

Item		Unit	V-500U
Travel	X/Y/Z travel	mm	500/650/450
	A axis rotation range	°	±120
	C axis rotation range	°	360
	Distance from spindle nose to worktable surface	mm	150-600
Table	Table size	mm	Φ500x445
	Max. load	kg	300
	T-slot (number of slots - slot width * spacing)	mm	7-18*65
Speed	X/Y/Z axis rapid traverse speed	mm/min	36000
Speed	A/C axis rapid traverse rotation speed	r/min	50/50
Accuracy	X/Y/Z axis positioning accuracy	mm	0.006/0.006/0.006
	X/Y/Z axis repeatability accuracy	mm	0.004/0.004/0.004
	A/C axis positioning accuracy	sec	5/5
	A/C axis repeatability accuracy	sec	3/3
Spindle	Spindle motor power (S1/S6)	kW	30/35.5
	Spindle motor torque (S1/S6)	Nm	47.7/57.3
	Spindle speed	r/min	0~20000
	Tool holder specifications	/	HSK A63
Tool magazine	Tool magazine structure	/	Chain tool arm magazine
	Tool magazine capacity	T	40
	Max. tool weight	kg	8
	Max. tool length	mm	300
	Max. diameter (full /adjacent empty)	mm	φ80/φ150
Others	CNC system	/	Siemens SINUMERIK ONE
	Air source pressure requirement	MPa	0.6~0.8
	Total electrical capacity	kW	50
	Machine size(lengthwidthheight)	mm	415038002850
	Main machine weight (approx.)	KG	11000

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
