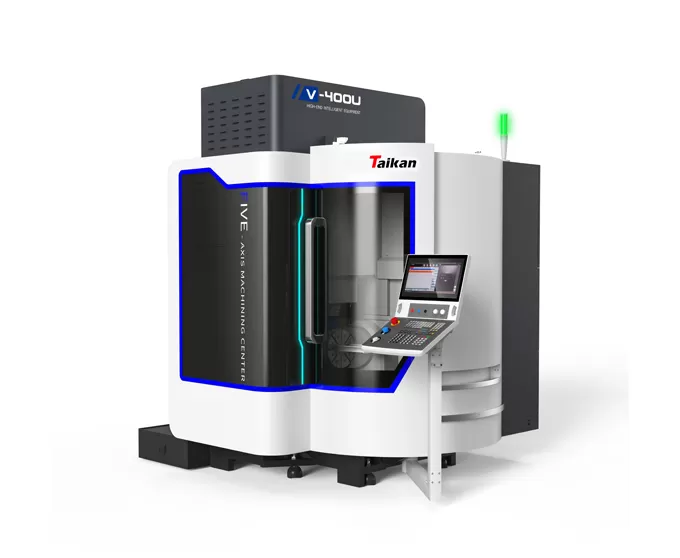

Name: V-400U Vertical 5-Axis Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of V-400U Vertical 5-Axis Machining Center

High-Rigidity Structure

High rigidity gantry-type O-shaped structure, high-quality gray cast iron material: Provides strong rigidity and stability, reducing deformation and improving accuracy.
Step-type arrangement of the beam's guide rails, short distance from the spindle to the beam: Enhances rigidity and improves machining accuracy.
Single-arm rotary table, minimized distance from the X-axis drive point to the machining point: Reduces vibration, improving precision and efficiency.

High-Precision Direct-Drive Rotary Table

High-torque frameless direct-drive motors: Provide high rigidity and precision, directly driving the B/C axes, reducing mechanical losses.
Compact structure, motor rotor integrated with the rotary mechanism: Improves stability and accuracy.
Motor stator cooled by coolant: Ensures thermal stability, reducing precision errors caused by temperature changes.
Maximum speed of B/C axes: 50r/min: Meets the demands of complex machining and improves efficiency.

High-Speed Motorized Spindle

HSK E50 high-speed motorized spindle.
Maximum speed up to 24,000 rpm.

24-tool umbrella magazine

High-Precision Direct-Drive Rotary Table

Application of V-400U Vertical 5-Axis Machining Center

Widely used in the processing of impellers, automotive parts, precision molds, medical devices, and other complex components.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 5

Workpiece Example 6

Workpiece Example 7

Specifications of V-400U Vertical 5-Axis Machining Center

Item		Unit	V-400U
Travel	Travel X/Y/Z	mm	700/450/400
	B axis rotation range	°	+30°~ -120°
	C axis rotation range	°	360°
	Distance from spindle nose to worktable surface	mm	100-500
Table	Table size	mm	Φ420
	Max. load	kg	150
	T-slot (number of slots - slot width * spacing)	mm	8-14*45°(Evenly distributed)
Speed	X/Y/Z axis rapid traverse speed	mm/min	24000
Speed	B/C axis rapid traverse rotation speed	r/min	50/50
Accuracy	X/Y/Z axis positioning accuracy	mm	0.006/0.006/0.006
	X/Y/Z axis repeatability accuracy	mm	0.004/0.004/0.004
	B/C axis positioning accuracy	sec	5/5
	B/C axis repeatability accuracy	sec	3/3
Spindle	Spindle motor power (S1/S6)	kW	16/19.4
	Spindle motor torque (S1/S6)	Nm	28/34
	Spindle speed	r/min	0~24000
	Tool holder specifications	/	HSK E50
Tool magazine	Tool magazine structure	/	Umbrella tool magazine
	Tool magazine capacity	T	24
	Max. tool weight	kg	2
	Max. tool length	mm	200
	Max. diameter (full /adjacent empty)	mm	φ50/φ100
Others	CNC system	/	Siemens SINUMERIK ONE
	Air source pressure requirement	MPa	0.6~0.8
	Total electrical capacity	kW	42
	Machine size(lengthwidthheight)	mm	360042003200
	Main machine weight (approx.)	KG	7800

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
