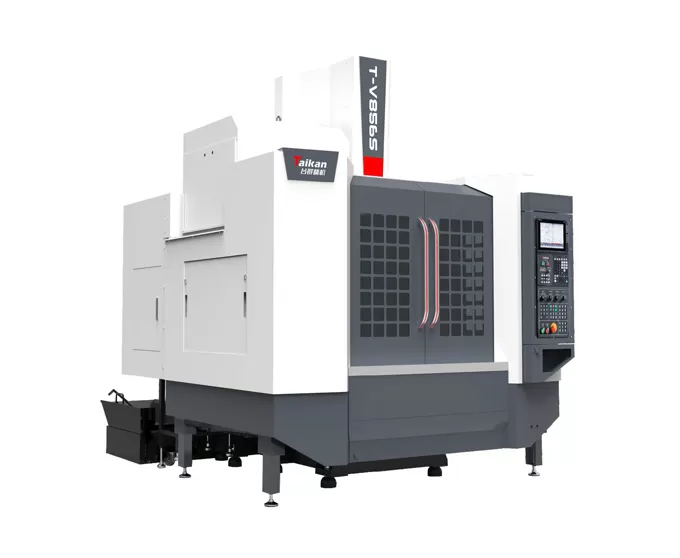

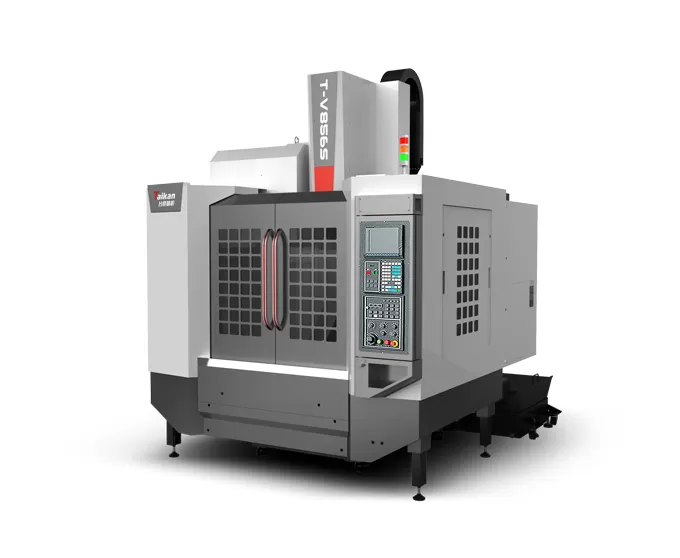

Name: T-V856S High-speed and High-efficiency Vertical Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristics of T-V856S High-speed and High-efficiency Vertical Machining Center

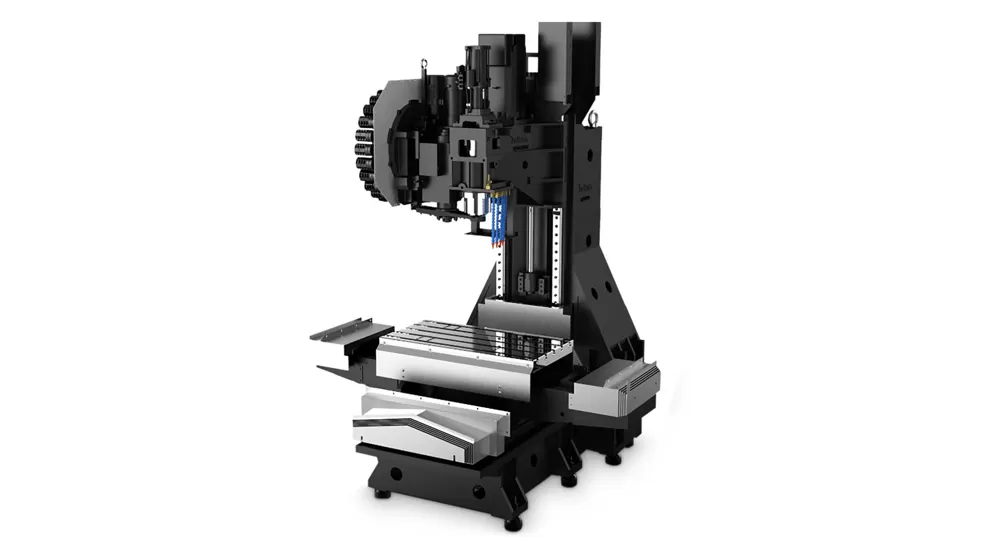

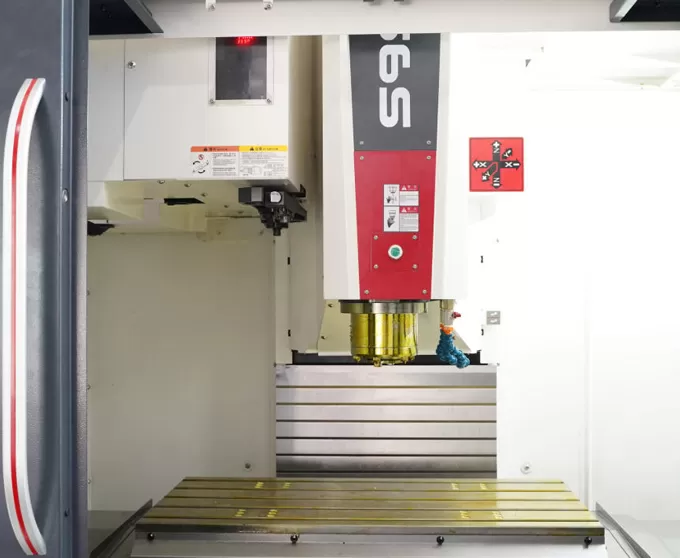

Machine Structure

Fixed column, cross-type sliding table: This design provides solid support and is suitable for high-speed cutting.

Large, stable base, high-rigidity, wide-span A-shaped column: Reduces vibration and deformation, ensuring high rigidity.

High-quality resin sand molding, high-strength cast iron: Ensures the machine's rigidity and stability, reduces deformation, and maintains long-term precision.

Guideways and Ball Screws

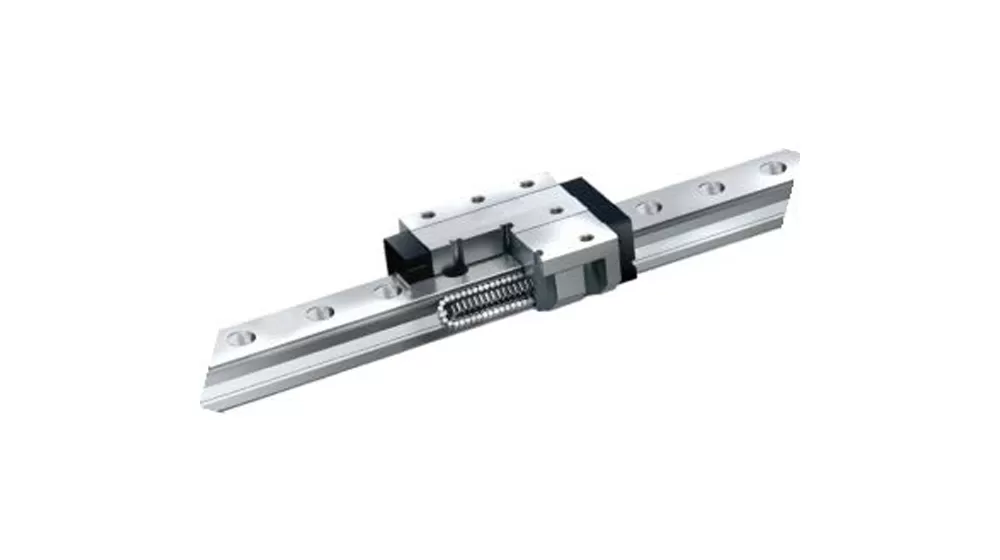

Roller linear guides: High rigidity, low friction, and low noise.

C3-class ball screws, pre-tension structure: Reduces thermal expansion effects, provides more stable precision, and the self-lubricating bearings extend the service life.

machining.

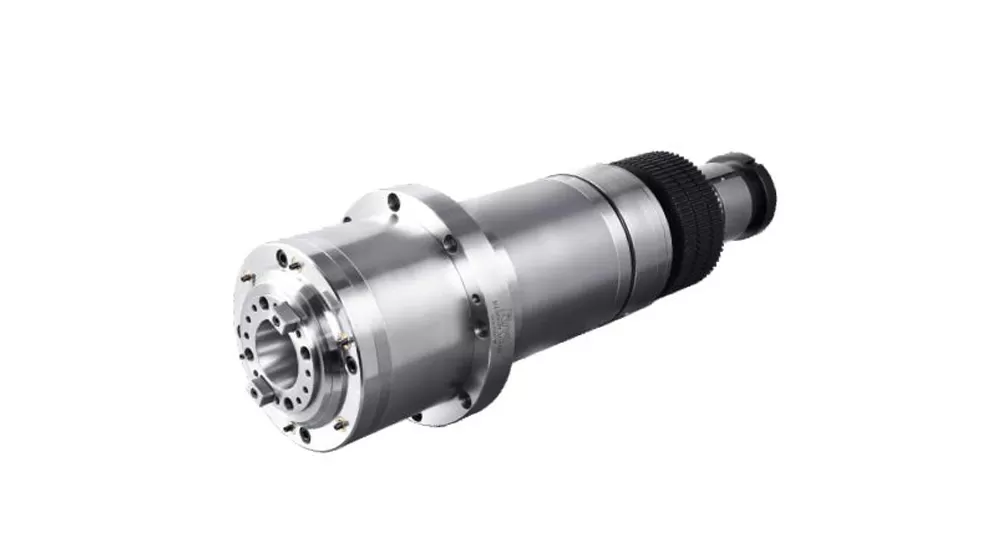

Spindle

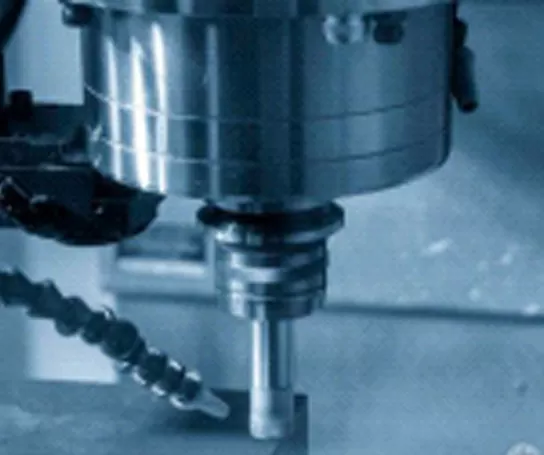

High-speed spindle (BT40-12000r/min): Equipped with a direct connection head, the spindle front features a labyrinth design with an air curtain protection to prevent coolant from entering the spindle bearings.

Tool Magazine

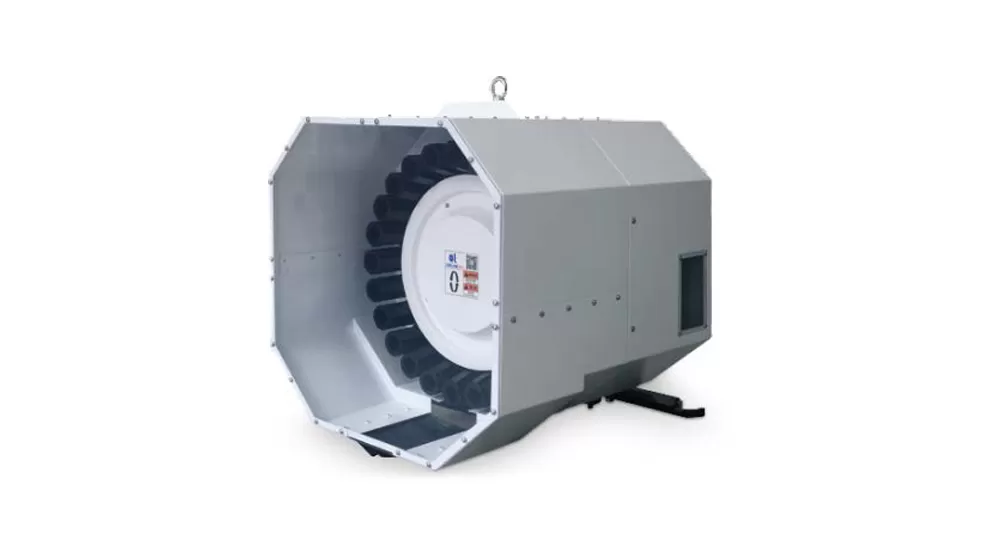

24-pocket arm-type tool magazine: Good stability, reliable tool changes, and ensures continuous.

Application of T-V856S High-speed and High-efficiency Vertical Machining Center

The machine tool is suitable for the multi-variety, small-batch processing of complex parts such as medium and small-sized box-shaped components, plates, disks, valves, housings, and molds. It is widely used in industries such as precision parts, 5G products, hardware, automotive parts, and medical devices.

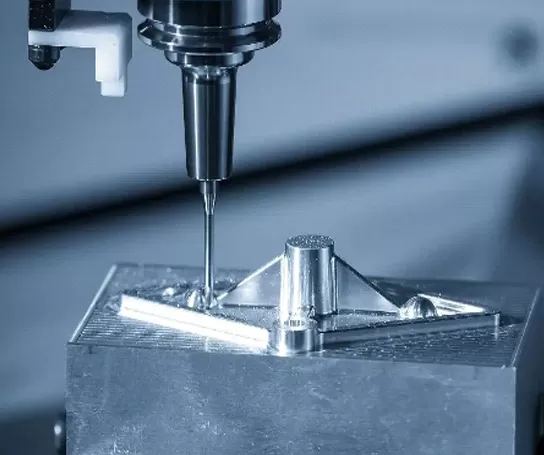

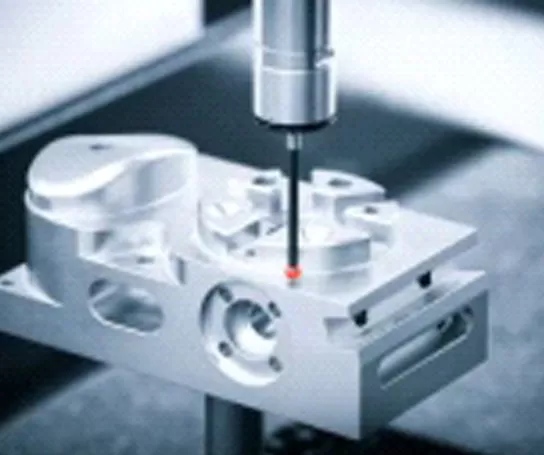

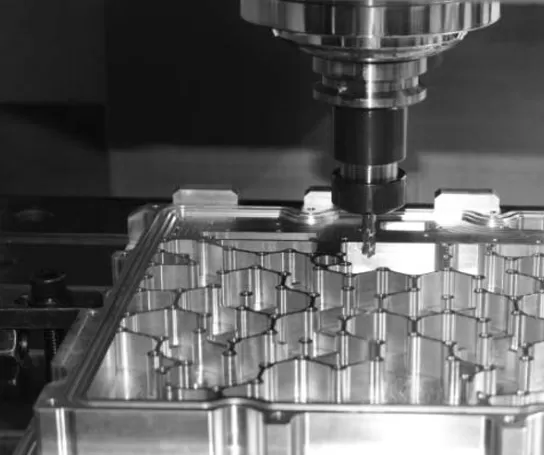

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of T-V856S High-speed and High-efficiency Vertical Machining Center

Item			Unit	T-V856S	Remarks
Travel	Table travel (X axis)		mm	800
	Saddle travel (Y axis)		mm	550
	Headstock travel (Z axis)		mm	600
	Distance from spindle nose to table surface		mm	125～725
	Distance from spindle center to column guide surface		mm	590
Worktable	Table size		mm	1000*500
	Max. load (even load-bearing)		kg	500
	T-slot (number of slots - slot width * spacing)		mm	5-18*100
Spindle	Motor power (rated/short time)		kW	7.5/11
	Motor torque (rated/short time)		N.m	35.8/95.5
	Speed range		r/min	50~12000 (Directly coupled)
	Spindle diameter		mm	φ150
	Spindle taper		/	BBT40
	Rivet specifications		/	P40T-I（MAS403）
Speed	Cutting feed speed range		mm/min	1-10000
	X/Y/Z axis rapid traverse speed		m/min	48/48/48
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.008	GB/T18400.4（Full travel）
	Repeatability (X/Y/Z)		mm	0.005
Tool magazine	Tool capacity		pcs	24
	Max. tool weight		kg	7
	Max. tool length		mm	250
	Max. tool diameter (full /adjacent empty)		mm	Φ75/Φ150

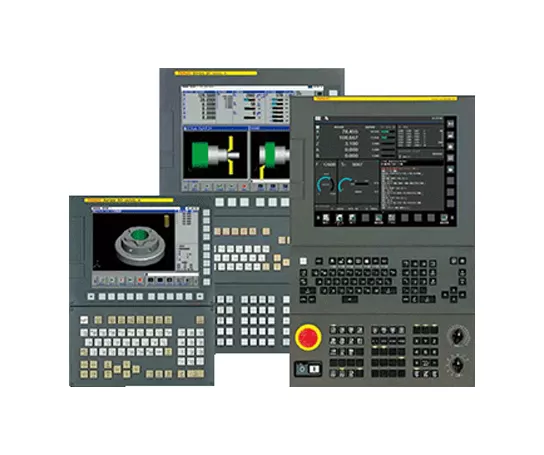

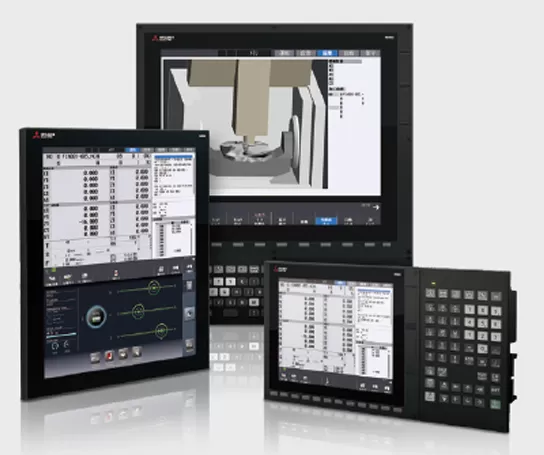

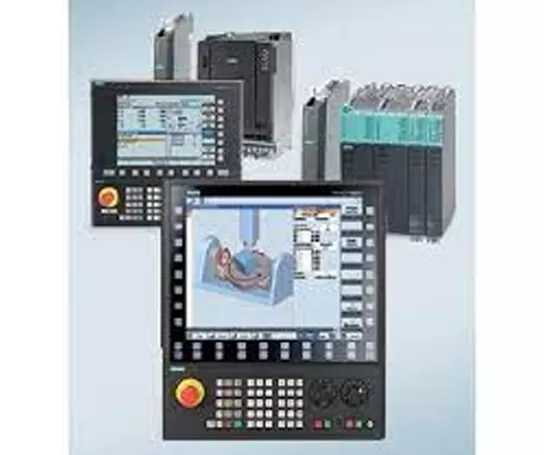

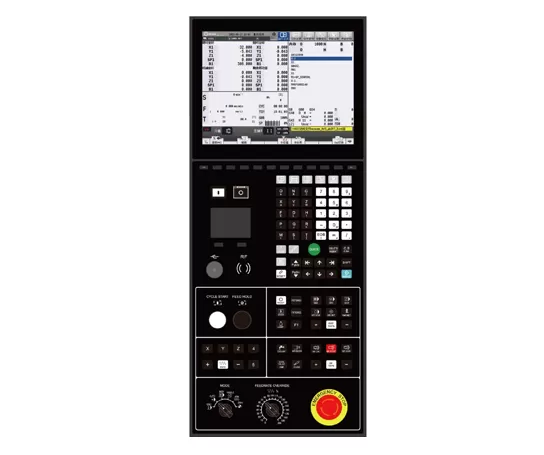

Others	CNC system		/	Mitsubishi M80VB
	Air source	Flow	L/min	≥280（ANR)
		Air pressure	MPa	0.6~0.8
	Equipment capacity		KVA	25
	Coolant tank capacity		L	300
	Machine size		mm	224031213026	Corresponding to XYZ axis
	Weight (approx.)		Kg	4600

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
