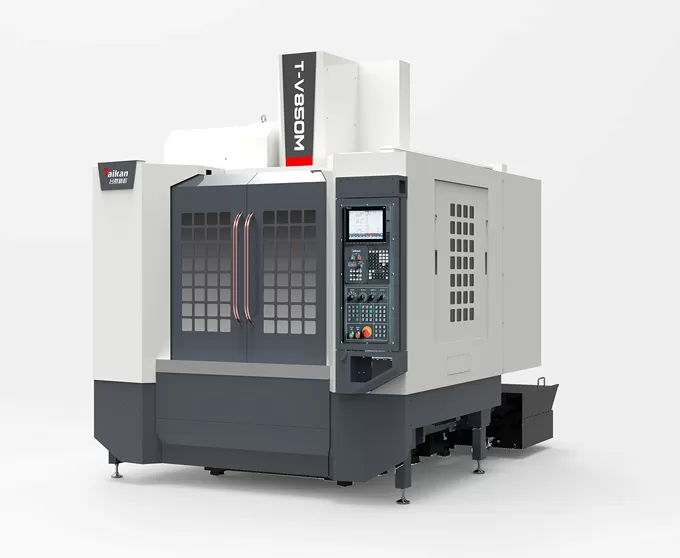

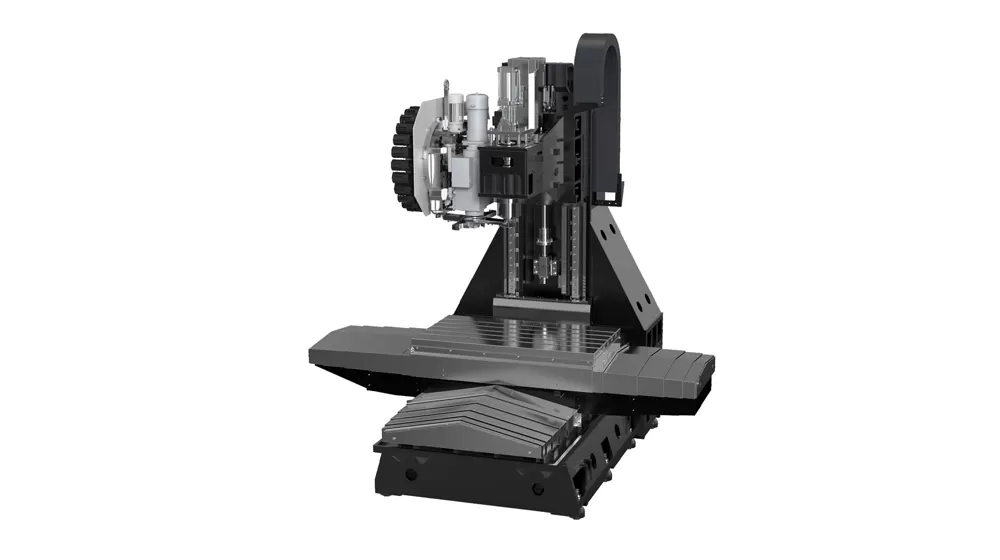

Name: T-V850M High-speed and High-rigidity Vertical Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristics of T-V850M High-speed and High-rigidity Vertical Machining Center

High-Rigidity Stable Structure

Fixed-column cross-slide design with an oversized, stable base and high-rigidity, wide-span A-frame column ensures vibration-free and deformation-resistant high-speed machining.

Major structural components are made of high-strength cast iron, providing exceptional rigidity and stability.

High-Precision Feed Axes

All three axes utilize roller linear guides, offering high rigidity, low friction, and low noise, significantly improving transmission accuracy.

Ball screws are equipped with pre-tension structures to mitigate thermal expansion effects, and self-lubricating bearings extend their service life.

Taikan High-Speed Spindle Unit

BT40-8000r/min belt-driven spindle designed to support high-speed machining.

The spindle front end features a labyrinth design with air curtain protection, effectively preventing coolant from entering the bearings, enhancing durability and reliability.

Taikan 24-Tool Arm-Type Tool Magazine

The tool magazine boasts reliable quality, stable performance, and efficient tool changes to meet the requirements of multi-process machining.

Application of T-V850M High-speed and High-rigidity Vertical Machining Center

This machine is particularly suitable for the small to medium batch processing of complex parts such as small to medium-sized boxes, plates, discs, valves, housings, and molds. It is widely used in industries such as precision parts, 5G products, hardware, automotive components, and medical devices.

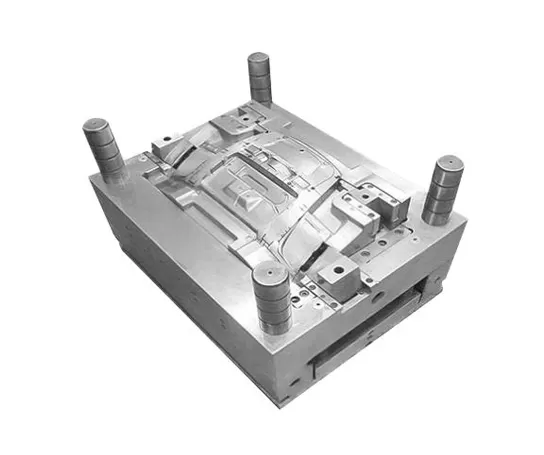

Workpiece Example 1

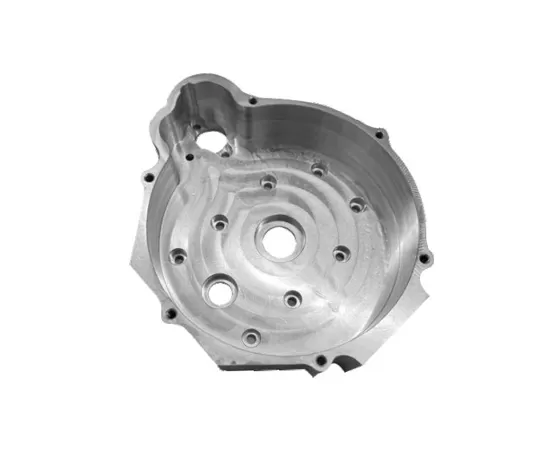

Workpiece Example 2

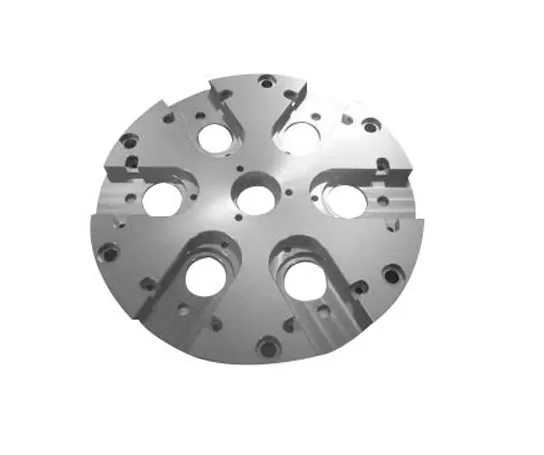

Workpiece Example 3

Specifications of T-V850M High-speed and High-rigidity Vertical Machining Center

Item			Unit	T-V850M	Remarks
Travel	Table travel (X axis)		mm	850
	Saddle travel (Y axis)		mm	550
	Headstock travel (Z axis)		mm	550
	Distance from spindle nose to table surface		mm	150～700
	Distance from spindle center to column guide surface		mm	613
Worktable	Table size		mm	1000*550
	Max. load (even load-bearing)		kg	600
	T-slot (number of slots - slot width * spacing)		mm	5-18*100
Spindle	Motor power (rated/short time)		kW	11/15
	Motor torque (rated/short time)		N.m	52.5/118
	Speed range		r/min	50~8000（belt）
	Spindle diameter		mm	φ150
	Spindle taper		/	BT40
	Rivet specifications		/	P40T-I（MAS403）
Speed	Cutting feed speed range		mm/min	1-10000
Speed	X/Y/Z axis rapid traverse speed		m/min	36/36/30
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.008	GB/T18400.4（Full travel）
Accuracy	Repeatability (X/Y/Z)		mm	0.005	GB/T18400.4（Full travel）
Tool magazine	Tool capacity		pcs	24
	Max. tool weight		kg	7
	Max. tool length		mm	250
	Max. tool diameter (full /adjacent empty)		mm	Φ75/Φ150
Others	Z-axis counterweight		/	/

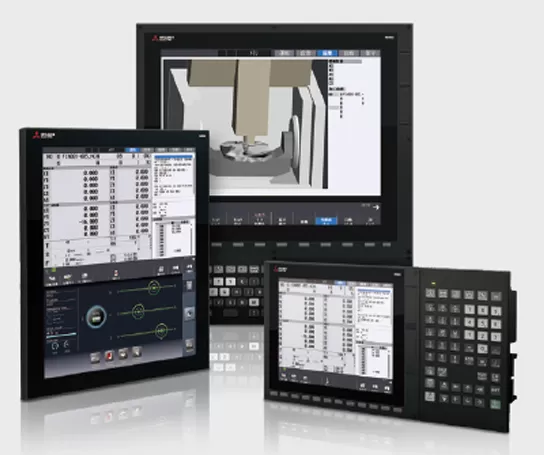

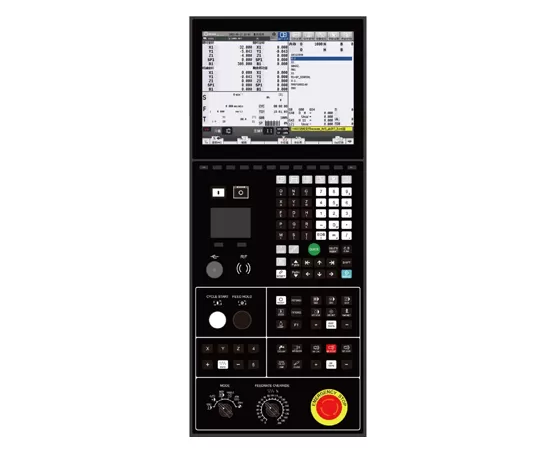

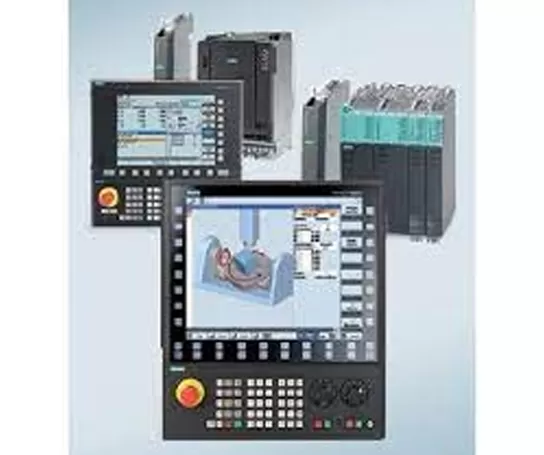

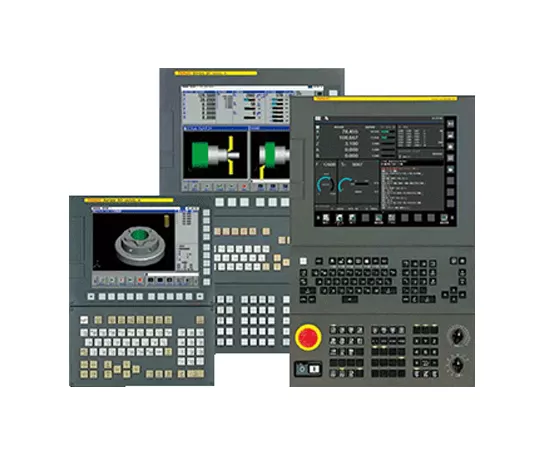

	CNC system		/	Mitsubishi M80VB
	Air source	Flow	L/min	≥280（ANR)
	Air source	Air pressure	MPa	0.6~0.8
	Equipment capacity		KVA	25
	Coolant tank capacity		L	300
	Machine size		mm	225031702889	Corresponding to XYZ axis
	Weight (approx.)		Kg	6000

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
