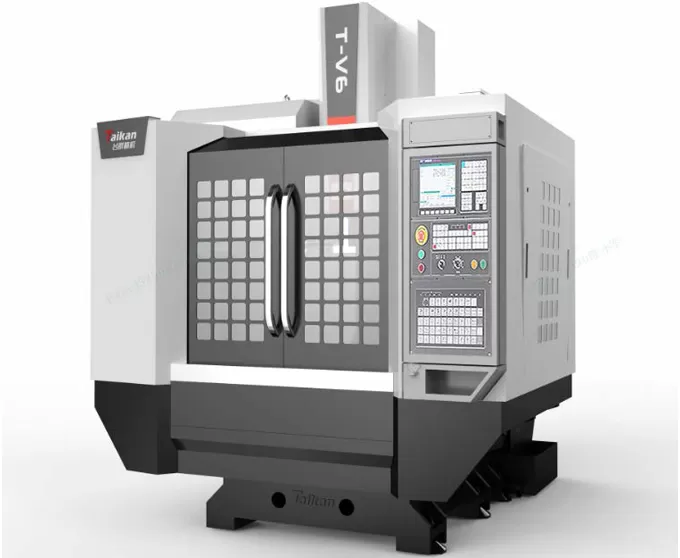

Name: T-V6 Light Cutting Vertical Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristics of T-V6 Light Cutting Vertical Machining Center

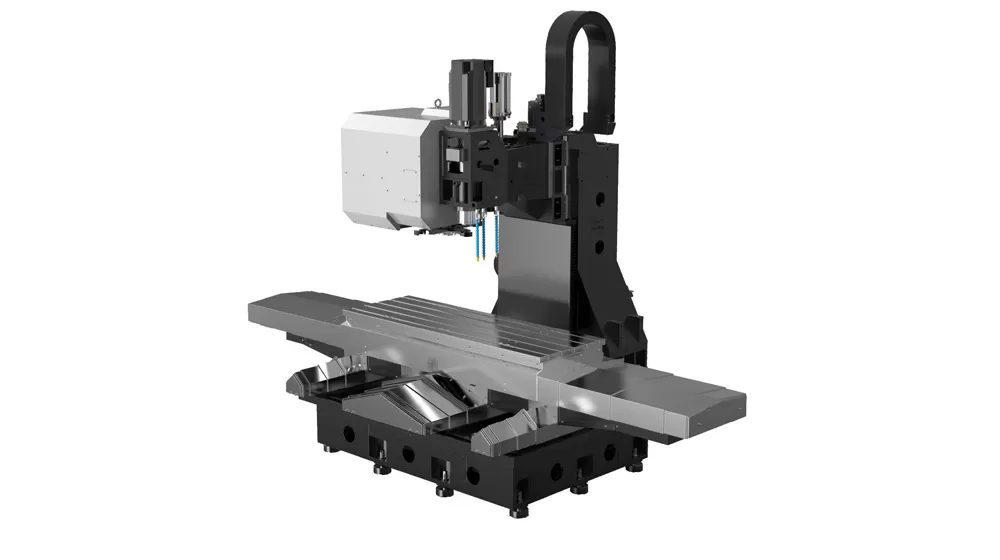

High Stability Base

The base structure, designed through digital analysis and special design, features an oversized span with six-point support, significantly enhancing the machine's rigidity and vibration resistance, ensuring stability throughout the machining process. The main large components are cast from high-strength cast iron materials using high-quality resin sand molding, providing excellent rigidity and precision stability for the machine.

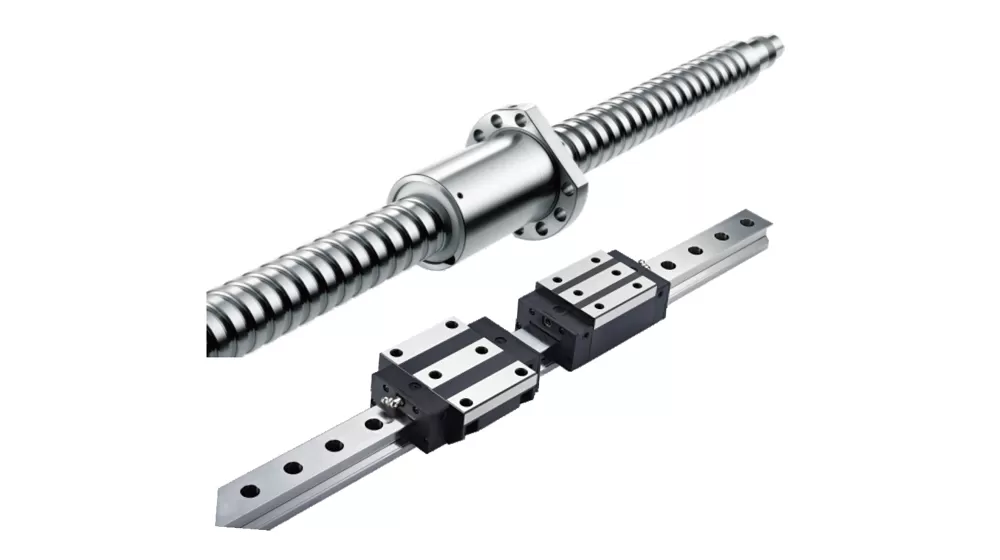

High-Precision Feed Axes

All three axes are equipped with ball linear guides, offering high rigidity, low friction, and strong load-bearing capacity.
The Z-axis uses a brake-type servo motor combined with a counterbalance-free design, improving drive performance and achieving optimal surface precision during 3D machining.
Full stroke motion accuracy is laser-calibrated and compensated, ensuring high precision and stable calibration results.

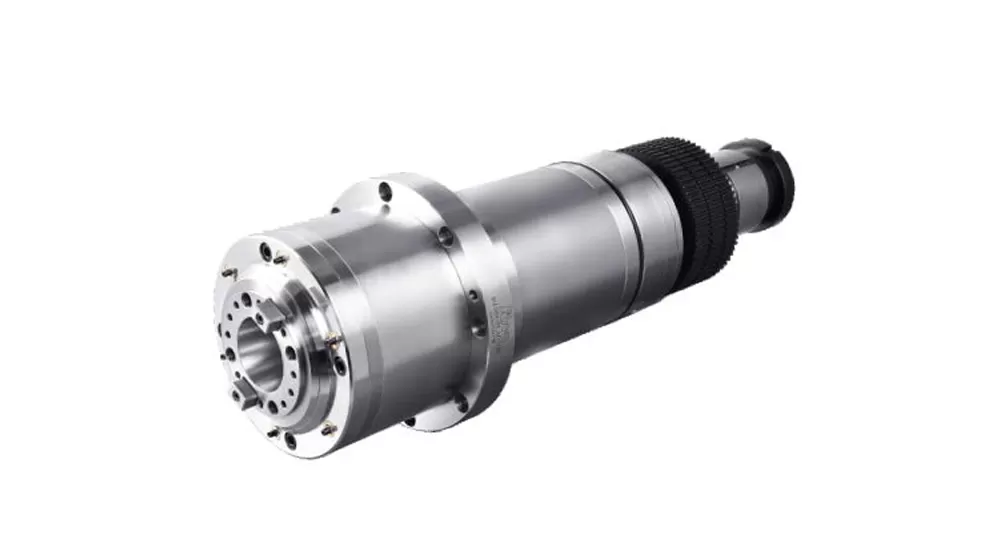

Taikan High-Speed Spindle Unit

The spindle uses a BT40-12000r/min direct-drive spindle head and is equipped with an automatic constant-temperature circulating oil cooling system, effectively reducing temperature rise and thermal deformation, while maintaining high machining precision.

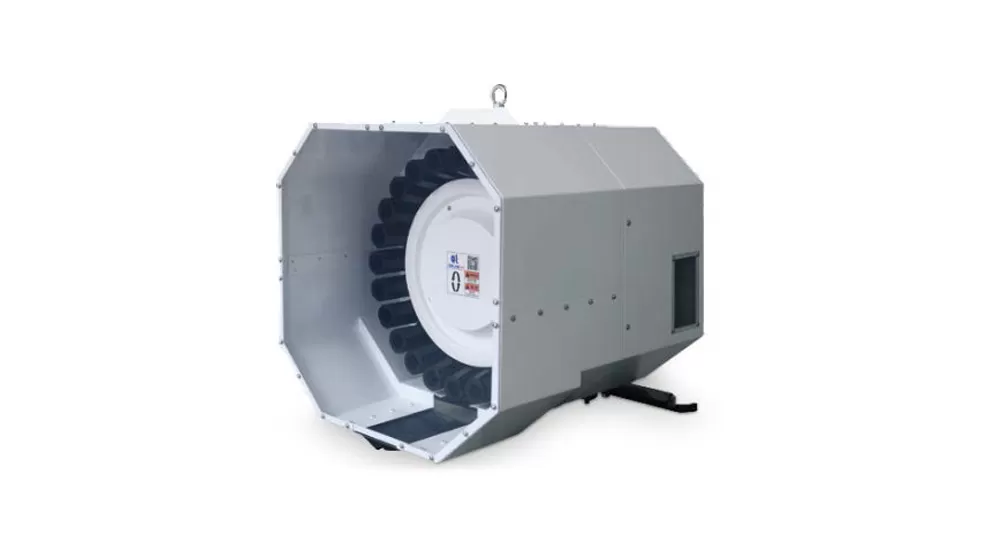

Taikan 24-Tool Arm-Type Tool Magazine

The tool magazine boasts reliable quality, stable performance, and efficient tool changes to meet the requirements of multi-process machining.

Application of T-V6 Light Cutting Vertical Machining Center

The machine tool is suitable for the multi-variety, small-batch processing of complex parts such as medium and small-sized box-shaped components, plates, disks, valves, housings, and molds. It is widely used in industries such as precision parts, 5G products, hardware, automotive parts, and medical devices.

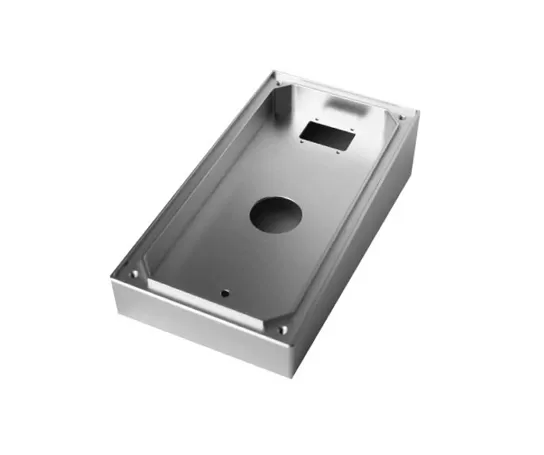

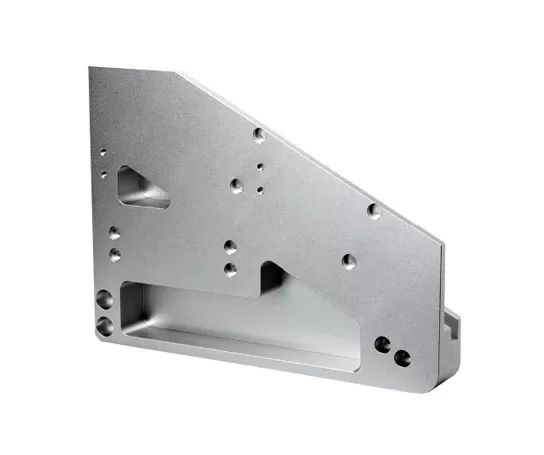

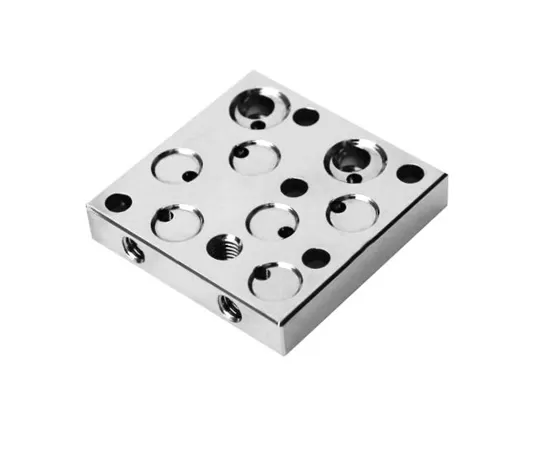

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Specifications of T-V6 Light Cutting Vertical Machining Center

Item			Unit	T-V6	Remarks
Travel	Table travel (X axis)		mm	600
	Saddle travel (Y axis)		mm	390
	Headstock travel (Z axis)		mm	450
	Distance from spindle nose to table surface		mm	190～640
	Distance from spindle center to column guide surface		mm	455
Worktable	Table size		mm	700*400
	Max. load (even load-bearing)		kg	250
	T-slot (number of slots - slot width * spacing)		mm	3-18*125
Spindle	Motor power (rated/short time)		kW	3.7/5.5
	Motor torque (rated/short time)		N.m	23.6/35
	Speed range		r/min	20～12000 (Directly coupled)
	Spindle diameter		mm	φ120
	Spindle taper		/	BT40
	Rivet specifications		/	P40T-I（MAS403）
Speed	Cutting feed speed range		mm/min	1-10000
Speed	X/Y/Z axis rapid traverse speed		m/min	48/48/48
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.006	GB/T18400.4（Full travel）
Accuracy	Repeatability (X/Y/Z)		mm	0.004	GB/T18400.4（Full travel）
Tool magazine	Tool capacity		pcs	24
	Max. tool weight		kg	7
	Max. tool length		mm	250
	Max. tool diameter (full /adjacent empty)		mm	Φ75/Φ150
Others	Z-axis counterweight
	CNC system		/	Mitsubishi M80VB
	Air source	Flow	L/min	≥280（ANR)
	Air source	Air pressure	MPa	0.6~0.8
	Equipment capacity		KVA	15
	Coolant tank capacity		L	145
	Machine size		mm	2100×2580×2670	Corresponding to XYZ axis
	Weight (approx.)		Kg	3500

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
