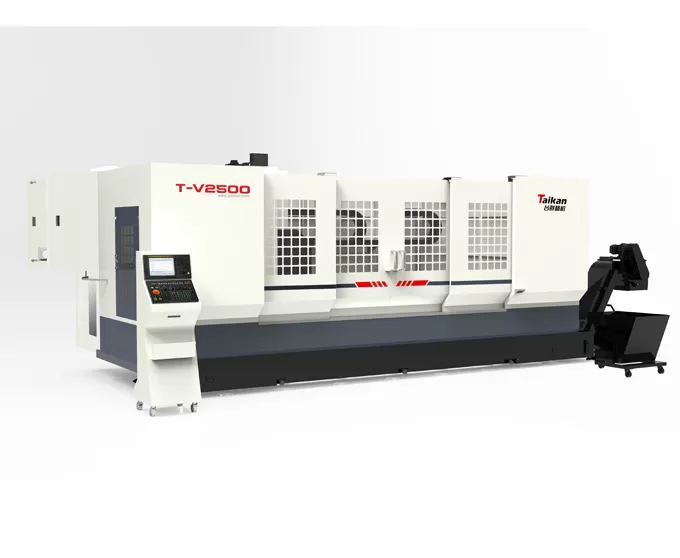

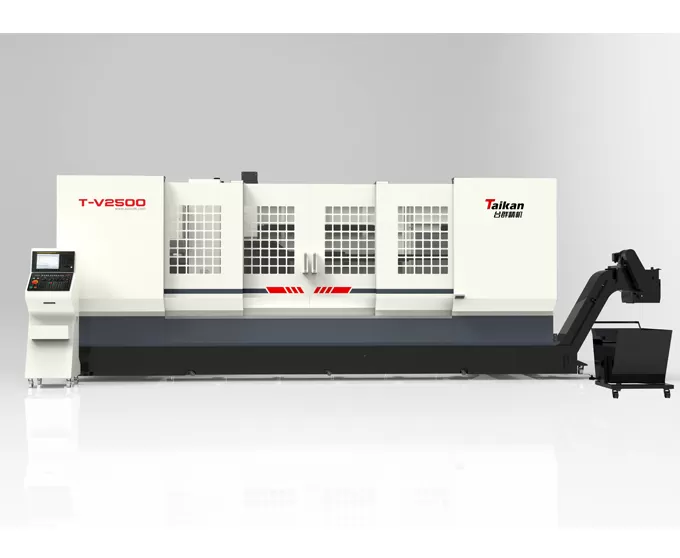

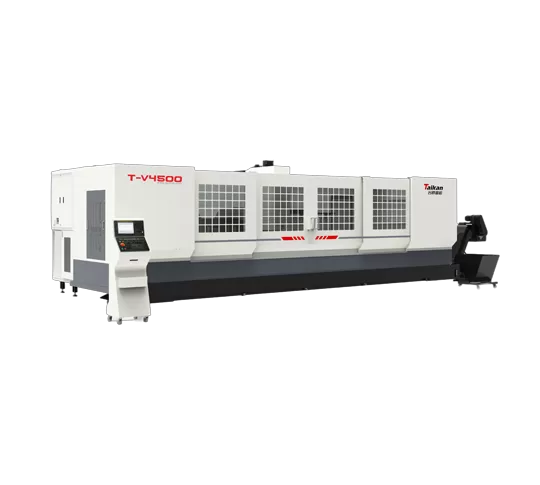

Name: T-V2500 Moving Column Profile Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristic of T-V2500 Moving Column Profile Machining Center

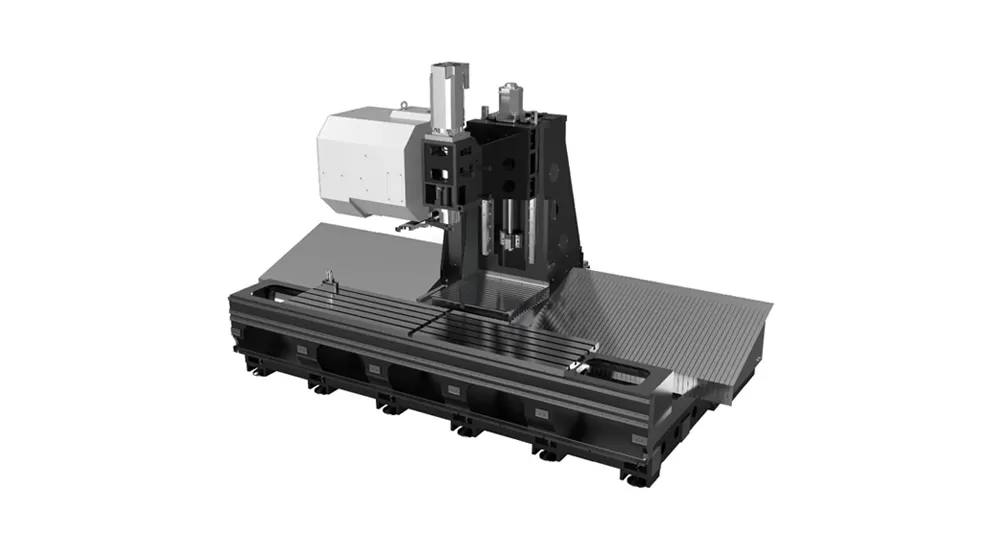

Structural Design for Long Workpieces

This machine tool features a fixed worktable and column-moving structure, specifically designed for large, narrow, and long parts, with a travel range of 2500~6500mm and 50m/min high-speed motion, meeting the high-efficiency processing needs of long workpieces.

Standard welded base, offering low cost and fast delivery, ideal for quick production setup.
Optional cast iron base, providing higher stability and vibration resistance, reducing deformation, and ensuring precision, enhancing overall performance.

High-Performance Feed System

X, Y, Z axes are equipped with high-precision ball linear guides, ensuring high-speed and high-precision feed motion.

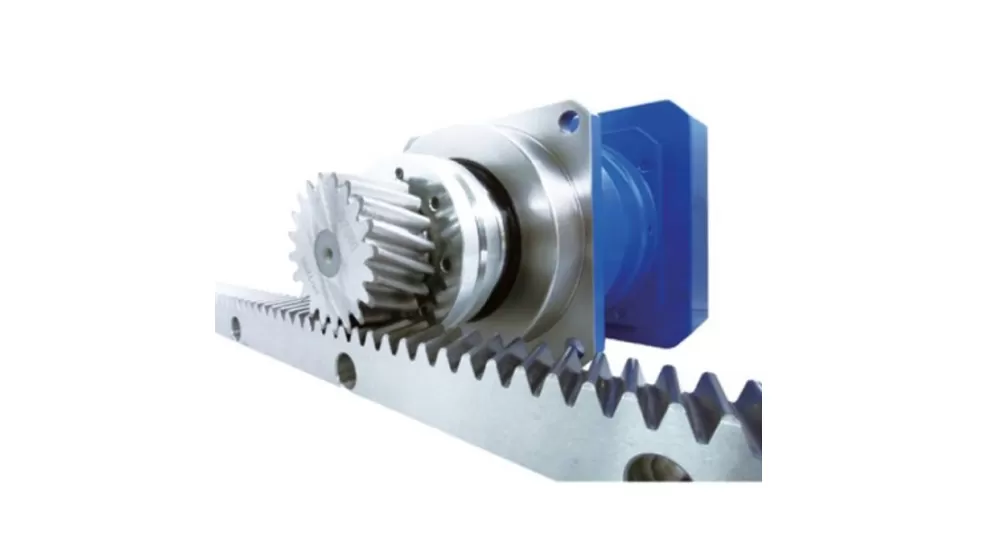

X axis uses a gear rack drive system to support high-speed motion over long travels, while also accommodating modular configurations.
Y/Z axes are driven by ball screws, offering excellent rigidity and precision, ensuring stable machining quality.

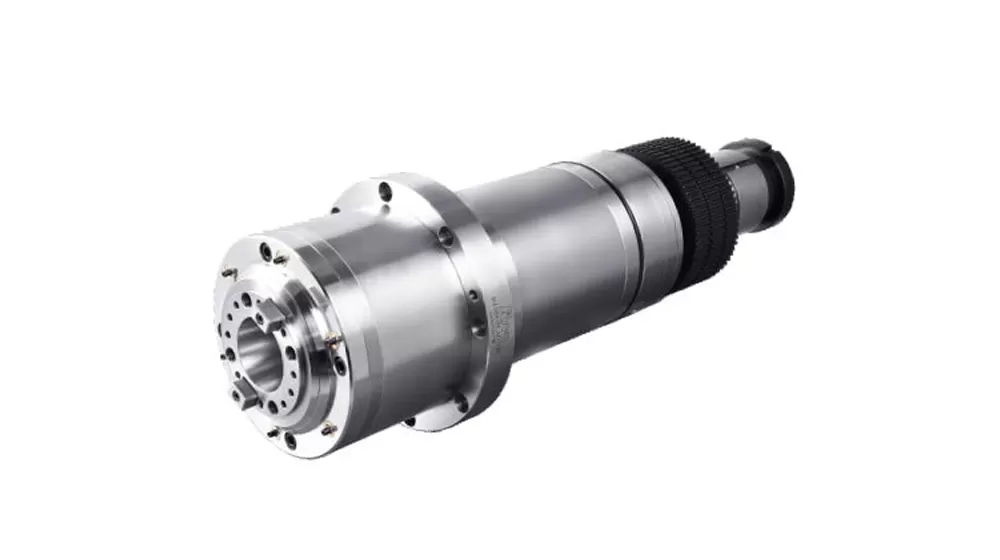

Taikan High-Speed Spindle Unit

Equipped with a BT40-12000r/min direct-drive spindle, delivering exceptional high-speed cutting performance to meet complex processing requirements.
The spindle front end features a labyrinth design and includes an air curtain protection system to effectively prevent coolant from entering the spindle bearings, extending spindle life.

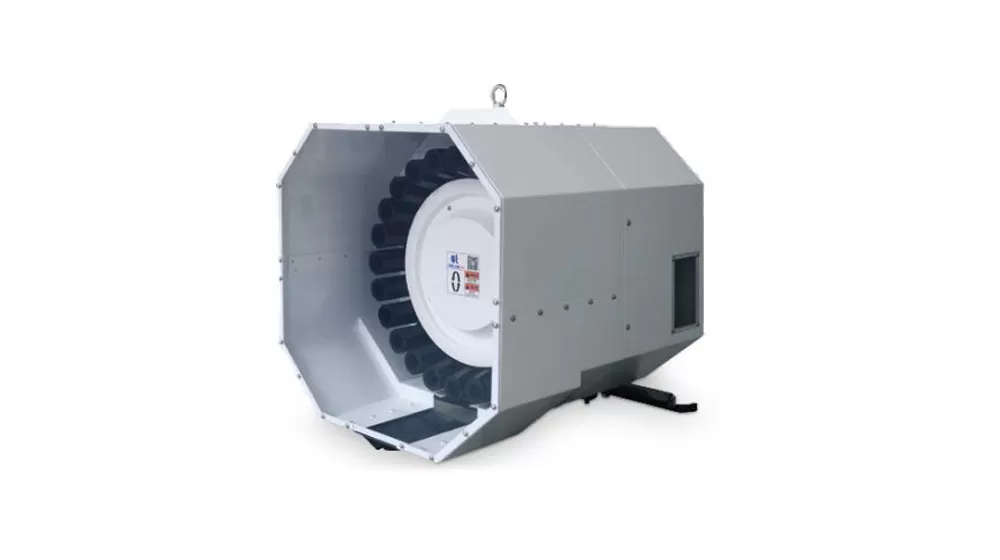

BT 40 (Disc Type Magazine)

24-Tool
Highly reliable, stable in performance, and supports rapid tool changes to improve production efficiency.

Application of T-V2500 Moving Column Profile Machining Center

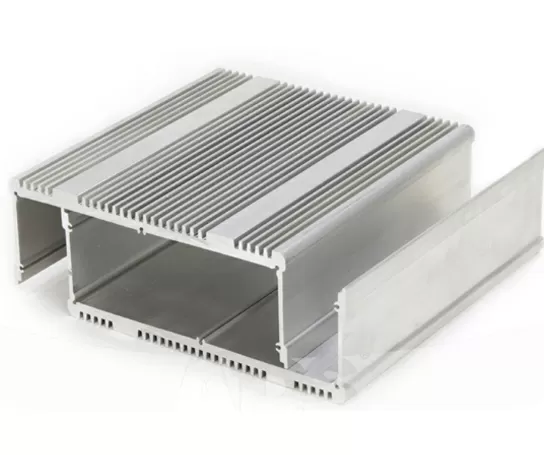

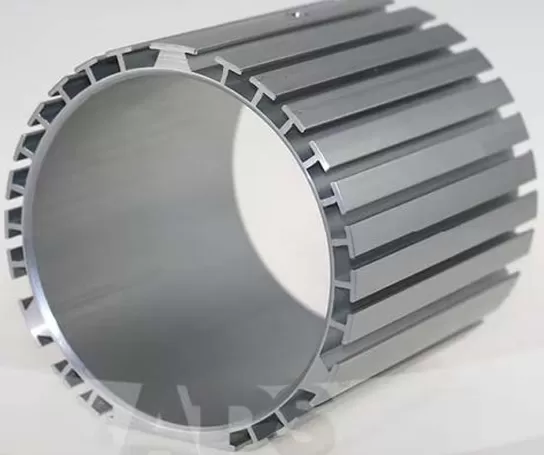

Widely used in industries such as 5G, new energy, automotive, electronics, machinery manufacturing, and home appliances, it is suitable for mass processing of installation holes, drainage grooves, lock holes, shaped holes, and other features on narrow and long aluminum profiles.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 1

Workpiece Example 2

Workpiece Example 1

Workpiece Example 2

Specifications of T-V2500 Moving Column Profile Machining Center

Item			Unit	T-V2500	Remarks
Travel	Table travel (X axis)		mm	2500
	Saddle travel (Y axis)		mm	550
	Headstock travel (Z axis)		mm	550
	Distance from spindle nose to table		mm	150-700
Table	Table size		mm	2500*550
	Max. load		Kg	800
	T-slot (number-width*spacing)		mm	5-18*100
Spindle	Motor power (rated/short time)		kW	7.5/11
	Motor torque (rated/short time)		N.m	35.8/95.5
	Spindle speed		rpm	20-12000
	Spindle diameter		mm	Ф150
	Spindle taper		/	BT40
Speed	Cutting feed speed range		mm/min	1-10000
Speed	X/Y/Z axis rapid traverse speed		m/min	50/28/28
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.05/0.01/0.01	GB/T 18400.4
Accuracy	Repeatability (X/Y/Z)		mm	0.03/0.008/0.008	(Full travel)
Tool magazine	Tool magazine capacity		T	24
	Max. tool weight		kg	7
	Max. tool length		mm	250
	Max. tool diameter (full /adjacent empty)		mm	Ф75/Ф150

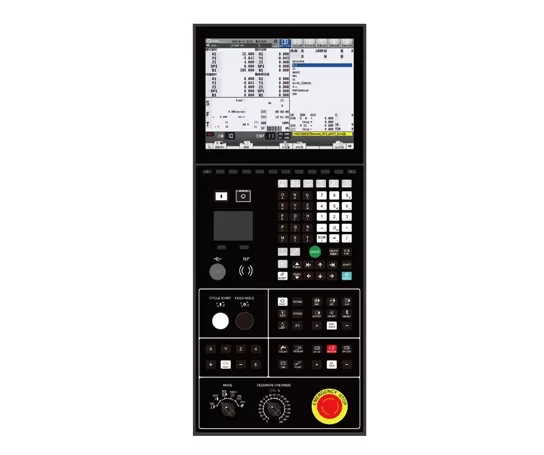

Others	CNC system		/	Mitsubishi M80VB
	Air source	Flow	L/min	≥280（ANR）
	Air source	Air pressure	MPa	0.6-0.8
	Equipment capacity		kVA	25
	Coolant tank capacity		L	350
	Machine size		mm	680032002800	Corresponding to XYZ axis
	Weight (approx.)		Kg	9000

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
