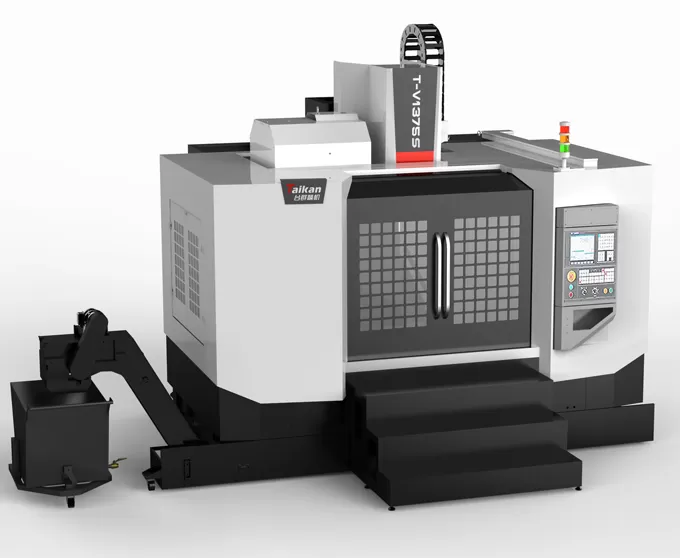

Name: T-V1375S High-speed and High-efficiency Vertical Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristics of T-V1375S High-speed and High-efficiency Vertical Machining Center

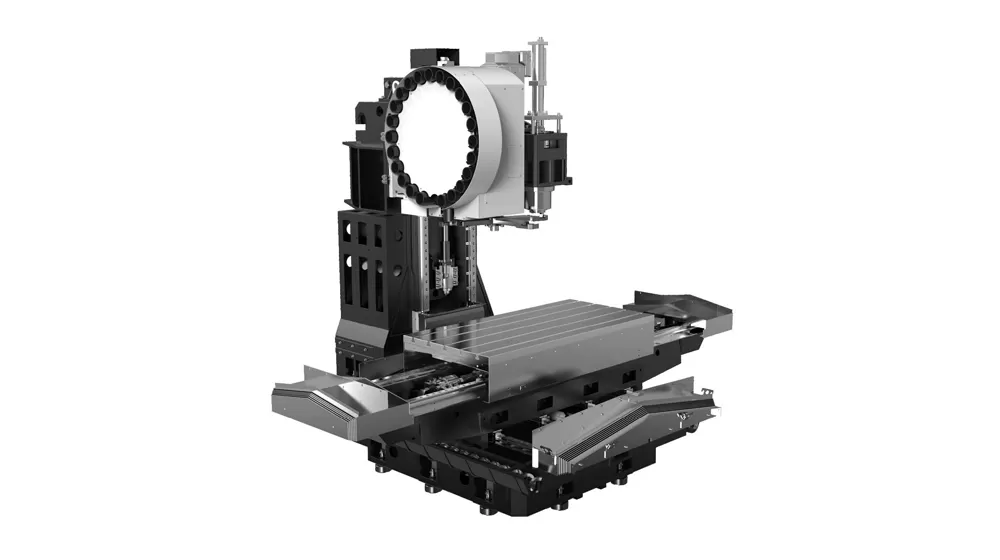

Machine Structure

Fixed column, cross-type sliding table: This design provides solid support and is suitable for high-speed cutting.

Large, stable base, high-rigidity, wide-span A-shaped column: Reduces vibration and deformation, ensuring high rigidity.

High-quality resin sand molding, high-strength cast iron: Ensures the machine's rigidity and stability, reduces deformation, and maintains long-term precision.

Guideways and Ball Screws

Roller linear guides: High rigidity, low friction, and low noise.

C3-class ball screws, pre-tension structure: Reduces thermal expansion effects, provides more stable precision, and the self-lubricating bearings extend the service life.

machining.

Spindle

High-speed spindle (BT40-12000r/min): Equipped with a direct connection head, the spindle front features a labyrinth design with an air curtain protection to prevent coolant from entering the spindle bearings.

Tool Magazine

24-pocket arm-type tool magazine: Good stability, reliable tool changes, and ensures continuous.

Application of T-V1375S High-speed and High-efficiency Vertical Machining Center

The machine tool is suitable for the multi-variety, small-batch processing of complex parts such as medium and small-sized box-shaped components, plates, disks, valves, housings, and molds. It is widely used in industries such as precision parts, 5G products, hardware, automotive parts, and medical devices.

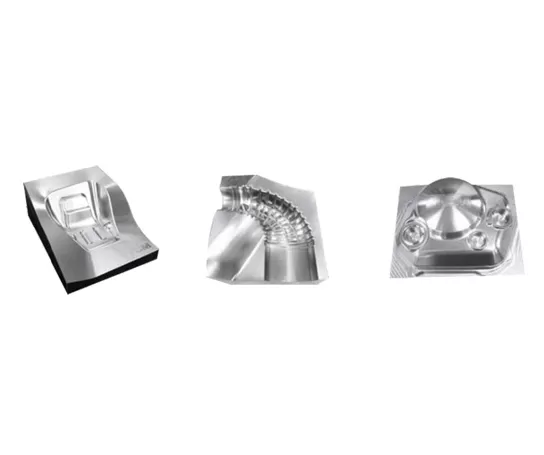

Workpiece Example 1

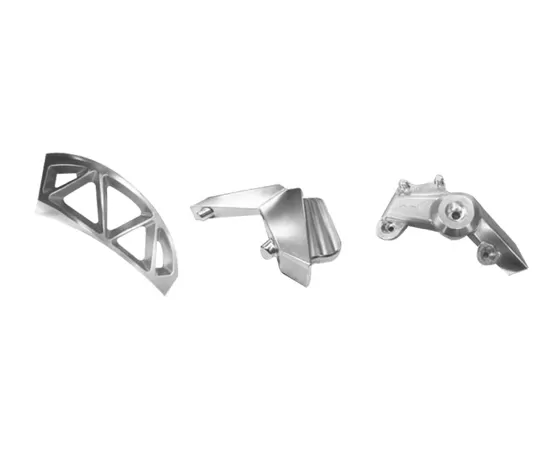

Workpiece Example 2

Specifications of T-V1375S High-speed and High-efficiency Vertical Machining Center

Item			Unit	T-V1375S	Remarks
Travel	Table travel (X axis)		mm	1350
	Saddle travel (Y axis)		mm	750
	Headstock travel (Z axis)		mm	750
	Distance from spindle nose to table surface		mm	120～870
	Distance from spindle center to column guide surface		mm	826
Worktable	Table size		mm	1500*750
	Max. load (even load-bearing)		kg	1300
	T-slot (number of slots - slot width * spacing)		mm	5-18*150
Spindle	Motor power (rated/short time)		kW	15/18.5
	Motor torque (rated/short time)		N.m	143/191
	Speed range		r/min	50～6000(belt)
	Spindle diameter		mm	Φ190
	Spindle taper		/	BT50
	Rivet specifications		/	P50T-I（MAS403）
Speed	Cutting feed speed range		mm/min	1-10000
Speed	X/Y/Z axis rapid traverse speed		m/min	24/24/20
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.015	GB/T18400.4（Full travel）
Accuracy	Repeatability (X/Y/Z)		mm	0.008	GB/T18400.4（Full travel）
Tool magazine	Tool capacity		pcs	24
	Max. tool weight		kg	15
	Max. tool length		mm	300
	Max. tool diameter (full /adjacent empty)		mm	Φ105/Φ210
Others	Z-axis counterweight			Nitrogen balance
	CNC system		/	FANUC 0i-MF Plus(5)
	Air source	Flow	L/min	280（ANR）
	Air source	Air pressure	MPa	0.6~0.8
	Equipment capacity		KVA	35
	Coolant tank capacity		L	400
	Machine size		mm	5050×3680×3440	With chip conveyor pedal
	Weight (approx.)		Kg	10500

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
