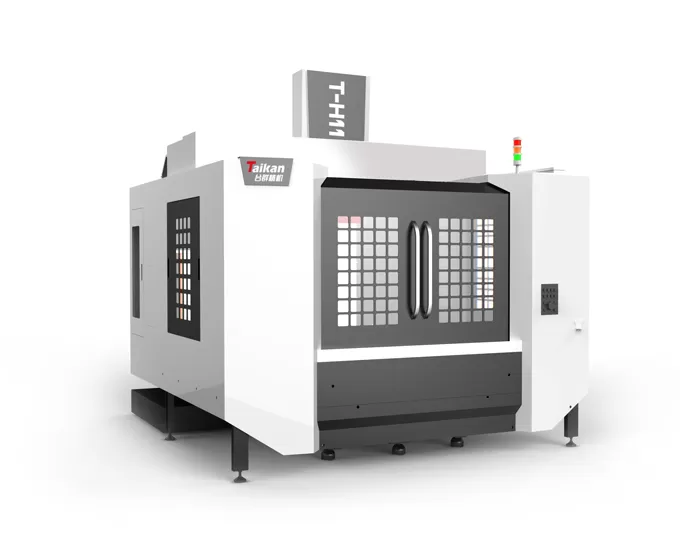

T-H11 Horizontal Machining Center

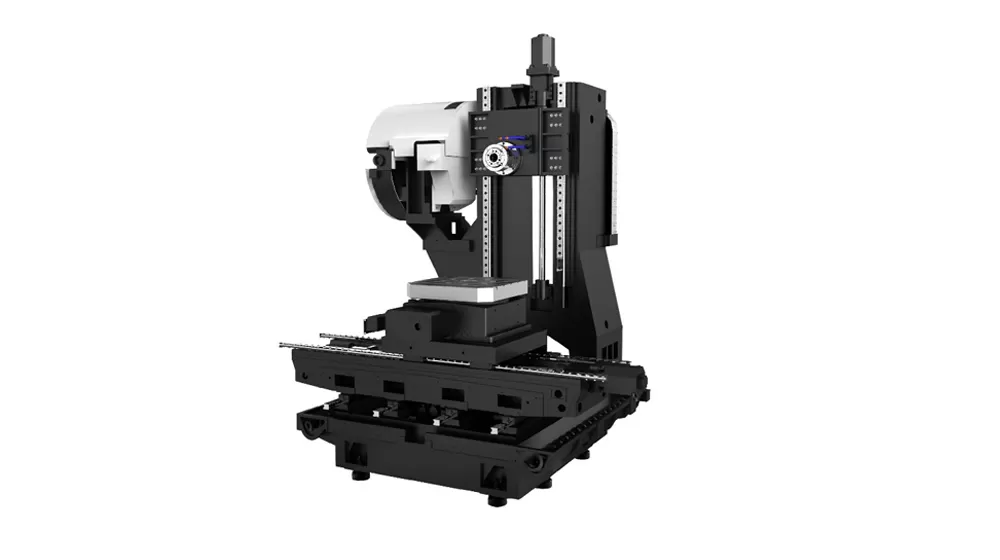

The machine features a cross slide table and a fixed column structure. It is equipped with an oversized, stable base and a high-rigidity, large-span column. Key components are made from high-strength cast iron materials for enhanced durability and stability.

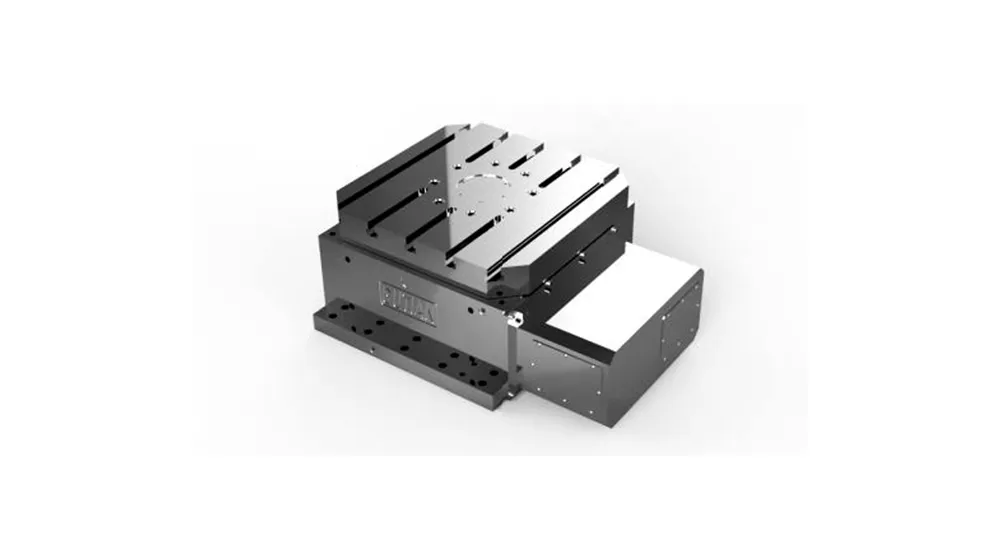

• Minimal Indexing: The rotary table offers a minimum indexing of 0.001°.

• High Precision and Speed: The cam-type CNC rotary table uses a constant-speed driving surface of the cam and pre-loaded rolling contact between the cam surface and the needle bearing on the turret, ensuring high precision, high speed, zero backlash, and the ability to handle heavy loads.

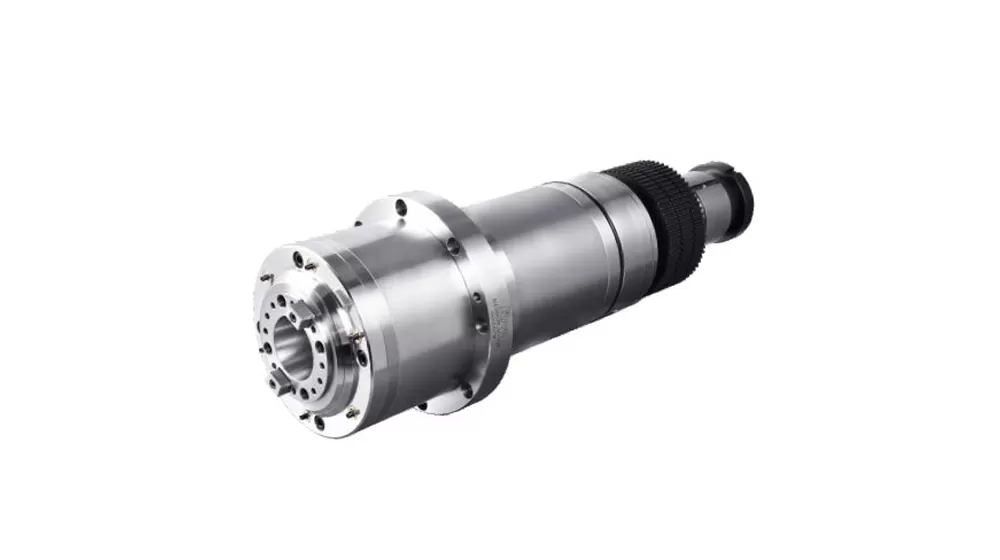

• Oil Cooling System: Equipped with an oil cooling system to prevent spindle thermal deformation, ensuring consistent performance.

• Labyrinth-Type Nose Design: Features a labyrinth-style nose with an air curtain protection function to prevent coolant intrusion, enhancing spindle durability and precision.

• Angle Encoder Control: Utilizes an angle encoder to control the tool change action, ensuring stable and reliable signals for smooth and precise tool changes.

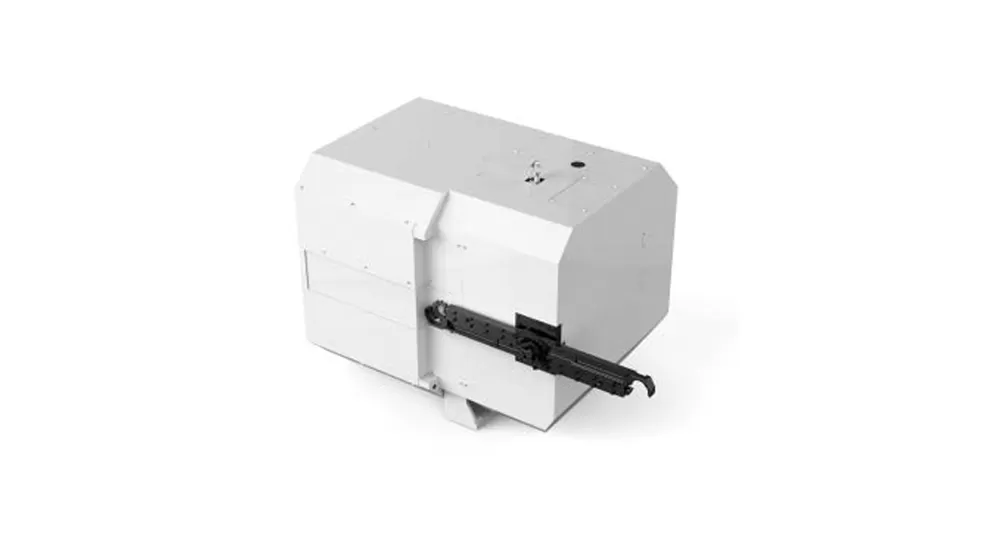

• Cam-Driven Mechanism: The cam-driven tool magazine guarantees high-precision rotation, ensuring smooth operation even with heavy-duty tools.

• Fully Enclosed Design: The fully enclosed structure prevents machining iron filings from splashing onto the tool magazine, protecting the tools and maintaining machining accuracy, while enhancing overall stability.
