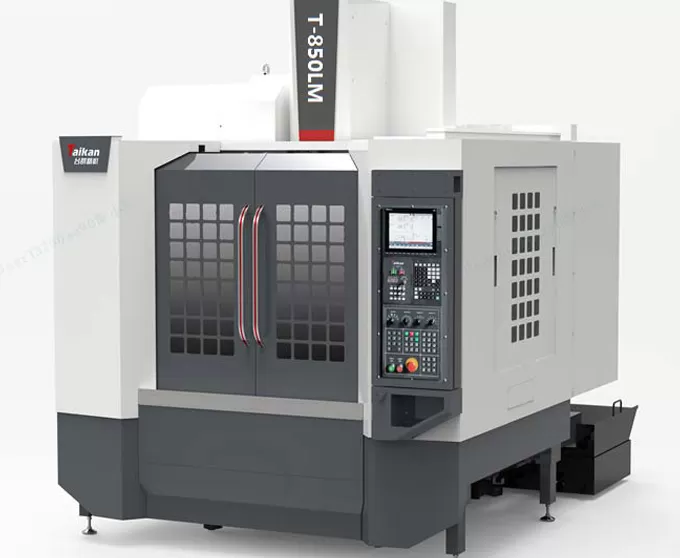

Name: T-850LM High-speed and High-rigidity Vertical Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristics of T-850LM High-speed and High-rigidity Vertical Machining Center

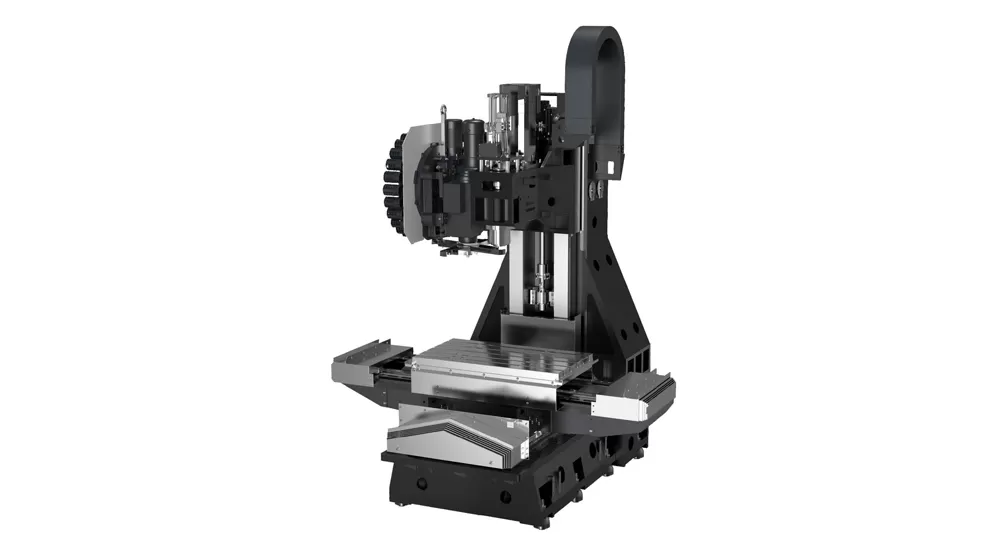

High-Rigidity Stable Structure

High-Precision Feed Axes

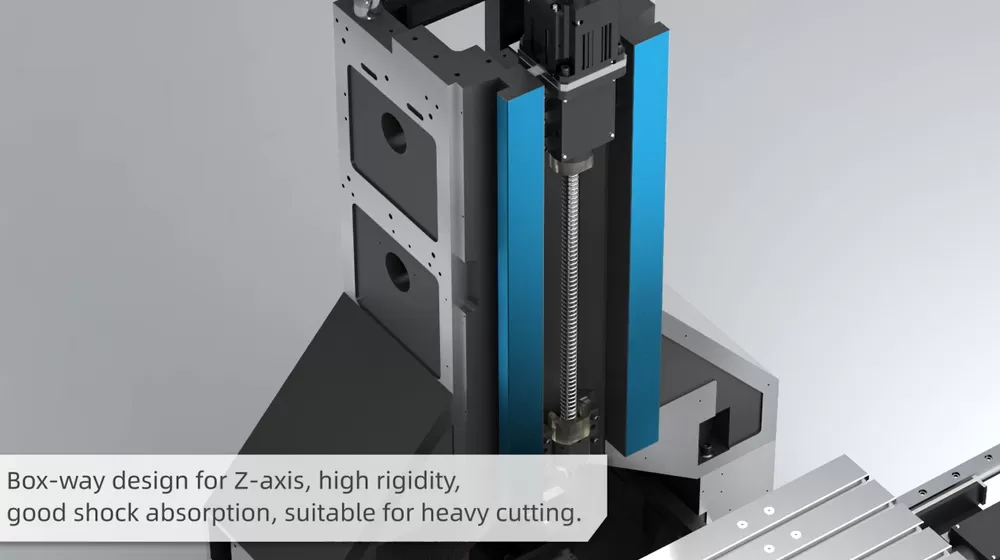

The Z-axis uses high-rigidity rectangular hard rails, while the X and Y axes are equipped with large-size, high-precision roller linear guides. This combination offers the high speed of linear guide machines and the high rigidity of hard rail machines, providing excellent heavy cutting capacity and good vibration absorption.

Ball screws are equipped with pre-tension structures to mitigate thermal expansion effects, and self-lubricating bearings extend their service life.

Taikan High-Speed Spindle Unit

Taikan 24-Tool Arm-Type Tool Magazine

Application of T-850LM High-speed and High-rigidity Vertical Machining Center

This machine is particularly suitable for the small to medium batch processing of complex parts such as small to medium-sized boxes, plates, discs, valves, housings, and molds. It is widely used in industries such as precision parts, 5G products, hardware, automotive components, and medical devices.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Specifications of T-850LM High-speed and High-rigidity Vertical Machining Center

Item			Unit	T-850LM	Remarks
Travel	Table travel (X axis)		mm	850
	Saddle travel (Y axis)		mm	520
	Headstock travel (Z axis)		mm	550
	Distance from spindle nose to table surface		mm	150～700
	Distance from spindle center to column guide surface		mm	590
Worktable	Table size		mm	1000*550
	Max. load (even load-bearing)		kg	600
	T-slot (number of slots - slot width * spacing)		mm	5-18*100
Spindle	Motor power (rated/short time)		kW	45976
	Motor torque (rated/short time)		N.m	52.5/118
	Speed range		r/min	50~8000（belt）
	Spindle diameter		mm	φ150
	Spindle taper		/	BT40
	Rivet specifications		/	P40T-I（MAS403）
Speed	Cutting feed speed range		mm/min	1-10000
Speed	X/Y/Z axis rapid traverse speed		m/min	30/30/20
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.008/0.008/0.01	GB/T18400.4（Full travel）
Accuracy	Repeatability (X/Y/Z)		mm	0.005/0.005/0.008	GB/T18400.4（Full travel）
Tool magazine	Tool capacity		pcs	24
	Max. tool weight		kg	7
	Max. tool length		mm	250
	Max. tool diameter (full /adjacent empty)		mm	Φ75/Φ150
Others	Z-axis counterweight		/	/
	CNC system		/	Mitsubishi M80VB
	Air source	Flow	L/min	≥280（ANR)
	Air source	Air pressure	MPa	0.6~0.8
	Equipment capacity		KVA	25
	Coolant tank capacity		L	300
	Machine size		mm	225031702890	Corresponding to XYZ axis
	Weight (approx.)		Kg	6500

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
