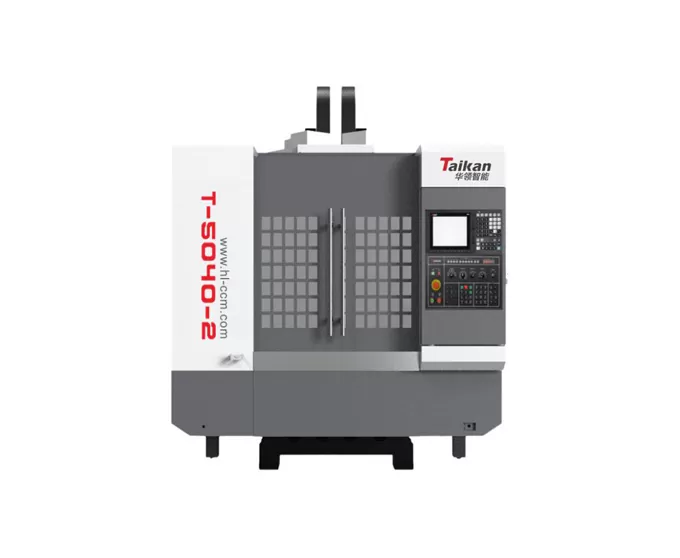

Name: T-5040-2 Multi-Head Vertical Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of T-5040-2 Multi-Head Vertical Machining Center

Cast Iron Bed and Beam Structure

The machine's bed and beam are made of cast iron, with the overall structure analyzed using computer finite element analysis (FEA) to ensure optimal layout. This design offers superior precision stability compared to similar machines.

Dual-Spindle Design for Enhanced Efficiency

The dual-Spindledesign allows for the simultaneous machining of two identical parts in a single clamping, achieving 1.7-2 times the efficiency of conventional drilling and tapping machines.

Standard 21-Tool Slant Disc Tool Magazine

Large tool magazine capacity and high tool-change efficiency, with a tool-to-tool (T-to-T) time of just 1.5 seconds.

Dual-Spindle Design for Enhanced Efficiency

Standard 21-Tool Slant Disc Tool Magazine

Application of T-5040-2 Multi-Head Vertical Machining Center

Ideal for machining small plate parts, disc-shaped parts, and shell components in general industries.

3C Industry: Suitable for roughing and finishing processes for mobile phone frames, SIM card trays, hinges, tablet casings, and 5G-related parts such as plates, shells, and box components.

Precision Industries: Suitable for the roughing and finishing of plate, shell, and box components in industries such as instruments, small molds, and medical devices.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of T-5040-2 Multi-Head Vertical Machining Center

name	project	Parameters
workbench	Table size (mm)	1200*400
	Distance from table to spindle nose (mm)	180~500
	Maximum load-bearing weight (Kg)
journey	X-direction travel (mm)	500
	Travel in Y direction (mm)	400
	Ztravel (mm)	320
Spindle	Spindle power (Kw)	3.7/5.5
	Spindle maximum speed (rpm)	20000
	Spindle diameter (mm)	φ100
	Spindle tool change method	Pneumatic tool changer
	Shank form	BT30
Feed rate	Maximum dry run feed speed (m/min)	36
Feed rate	Maximum cutting feed rate (m/min)	30
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.005
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.004
Tool magazine	Tool magazine capacity	21T*2
Tool magazine	Tool magazine form	Inclined disc knife magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	23
Other parameters	Dimensions (front and rear * left and right * up and down mm)
	Weight (Approx. weight: Kg)	5000
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
