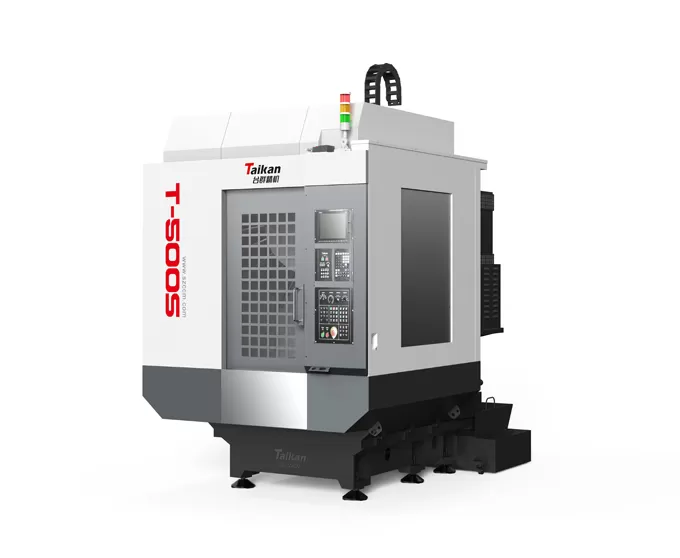

Name: T-500S High-speed and High-efficiency Wheel hub Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristic of T-500S High-speed and High-efficiency Wheel hub Machining Center

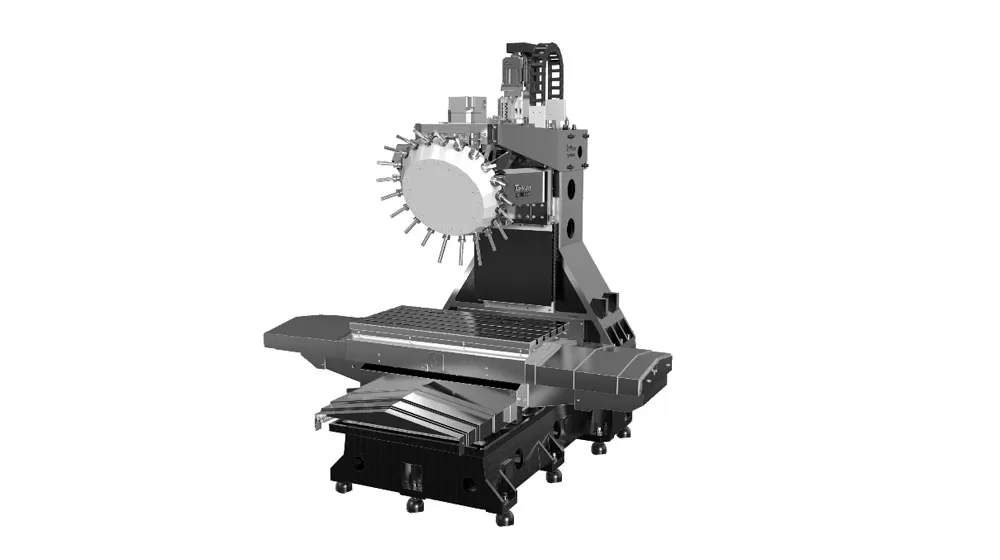

Base Structure

The base structure is designed with digital analysis and precision engineering, featuring an oversized span with six-point support, effectively enhancing the machine's rigidity and vibration resistance, ensuring high stability and accuracy during the machining process.

X, Y, Z Axes

All three axes are equipped with precision ball screws, and the guide rails use high-precision linear guides, ensuring smooth operation and precise positioning for outstanding machining accuracy and reliability.

Direct Drive Spindle

The spindle features a direct-drive transmission system, reducing errors in high-speed tapping and ensuring excellent performance with high output power in high-speed machining.
The high-speed spindle responds quickly and is equipped with ceramic ball bearings, significantly extending spindle life.
The precision-grade spindle is standard with a maximum speed of up to 20,000 rpm, meeting the demands of high-precision and high-speed machining.

High-Speed Servo Tool Changer

The optimized PLC tool changer system provides a fast and stable tool change process, significantly reducing tool change time and non-machining time, thus improving overall machining efficiency.

The Z-axis is designed with optimization to enhance rigidity and significantly improve acceleration, reducing idle travel time and further increasing machining efficiency and machine responsiveness.

Application of T-500S High-speed and High-efficiency Wheel hub Machining Center

The machine tool is suitable for the multi-variety, small-batch processing of complex parts such as medium and small-sized box-shaped components, plates, disks, valves, housings, and molds. It is widely used in industries such as precision parts, 5G products, hardware, automotive parts, and medical devices.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of T-500S High-speed and High-efficiency Wheel hub Machining Center

Item			Unit	T-500S	Remarks
Travel	Table travel (X axis)		mm	500
	Saddle travel (Y axis)		mm	400
	Headstock travel (Z axis)		mm	320
	Distance from spindle nose to table surface		mm	180-500
	Distance from spindle center to column guide surface		mm	445
Table	Table size		mm	620*400
	Max. load		kg	250
	T-slot (number of slots - slot width * spacing)		mm	3-14*120
Spindle	Motor power (rated/short time)		kW	3.7/5.5
	Motor torque (rated/short time)		N.m	14.1/21
	Spindle motor speed		rpm	20-24000
	Spindle taper		/	BT30
Speed	Cutting feed speed range		mm/min	1-15000
Speed	X/Y/Z axis rapid traverse speed		m/min	48/48/48
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.006	GB/T 18400.4（Full travel）
Accuracy	Repeatability (X/Y/Z)		mm	0.004	GB/T 18400.4（Full travel）
Tool magazine	Tool storage capacity		pcs	21
	Max. tool weight		kg	3
	Max. tool length		mm	300
	Max. tool diameter (full /adjacent empty)		mm	Ф60/Ф80
Other	CNC system			Mitsubishi M80VA
	Air source	Flow	L/min	≥200（ANR）
	Air source	Air pressure	MPa	0.6-0.8
	Equipment capacity		kVA	15
	Max. coolant tank capacity		L	145
	Machine size		mm	166024802330	Corresponding to XYZ axis
	Weight (approx.)		kg	2800

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
