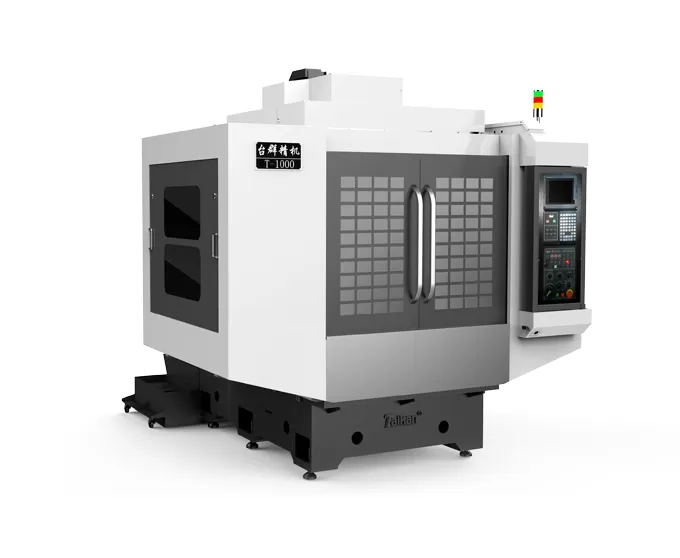

Name: T-1000 High-speed and High-precision Drilling & Milling Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristic of T-1000 High-speed and High-precision Drilling & Milling Machining Center

Base Structure

The base structure is designed with digital analysis and precision engineering, featuring an oversized span with six-point support, effectively enhancing the machine's rigidity and vibration resistance, ensuring high stability and accuracy during the machining process.

X, Y, Z Axes

All three axes are equipped with precision ball screws, and the guide rails use high-precision linear guides, ensuring smooth operation and precise positioning for outstanding machining accuracy and reliability.

Direct Drive Spindle

The spindle features a direct-drive transmission system, reducing errors in high-speed tapping and ensuring excellent performance with high output power in high-speed machining.
The high-speed spindle responds quickly and is equipped with ceramic ball bearings, significantly extending spindle life.
The precision-grade spindle is standard with a maximum speed of up to 24,000 rpm, meeting the demands of high-precision and high-speed machining.

High-Speed Servo Tool Changer

The optimized PLC tool changer system provides a fast and stable tool change process, significantly reducing tool change time and non-machining time, thus improving overall machining efficiency.
The Z-axis is designed with optimization to enhance rigidity and significantly improve acceleration, reducing idle travel time and further increasing machining efficiency and machine responsiveness.

Application of T-1000 High-speed and High-precision Drilling & Milling Machining Center

Widely used in the 3C industry, automotive parts, small mold processing, medical devices, and other industries for the machining of small plate parts, disc-shaped parts, and housings.

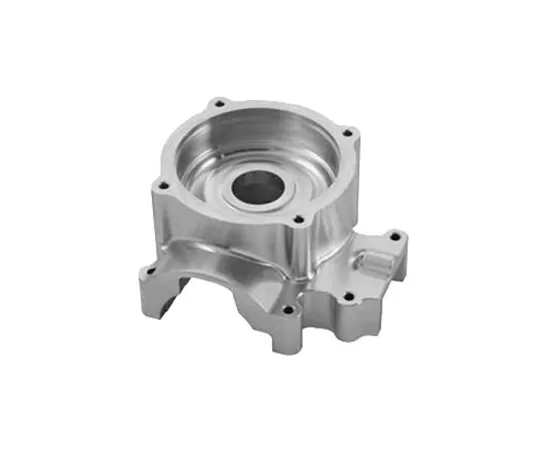

Workpiece Example 1

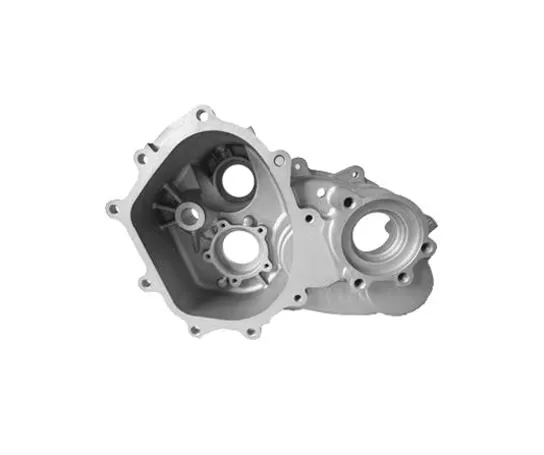

Workpiece Example 2

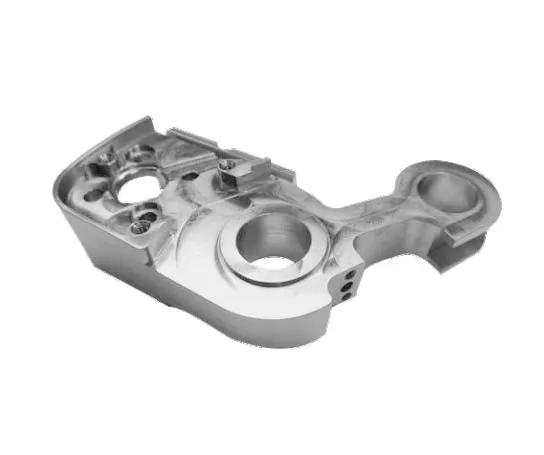

Workpiece Example 3

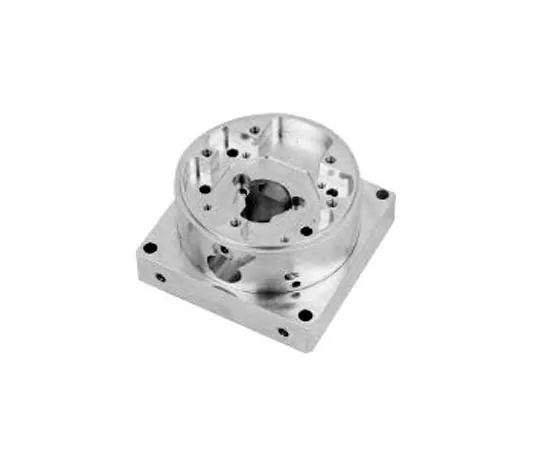

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of T-1000 High-speed and High-precision Drilling & Milling Machining Center

Item			Unit	T-1000	Remarks
Travel	Table travel (X axis)		mm	1100
	Saddle travel (Y axis)		mm	650
	Headstock travel (Z axis)		mm	410(21T)
	Distance from spindle nose to table surface		mm	155-565
	Distance from spindle center to column guide surface		mm	727
Table	Table size		mm	1200*600
	Max. load		kg	600
	T-slot (number of slots - slot width * spacing)		mm	5-18*100
Spindle	Motor power (rated/short time)		kW	3.7/5.5
	Motor torque (rated/short time)		N.m	14.1/21.0
	Spindle motor speed		rpm	20-20000
	Spindle taper		/	BT30
Speed	Cutting feed speed range		mm/min	1-15000
Speed	X/Y/Z axis rapid traverse speed		m/min	36/36/36
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.01	GB/T 18400.4（Full travel）
Accuracy	Repeatability (X/Y/Z)		mm	0.006	GB/T 18400.4（Full travel）
Tool magazine	Tool storage capacity		pcs	21
	Max. tool weight		kg	3
	Max. tool length		mm	200
	Max. tool diameter (full /adjacent empty)		mm	Ф60/Ф80
Other	CNC system		/	Mitsubishi M80VB
	Air source	Flow	L/min	≥200（ANR）
	Air source	Air pressure	MPa	0.6-0.8
	Equipment capacity		kVA	15
	Max. coolant tank capacity		L	300
	Machine size		mm	270034202710	Corresponding to XYZ axis
	Weight (approx.)		kg	5500

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
