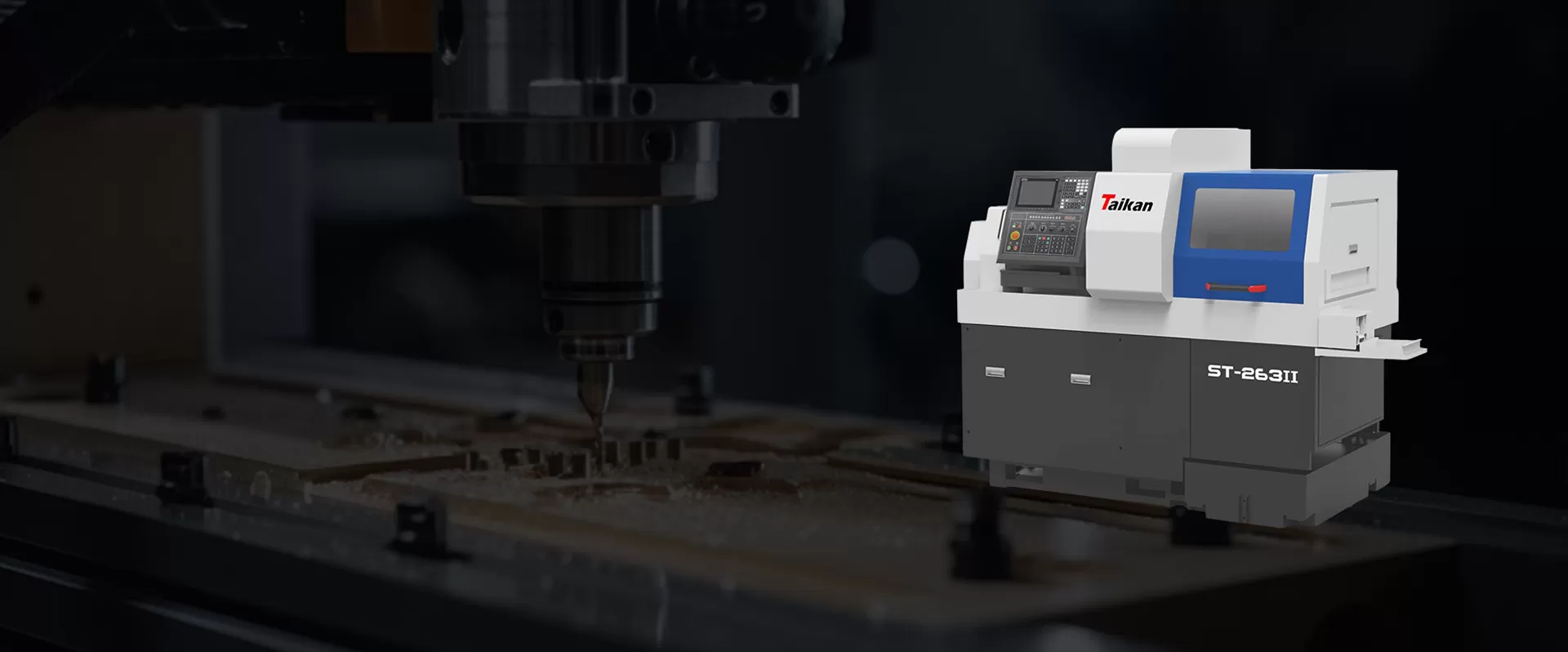

single spindle, 3 axes
3 linear feed axes.

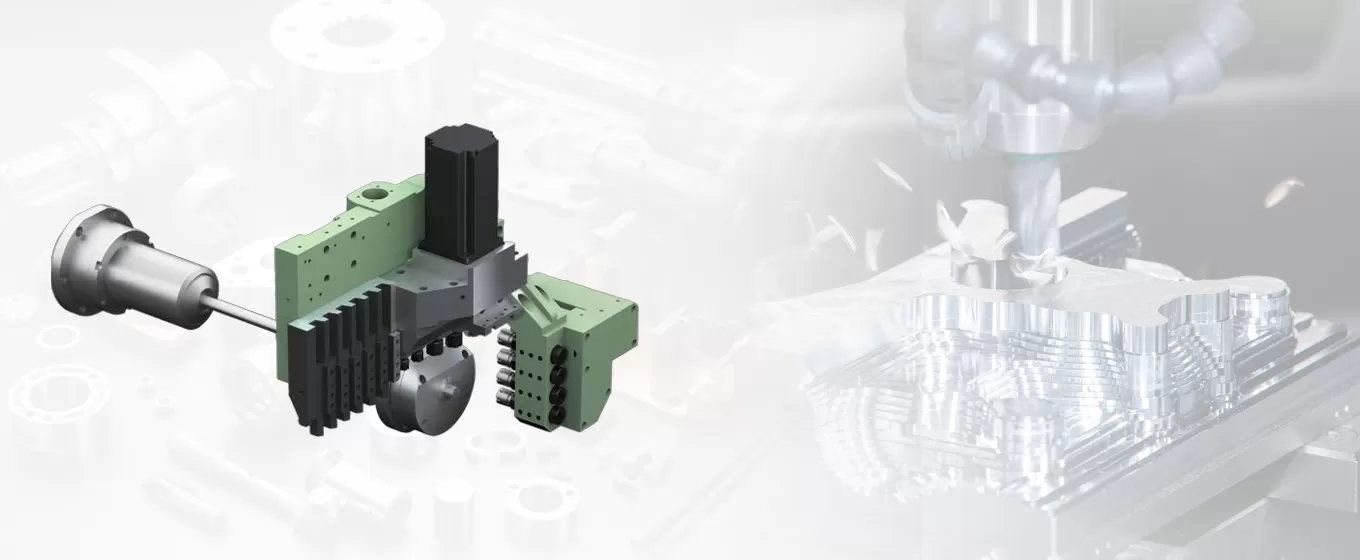

Single spindle with single system, the spindle adopts built-in motorized spindle.
Interchangeable with and without guide sleeve.
The tool layout is rich, with good expansibility.
Mitsubishi system secondary development. cold and hot machine compensation screen.
Item | Unit | ST-203 Single spindle, 3 axes | ST-263 Single spindle, 3 axes | ST-323 Single spindle, 3 axes |
Max. machining diameter | mm | Ø 20 | Ø 26 | Ø 32 |
Max. machining length | mm | Max. 240 | Max. 240 | Max. 240 |
Front drilling diameter | mm | Max. Ø 10 | Max. Ø 10 | Max. Ø 13 |
Front thread machining | mm | Max.M8 | Max.M8 | Max.M8 |
Control system | Mitsubishi E80 | Mitsubishi E80 | Mitsubishi E80 |
