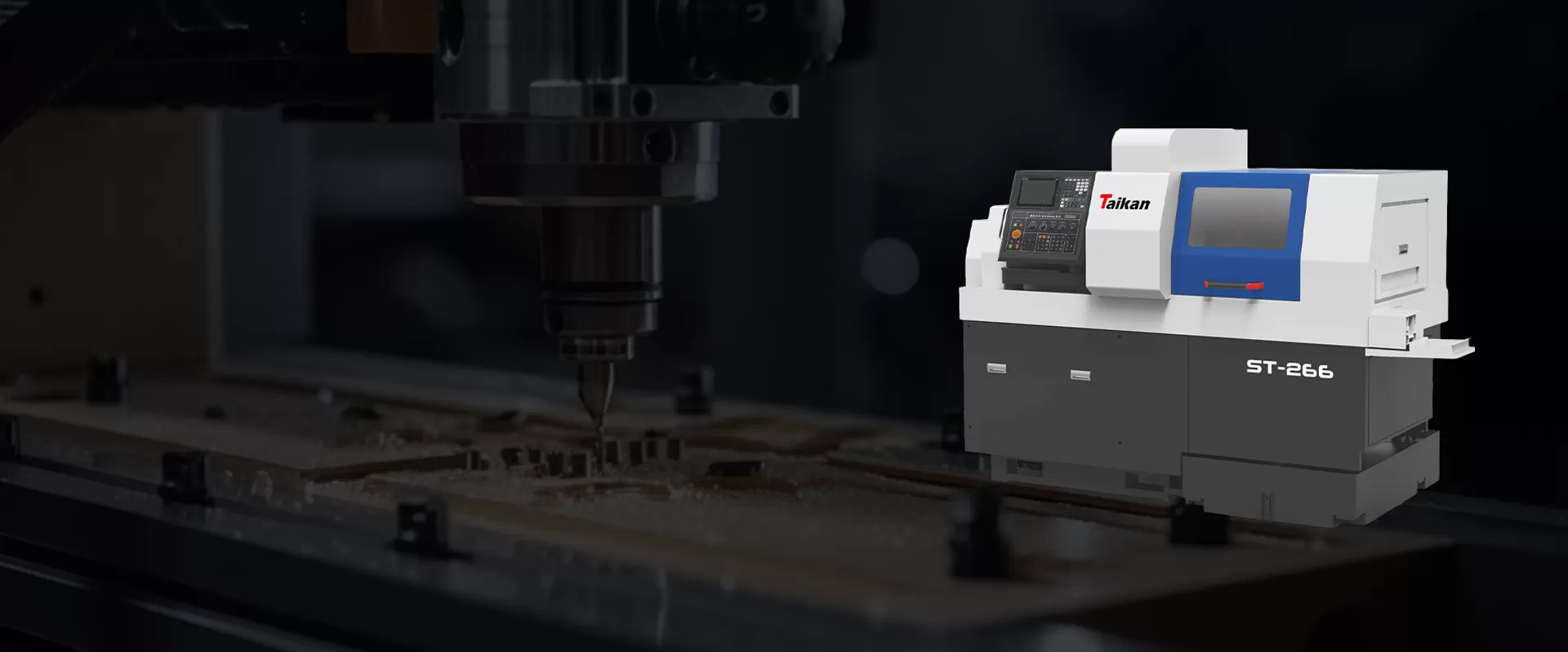

double spindles, 6 shafts
6 linear feed axes.
Double spindle with dual system, the spindle adopts mechanical spindle or motorized spindle.

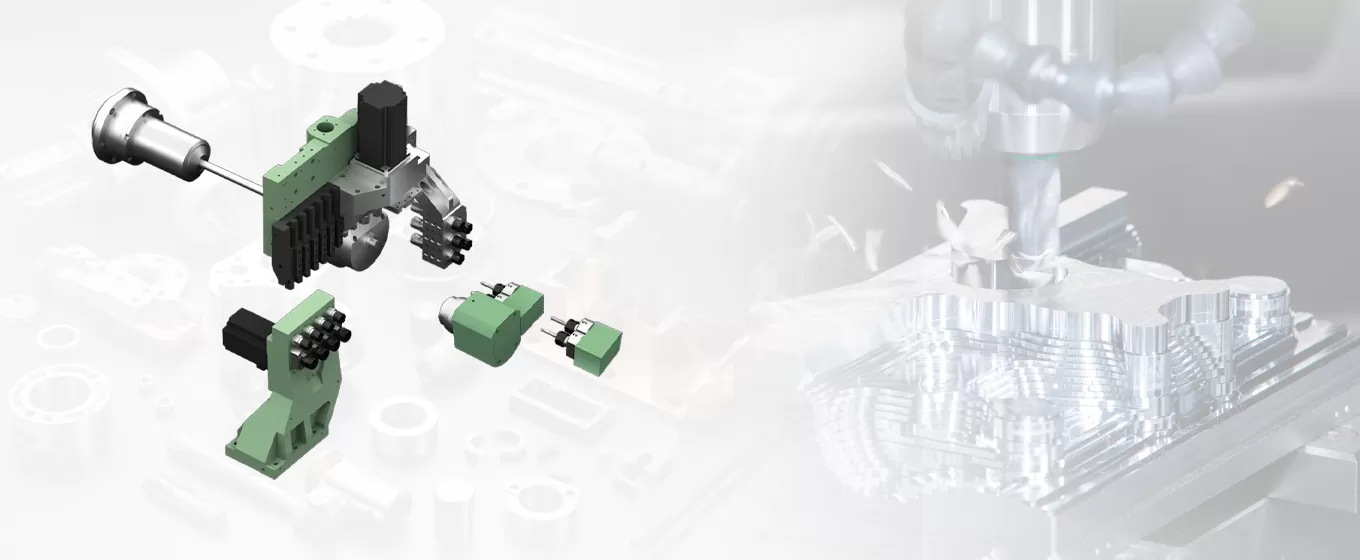

The tool layout is rich, with good expansibility.
Interchangeable with and without guide sleeve.
Mitsubishi system secondary development. cold and hot machine compensation screen
Item | Unit | ST-206 Double spindles, 6 axes | ST-266 Double spindles, 6 axes | ST-326 Double spindles, 6 axes | ST-386 Double spindles, 6 axes |
Max. machining diameter | mm | Ø 20 | Ø 26 | Ø 32 | Ø 38 |
Max. machining length | mm | Max. 240 | Max. 240 | Max. 240 | Max. 240 |
Front drilling diameter | mm | Max. Ø 10 | Max. Ø 10 | Max. Ø 13 | Max. Ø 13 |
Front thread machining | mm | Max.M8 | Max.M8 | Max.M8 | Max.M8 |
Control system | Mitsubishi M80 LA | Mitsubishi M80 LA | Mitsubishi M80 LA | Mitsubishi M80 LA |
