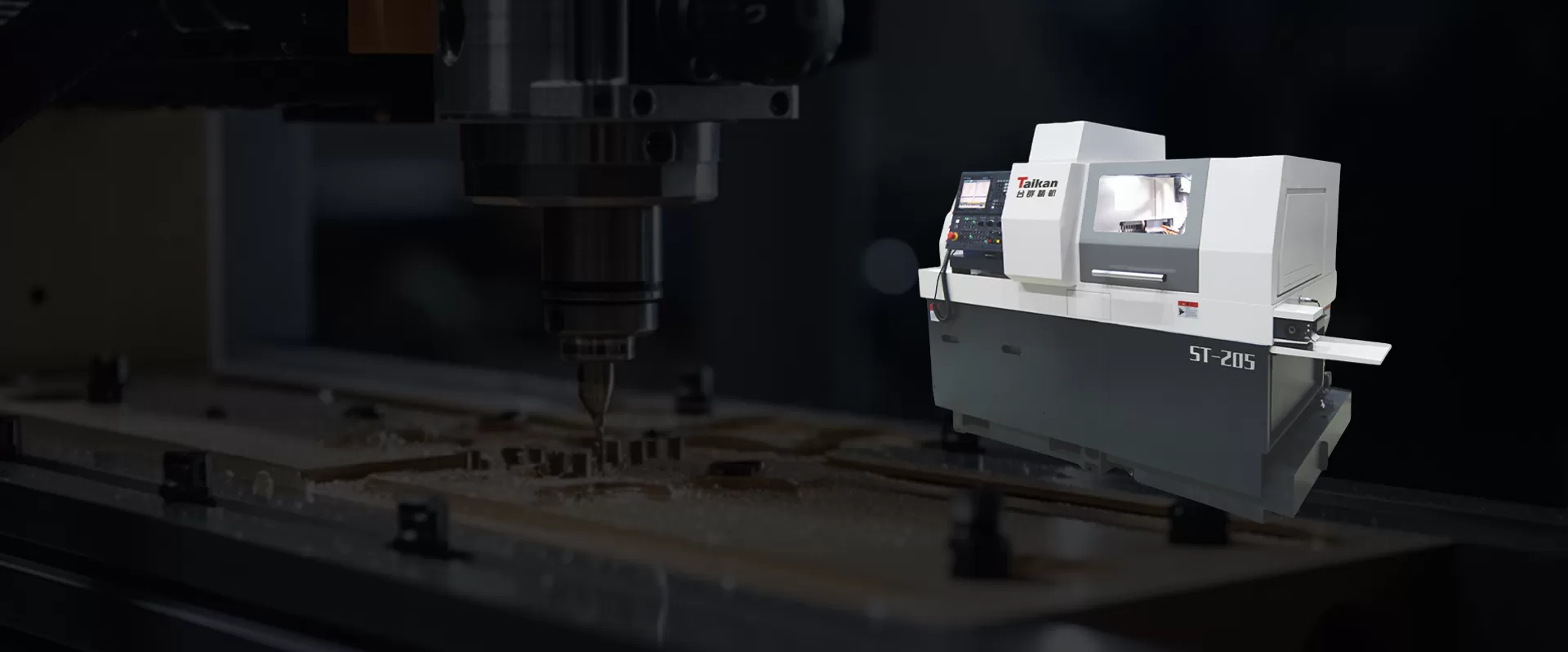

double spindles, 5 axes
5 linear feed axes.
Dual spindles and dual systems, the spindle adopts mechanical spindle or motorized spindle.

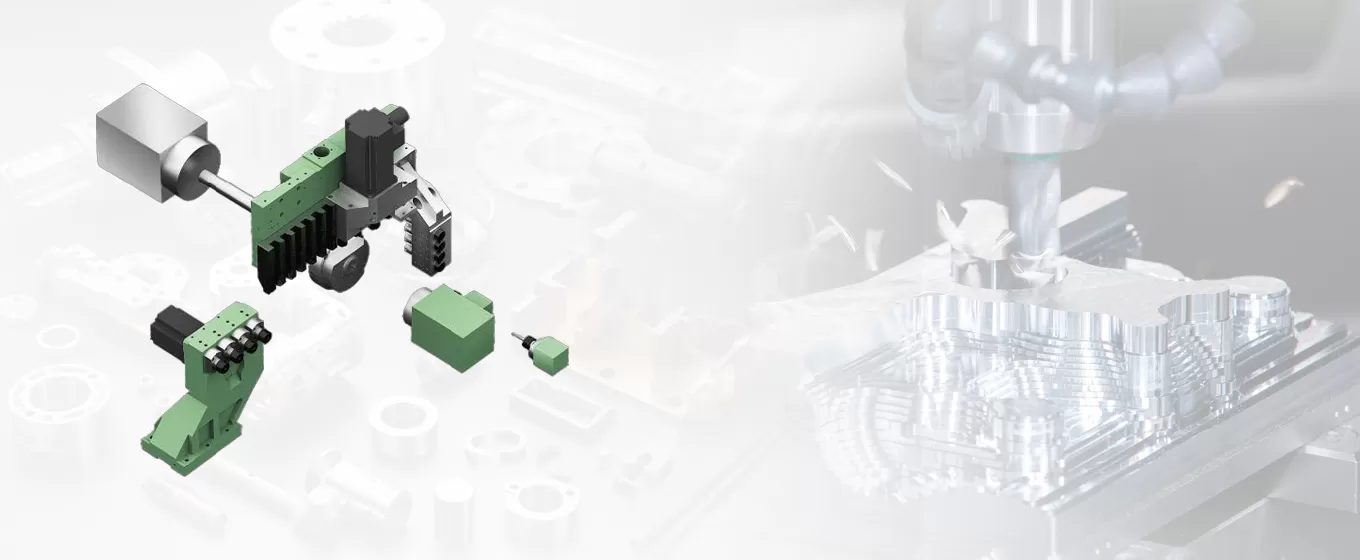

The tool layout is rich, with good expansibility.
Interchangeable with and without guide sleeve.
Mitsubishi system secondary development. cold and hot machine compensation screen.
Item | Unit | ST-205 Double spindles, 5 axes | ST-265 Double spindles, 5 axes | ST-325 Double spindles, 5 axes | ST-385 Double spindles, 5 axes |
Max. machining diameter | mm | Ø 20 | Ø 26 | Ø 32 | Ø 38 |
Max. machining length | mm | Max. 240 | Max. 240 | Max. 240 | Max. 240 |
Front drilling diameter | mm | Max. Ø 10 | Max. Ø 10 | Max. Ø 13 | Max. Ø 13 |
Front thread machining | mm | Max.M8 | Max.M8 | Max.M8 | Max.M8 |
Control system | Mitsubishi M80 LA | Mitsubishi M80 LA | Mitsubishi M80 LA | Mitsubishi M80 |
