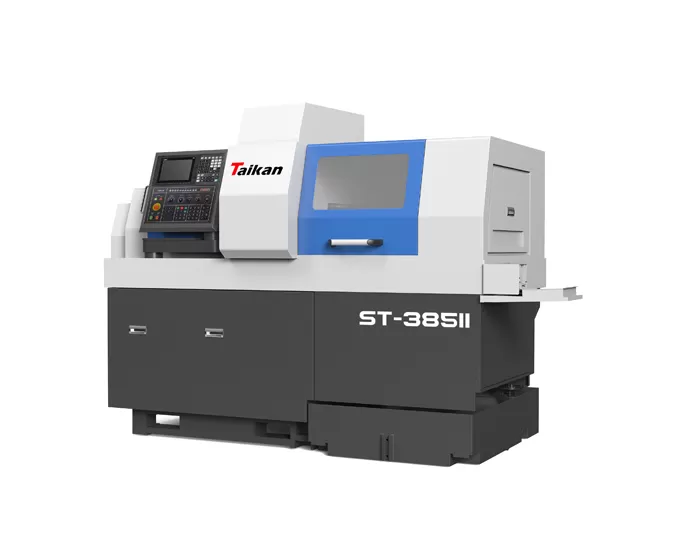

ST-385Ⅱ High-precision CNC Slitting Lathe

CNC Sliting Lathe

Double spindle, 5 axes


Contact

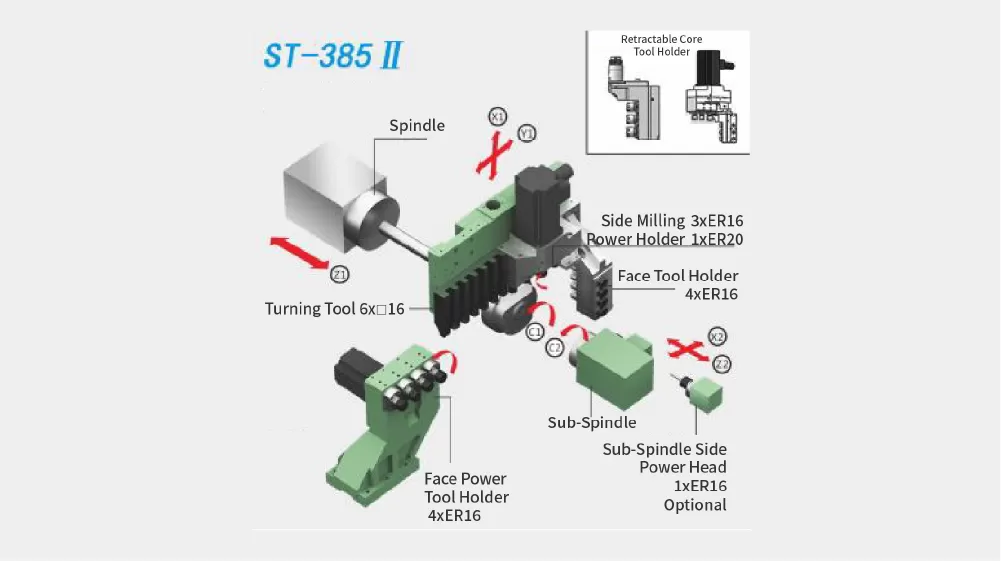

Characteristic of ST-385Ⅱ High-precision CNC Slitting Lathe

01

  • Double Spindle, Double System

  • 5 Linear Feed Axes, 32m/min Rapid Traverse Speed

  • 4 Power Tools, 4 End-Face Tools.

  • Spindle With Side Milling Driven Tool Option

  • Mechanical Spindle


02

  • Interchangeable with and without guide sleeve

  • Mitsubishi system secondary development. cold and hot machine compensation


01 02

Application of ST-385Ⅱ High-precision CNC Slitting Lathe

Single Spindle Lathe

Workpiece Example 1

Single Spindle Automatic Lathe

Workpiece Example 2

Single Spindle Automatic Lathe Machine

Workpiece Example 3

Single Spindle Automatic Lathe Traub Machine

Workpiece Example 4

Single Spindle Lathe Machine

Workpiece Example 5

Specifications of ST-385Ⅱ High-precision CNC Slitting Lathe

Specification

ST-385Ⅱ

Max. Machining Diameter

Ø38 mm

Max. Machining Length

240 mm

Front Drilling Diameter

Max. Ø13 (Copper)

Front Threading Capacity

Max. M10

Spindle Through-Hole

Ø40 mm

Control System

Mitsubishi M80LA System

Spindle Speed (Max.)

6,000 r/min

Side Milling Max. Drilling

Max. Ø13 (Copper)

Side Milling Max. Tapping

Max. M8 (Copper)

Side Milling Max. Speed

5,000 r/min

Back Spindle Max. Clamping

Ø36 mm

Back Tool Drilling Diameter

Max. Ø10

Back Spindle Threading

Max. M8

Back Spindle Speed (Max.)

6,000 r/min

Turning Tools

6×□16 mm (Square Shank)

Side Milling Power Tool

3×ER16 + 1×ER20

Front Fixed Tool Holders

4×ER16

Back Spindle Face Tool Holders

2×ER16 Rotary + 2×ER16 Fixed

Rapid Traverse Speed

Y1/X2: 32 m/min, X1: 20 m/min, Z1/Z2: 24 m/min

Spindle Motor Power

3.7 kW / 5.5 kW

Sub-Spindle Motor Power

1.5 kW / 2.2 kW

Back Spindle Face Milling Power

1.0 kW

Feed Motor Power

1.0 kW

Total Machine Power

12 kW

Machine Weight

3,100 kg


The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
