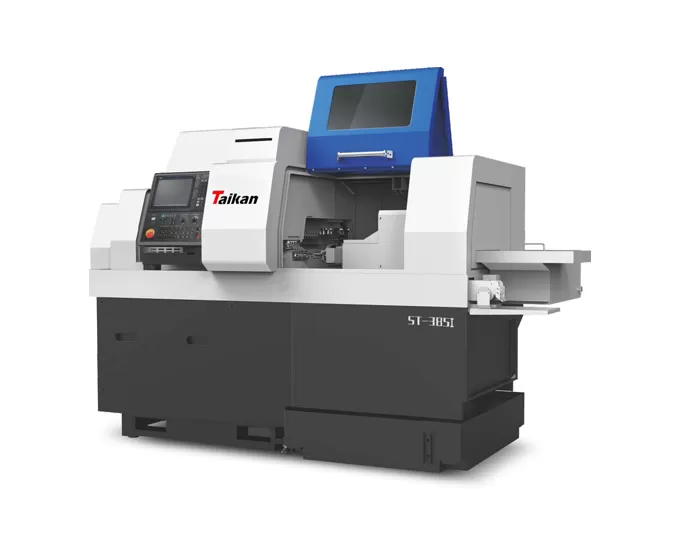

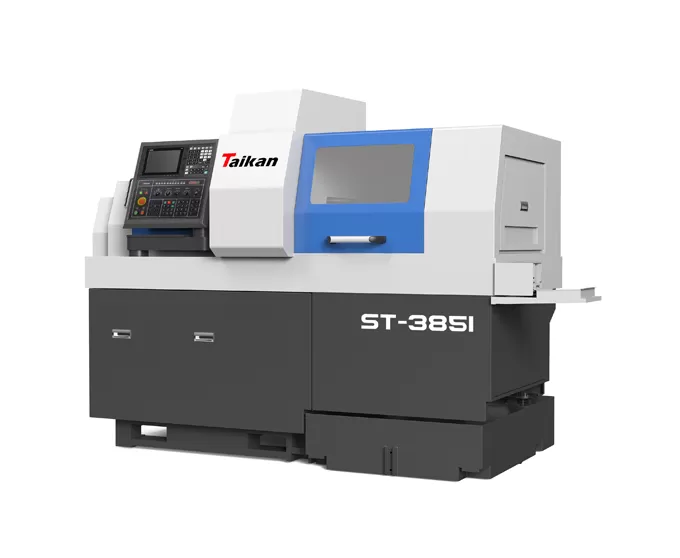

ST-385Ⅰ High-precision CNC Slitting Lathe

Max. Machining Diameter

Ø38 mm

Max. Machining Length

240 mm

Front Drilling Diameter

Max. Ø13 (Copper)

Front Threading Capacity

Max. M10

Spindle Through-Hole

Ø40 mm

Control System

Mitsubishi M80LA System

Spindle Speed (Max.)

6,000 r/min

Side Milling Max. Drilling

Max. Ø13 (Copper)

Side Milling Max. Tapping

Max. M8 (Copper)

Side Milling Max. Speed

5,000 r/min

Back Spindle Max. Clamping

Ø36 mm

Back Tool Drilling Diameter

Max. Ø10

Back Spindle Threading

Max. M8

Back Spindle Speed (Max.)

6,000 r/min

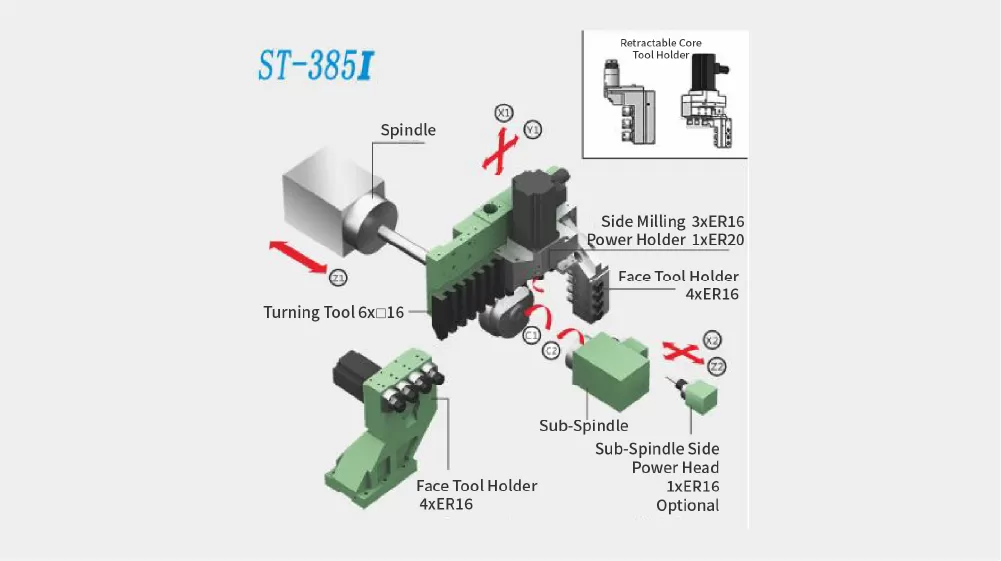

Turning Tools

6×□16 mm (Square Shank)

Side Milling Power Tool

3×ER16 + 1×ER20

Front Fixed Tool Holders

4×ER16

Back Spindle Face Tool Holders

4×ER16 Fixed

Rapid Traverse Speed

Y1/X2: 32 m/min, X1: 20 m/min, Z1/Z2: 24 m/min

Spindle Motor Power

3.7 kW / 5.5 kW

Sub-Spindle Motor Power

1.5 kW / 2.2 kW

Back Spindle Face Milling Power

1.0 kW

Feed Motor Power

1.0 kW

Total Machine Power

12 kW

Machine Weight

3,100 kg
