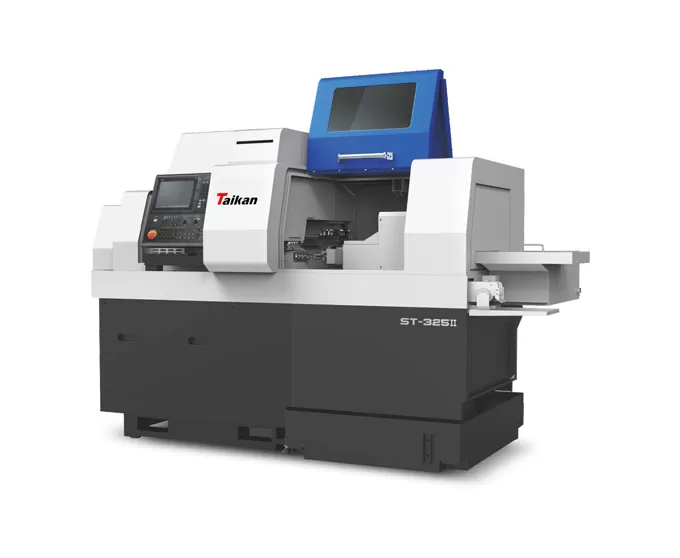

ST-325Ⅱ High-precision CNC Slitting Lathe

Max. Machining Diameter

Ø32 mm

Max. Machining Length

240 mm

Front Drilling Diameter

Max. Ø13 (Copper)

Front Threading Capacity

Max. M8

Spindle Through-Hole

Ø33 mm

Control System

Mitsubishi M80LA

Spindle Speed (Max.)

8,000 r/min

Side Milling Max. Drilling

Max. Ø13 (Copper)

Side Milling Max. Tapping

Max. M8 (Copper)

Side Milling Max. Speed

5,000 r/min

Back Spindle Max. Clamping

32 mm

Back Tool Drilling Diameter

Max. Ø10

Back Spindle Threading

Max. M8

Back Spindle Speed (Max.)

8,000 r/min

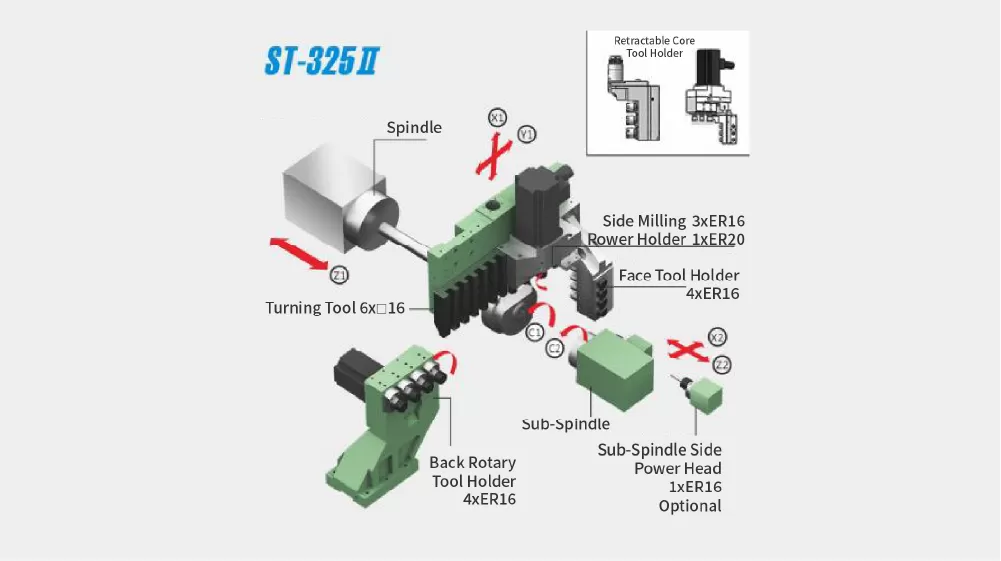

Turning Tools

6×□16 mm

Side Milling Power Tool

3×ER16 + 1×ER20

Front Fixed Tool Holders

4×ER16

Back Spindle Face Tool Holders

2×ER16 Fixed + 2×ER16 Rotary

Rapid Traverse Speed

32 m/min (Y1/X2), 20 m/min (X1), 24 m/min (Z1/Z2)

Spindle Motor Power

3.7 kW / 5.5 kW

Sub-Spindle Motor Power

1.5 kW / 2.2 kW

Back Spindle Face Milling Power

1.0 kW

Feed Motor Power

1.0 kW

Total Machine Power

12 kW

Machine Weight

3,000 kg
