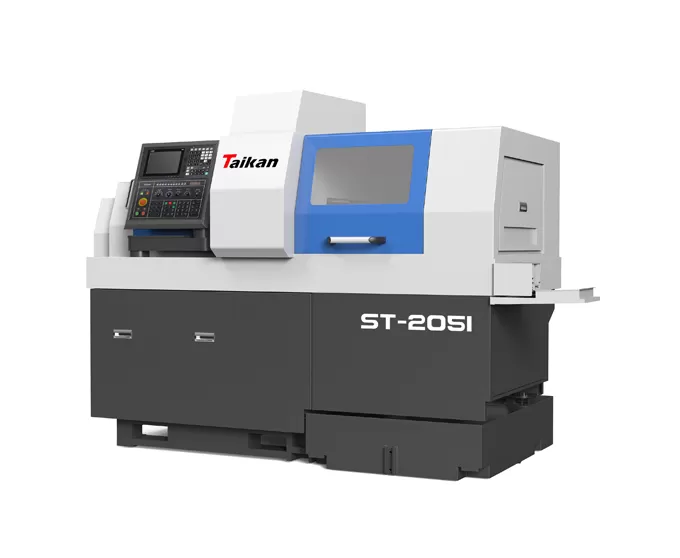

ST-205ⅠHigh-precision CNC Slitting Lathe

Max. Machining Diameter

Ø20

Max. Machining Length

240 mm

Front Drilling Diameter

Max. Ø10

Front Threading Capacity

Max. M8

Spindle Through-Hole Diameter

23 mm

Control System

Mitsubishi M80LA System

Spindle Speed

Max. 8,000 r/min

Side Milling Max. Drilling

Max. Ø10

Side Milling Max. Tapping

Max. M8 (Copper)

Side Milling Max. Speed

Max. 5,000 r/min

Back Spindle Max. Clamping Diameter

20 mm

Back Spindle Max. Extension

50 mm

Back Spindle Max. Drilling

Max. Ø10

Back Spindle Threading

Max. M8 (Copper)

Back Spindle Speed

Max. 8,000 r/min

Back Tool Drilling Diameter

Max. Ø10

Turning Tools

5×□12 + 1×□16

Side Milling Power Tool Holders

2×ER11 + 3×ER16 (2 Quick-Change Units)

Front Fixed Tool Holders

5×ER16

Back Spindle Fixed Tool Holders

4×ER16 Fixed (Expandable to 6×ER16)

Rapid Traverse Speed

32 m/min (Y1/X2), 20 m/min (X1), 24 m/min (Z1/Z2)

Spindle Motor Power

3.7 kW / 5.5 kW

Sub-Spindle Motor Power

3.7 kW / 5.5 kW

Side Milling Motor Power

1.0 kW

Feed Motor Power

1.0 kW (X1/Y1/Z1/X2/Z2)

Total Machine Power

12 kW

Machine Weight

2,600 kg
