Types of Multi-Channel High-Speed Machining Center

C-400E-2D Multi-Worktable High-Speed Machining Center

C-400-2D Multi-Worktable High-Speed Machining Center

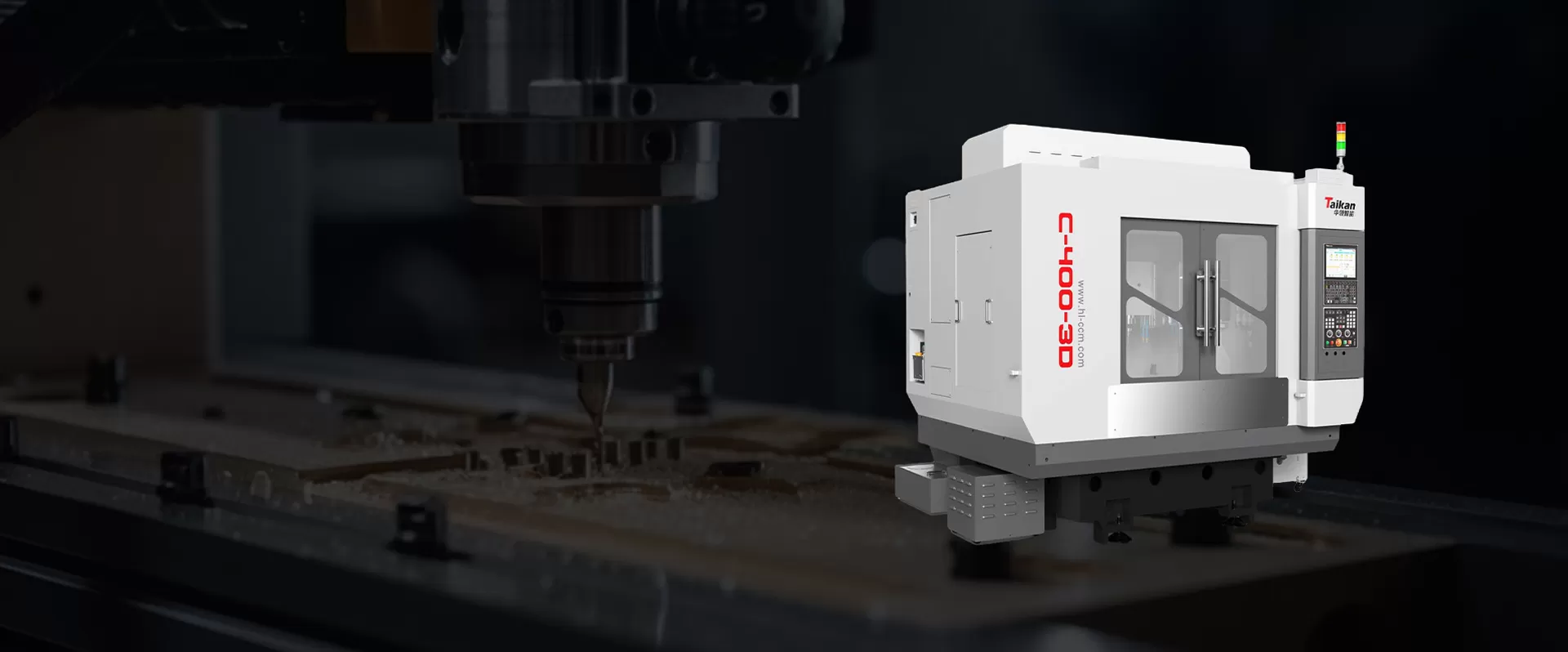

C-400-3D Multi-Worktable High-Speed Machining Center

C-560-2D Multi-Worktabel Hight-Speed Machining Center

T-500-2D Multi-Worktable High-Speed Machining Center

T-700-2D Multi-Worktable High-Speed Machining Center

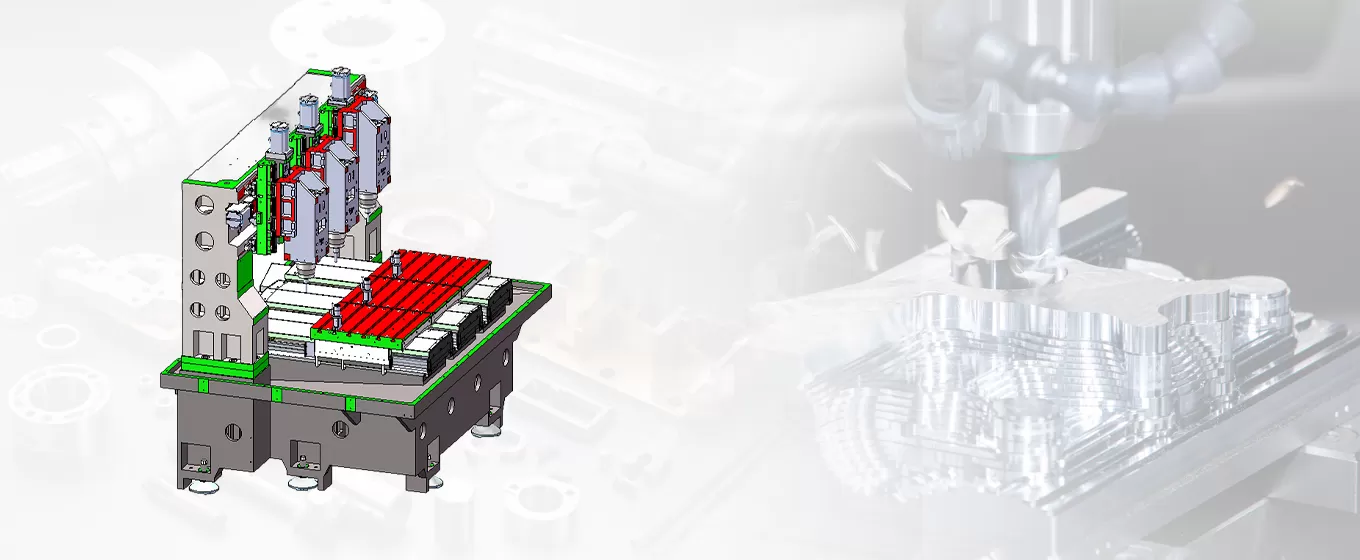

Advantages of Multi-Channel High-Speed Machining Center

Multiple X/Y/Z axis designs, multiple independent machining units, different channels can be operated independently, and controlled by a set of CNC systems.
Applications: milling, drilling, and tapping of 3C products; machining of small plates, discs, and shells in industries such as 5G, auto parts, small molds, and medical devices.

Multi-Channel High-Speed Machining Center

Item	Unit	C-400E-2D	C-400-2D	C-400-3D	C-560-2D	T-500-2D	T-700-2D
Table size	mm	400×400	400×400	420×500	500×600	620×400	400×700
X/Y/Z axis travel	mm	400/400/200	400/400/200	400/400/200	500/600/200	400/500/320	400/700/320
Spindle		40,000 r/min, 4.0 kW	40,000 r/min, 4.0 kW	36,000 r/min, 6.0 kW	40,000 r/min, 4.0 kW	20,000 r/min, 3.7/5.5 kW	20,000 r/min, 3.7/5.5 kW
Tool holder specifications	/	IS0 20	IS0 20	IS025	IS0 20	BT30	BT30
Tool magazine	PCS	18T×2	18T×2	21T×3	21T×2	21T×2	21T×2
