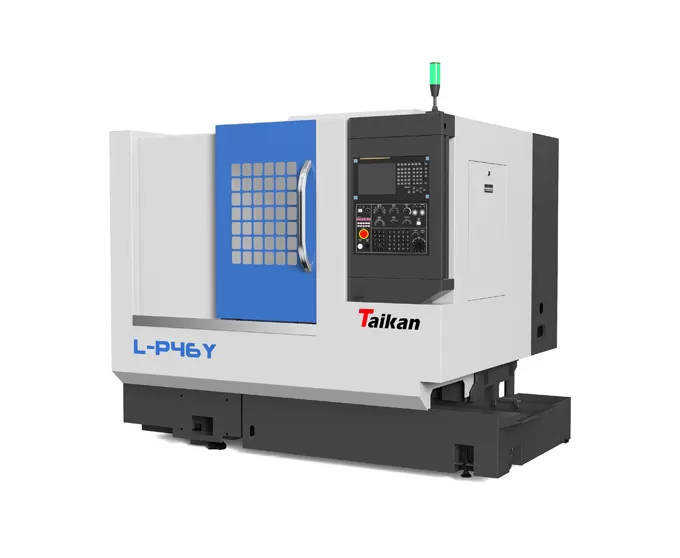

Name: L-P46Y High-precision CNC Horizontal Turning (Milling) Lathe
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristic of L-P46Y High-precision CNC Horizontal Turning (Milling) Lathe

Overall

L-P46Y is a main type of compound machining machine tool. In addition to the functions of CNC lathes, it can also complete plane milling, drilling, tapping, straight groove, spiral groove and gear milling, etc.

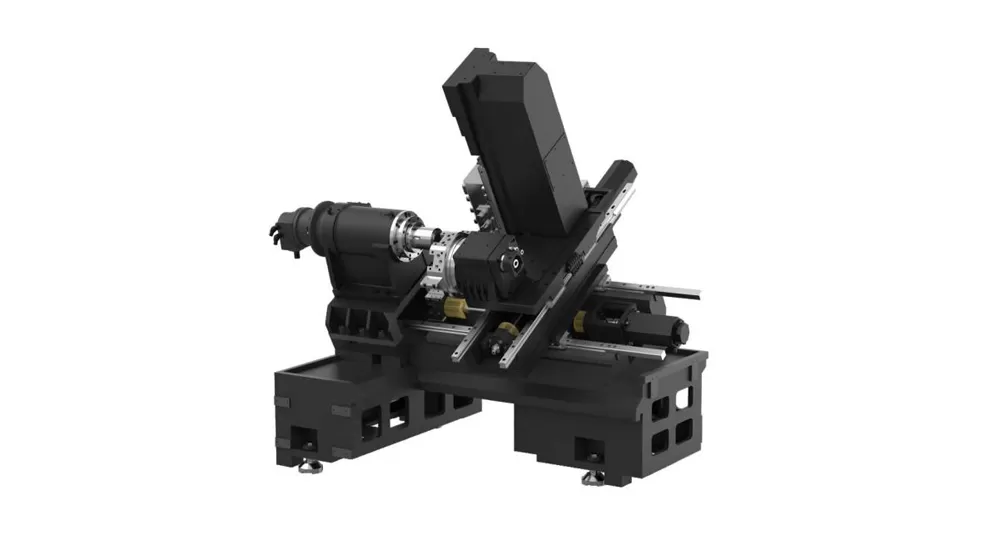

Guide Rail

The two axes are directly connected by the servo motor and the precision ball screw through the elastic coupling, with good force and high positioning accuracy.
The X-axis and Z-axis use high-rigidity linear guides. The span between the rails is calculated to obtain the best span, low resistance, high rigidity, high precision, and the displacement speed can reach 30m/min, which improves work efficiency and shortens processing time.

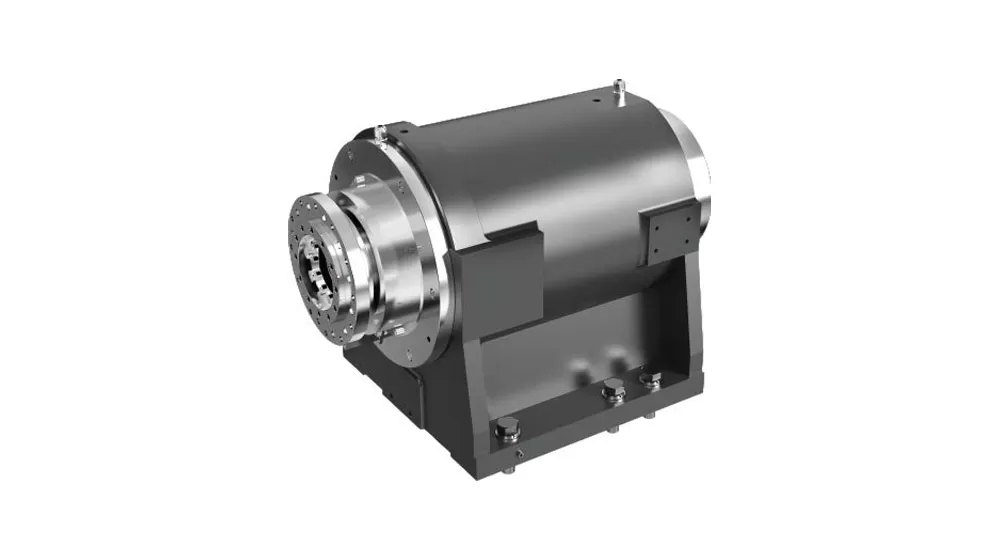

Spindle

The machine adopts an integral sleeve spindle, imported precision spindle bearings, and spindle servo motor drive to achieve high precision, high rigidity, and speed stability. The heat sink-type spindle box design is equipped with symmetrical reinforcement ribs to effectively reduce the spindle temperature rise, increase spindle stability, and increase bearing life.

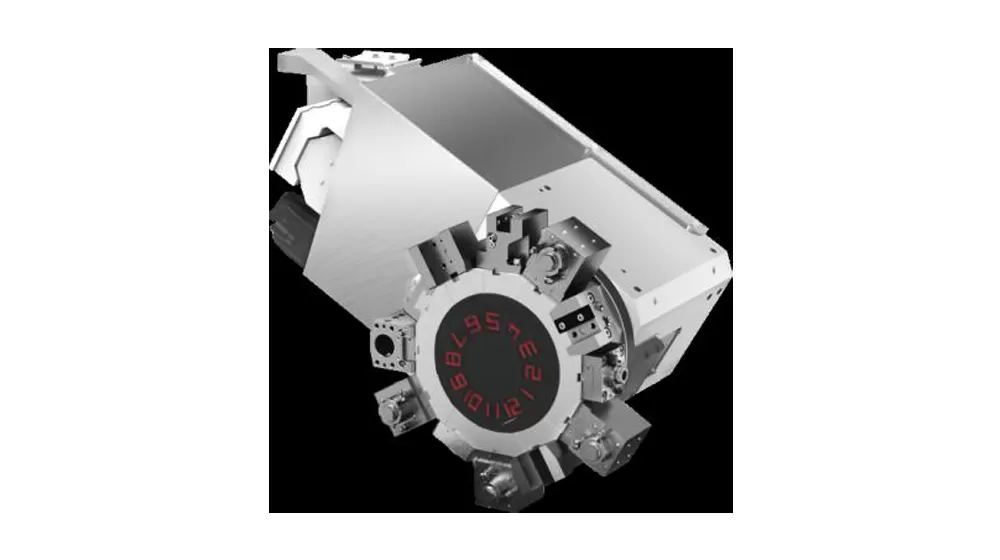

Tool Turret

Adopt eight-station hydraulic rotary turret, with high positioning accuracy, low failure rate, fast tool change, and local tool change.

Application of L-P46Y High-precision CNC Horizontal Turning (Milling) Lathe

This lathe meets the needs of complex parts processing and is widely used in valves, ships, engineering machinery and other fields, especially favored by automotive parts manufacturers.

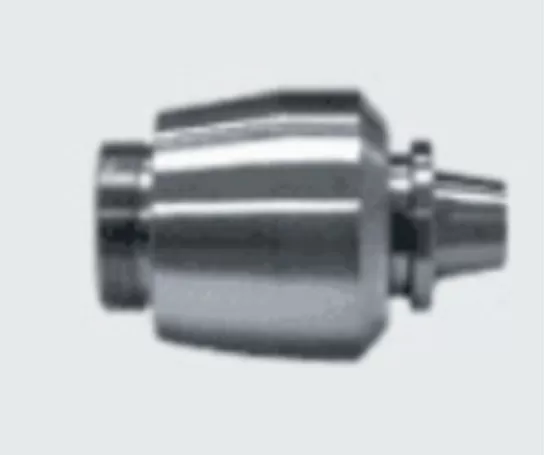

Workpiece Example 1

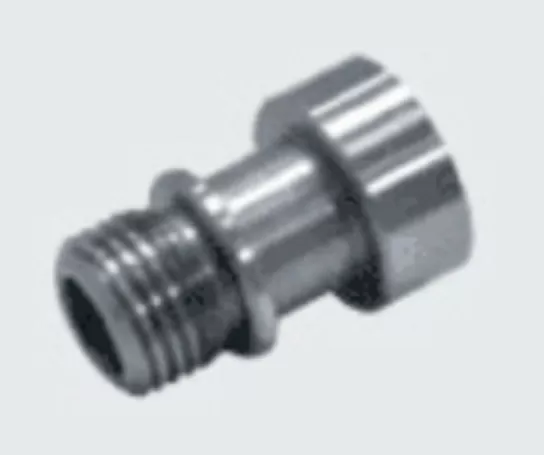

Workpiece Example 2

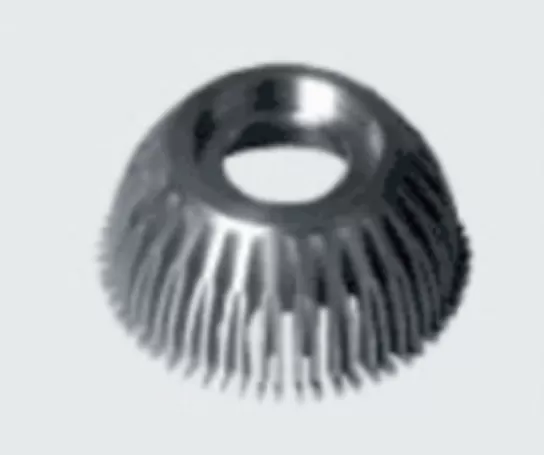

Workpiece Example 3

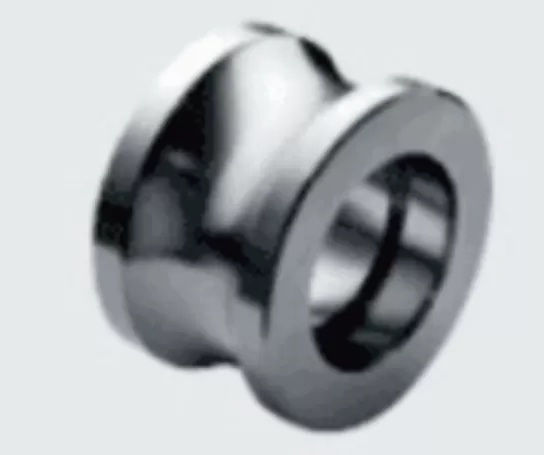

Workpiece Example 4

Specifications of L-P46Y High-precision CNC Horizontal Turning (Milling) Lathe

Item		Unit	L-P46Y	Remarks
Machining range	Max. swing diameter on the bed	mm	φ500
	Machining diameter (disc type)	mm	Φ300
	Machining diameter on cutter	mm	Φ160
	Machining length	mm	350
Travel	X-axis travel	mm	550
	X-axis motor power/stall torque	kW/Nm	1.8/11
	Z-axis travel	mm	450
	Z-axis motor power/stall torque	kW/Nm	1.8/11
	Y-axis travel	mm	210
	Y-axis motor power/stall torque	kW/Nm	1.2/7
Mechanical spindle	Output power (S1/S6)	kW	7.5/11
	Spindle end form		A2-5
	Spindle speed	r/min	0-6000
	Spindle through hole diameter	mm	φ56
	Diameter of tie rod through hole	mm	φ46
Collet	Hollow collet	inch	6
Motor power	Spindle motor rated/continuous half hour	kw	7.5/11
	X-axis motor	kw	1.8
	Y-axis motor	kw	1.2
	Z-axis motor	kw	1.8
	Tool change motor	kw	0.75
	Hydraulic motor	kw	0.75
	Coolant pump motor	kw	0.45
Speed	Rapid traverse speed (X-axis)	m/min	30
	Rapid traverse speed (Z-axis)	m/min	30
	Rapid traverse speed (Y-axis)	m/min	20
	Cutting feed rate	mm/min	1~8000
Tool holder	Tool holder form		Servo tool holder
	Tool capacity	T	8
	External circular tool size	mm	20×20
	Max. boring tool diameter	mm	Φ25
	Turret center height	mm	63
4+4 power head	Chuck specifications		ER25
	A/B axis (4+4 dual motor)	kw	1.2/1.2
	A/B axis (4+4 dual motor)	rpm	0-3000
	Number of A-axis power tools	-	4×ER25
	Number of B-axis power tools	-	4×ER25
Machine tool accuracy	Positioning accuracy (X-axis)	mm	0.006
	Positioning accuracy (Z-axis)	mm	0.006
	Positioning accuracy (Y-axis)	mm	0.006
	Repeated positioning accuracy (X-axis)	mm	0.006
	Repeated positioning accuracy (Z-axis)	mm	0.006
	Repeated positioning accuracy (Y-axis)	mm	0.006
	C Axis positioning accuracy	Arc seconds/degree	10/0.003
Others	Oil tank	L	60
	Water tank	L	100
	Machine size (length × width × height)	mm	2200×2200×2300
	Machine weight (approximate weight)	kg	3100

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
