Name: L-P46G High-precision CNC Gang Tools Lathe
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristic of L-P46G High-precision CNC Gang Tools Lathe

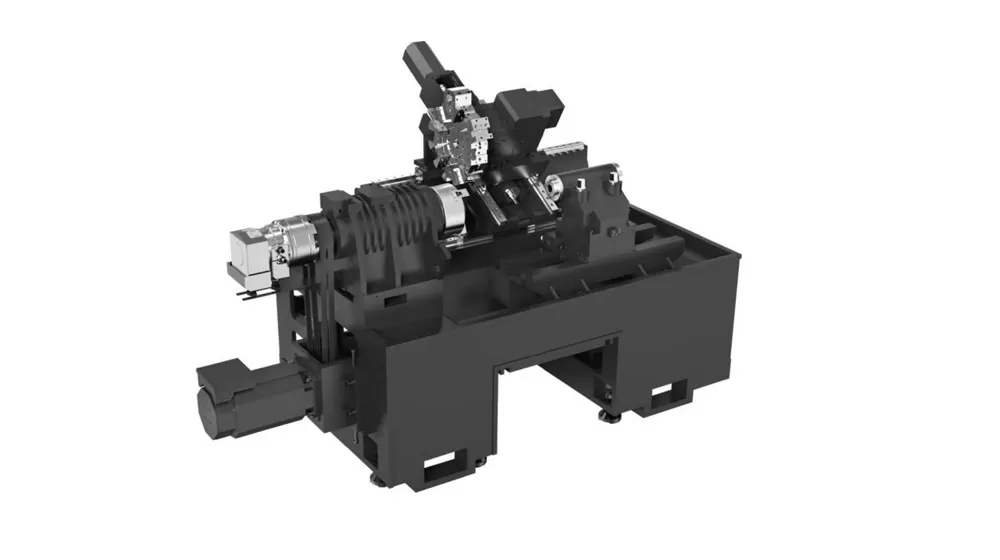

Overall

The CNC lathe adopts a box-type bed structure, high-strength HT300 cast iron, dense structure, good strength, appropriate hardness, low friction coefficient, and self-lubricating property. The base bed has an integral box structure, which greatly enhances the overall rigidity and stability of the machine tool, and has the function of absorbing vibration, reducing tool wear and improving workpiece quality.

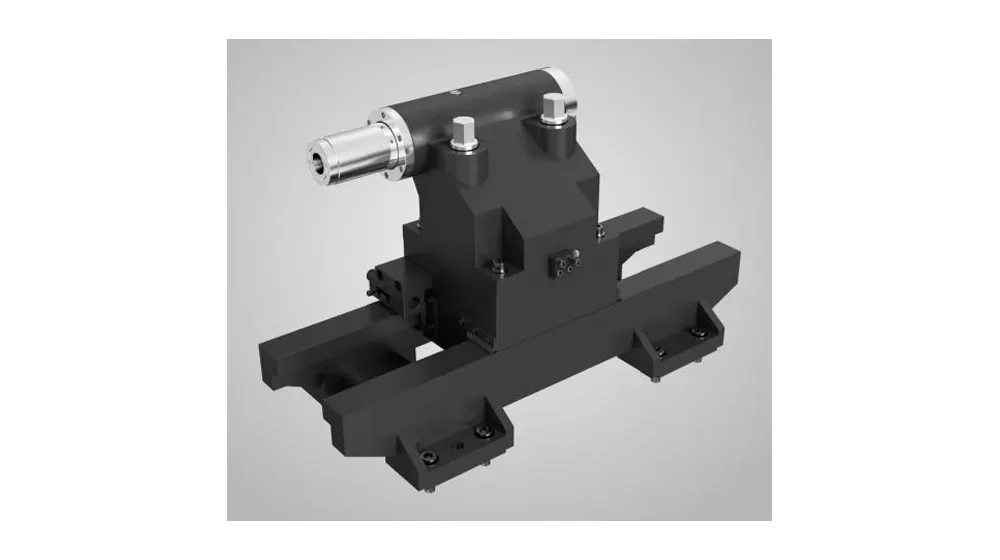

Hydraulic Sleeve Tailstock

The large span hard rail structure design is of high rigidity, strong performance and strong bearing capacity. The dovetail structure makes the lower pressure plate more reliable when locked.

Spindle

The machine adopts an integral sleeve spindle, imported precision spindle bearings, and spindle servo motor drive to achieve high precision, high rigidity, and speed stability.
The heat sink-type spindle box design is equipped with symmetrical reinforcement ribs to effectively reduce the spindle temperature rise, increase spindle stability, and increase bearing life.

Tool

Use full gang tool.

Application of L-P46G High-precision CNC Gang Tools Lathe

This lathe can be widely used in instruments, meters, light industry, electronics, medical equipment, film machinery and other industries for processing single pieces, small batches and large batches. It is especially suitable for processing small non-ferrous metal parts and shafts and discs with complex shapes.

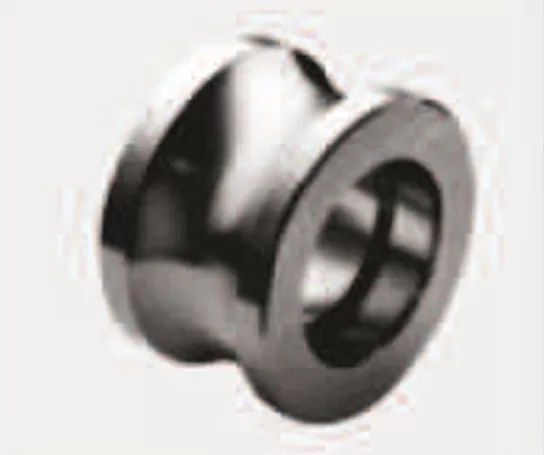

Workpiece Example 1

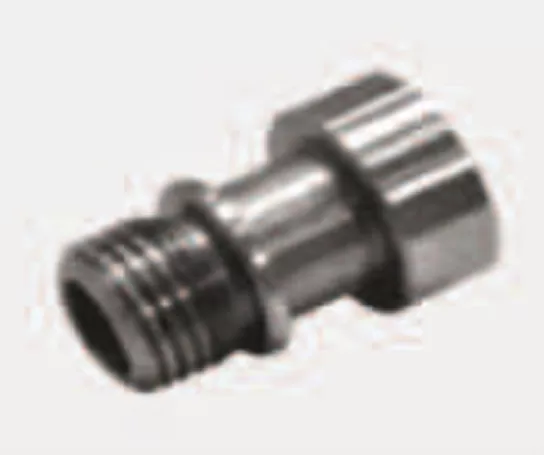

Workpiece Example 2

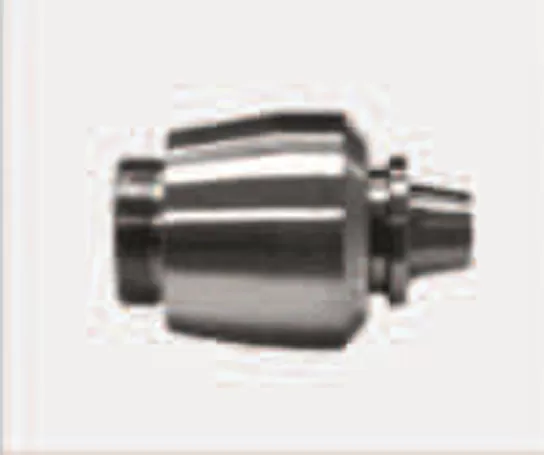

Workpiece Example 3

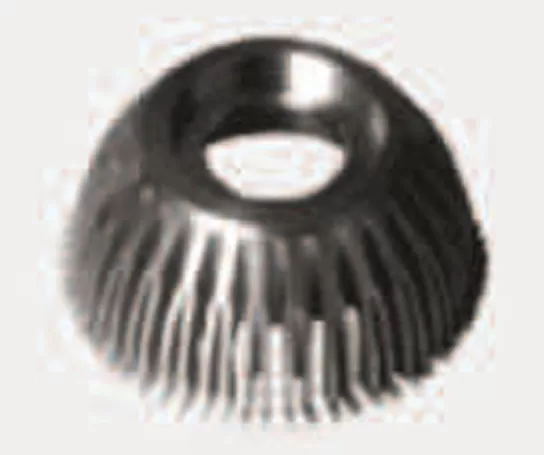

Workpiece Example 4

Specifications of L-P46G High-precision CNC Gang Tools Lathe

Name		Unit	L-P46G	Remarks
Machining range	Max. swing diameter on the bed slide	mm	Φ420
	Max. machining length	mm	330
	Machining diameter (disc type)	mm	Φ300
	Machining diameter on the cutter	mm	Φ125
Travel	X-axis travel	mm	900
	X-axis motor power/stall torque	kW/Nm	1.2/7
	Z-axis travel	mm	330
	Z-axis motor power/stall torque	kW/Nm	1.2/7
Spindle	Output power (S1/S2)	kW	5.5/7.5
	Spindle end type		A2-5
	Spindle speed	r/min	0-6000
	Spindle through hole diameter/bar diameter	mm	Φ56/Φ46
Fixture	Hollow collet	inch	6
Speed	Rapid traverse speed (X axis)	m/min	30
	Rapid traverse speed (Z axis)	m/min	30
	Cutting feed rate	mm/min	/
Tool holder	Tool holder type		full gang tool
	Quantity	PCS	7
	Cutter body size	mm	20´20
	Max. boring tool diameter	mm	20
Accuracy	Positioning accuracy (X axis)	mm	0.003
	Positioning accuracy (Z axis)	mm	0.003
	Repeatability ((X axis)	mm	0.002
	Repeatability ( (Z axis)	mm	0.002
Othes	Equipment capacity	kVA	10
	Coolant tank capacity	L	100
	Machine size	mm	2100´1600´1950
	Weight (approx.)	kg	2650

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
