High Precision CNC Horizontal Lathe
Gang Tool
The tool holder is in the form of a dovetail slot tool holder or a T-slot tool holder

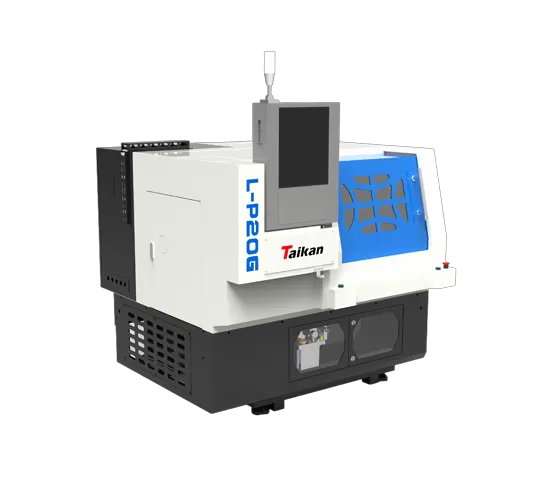

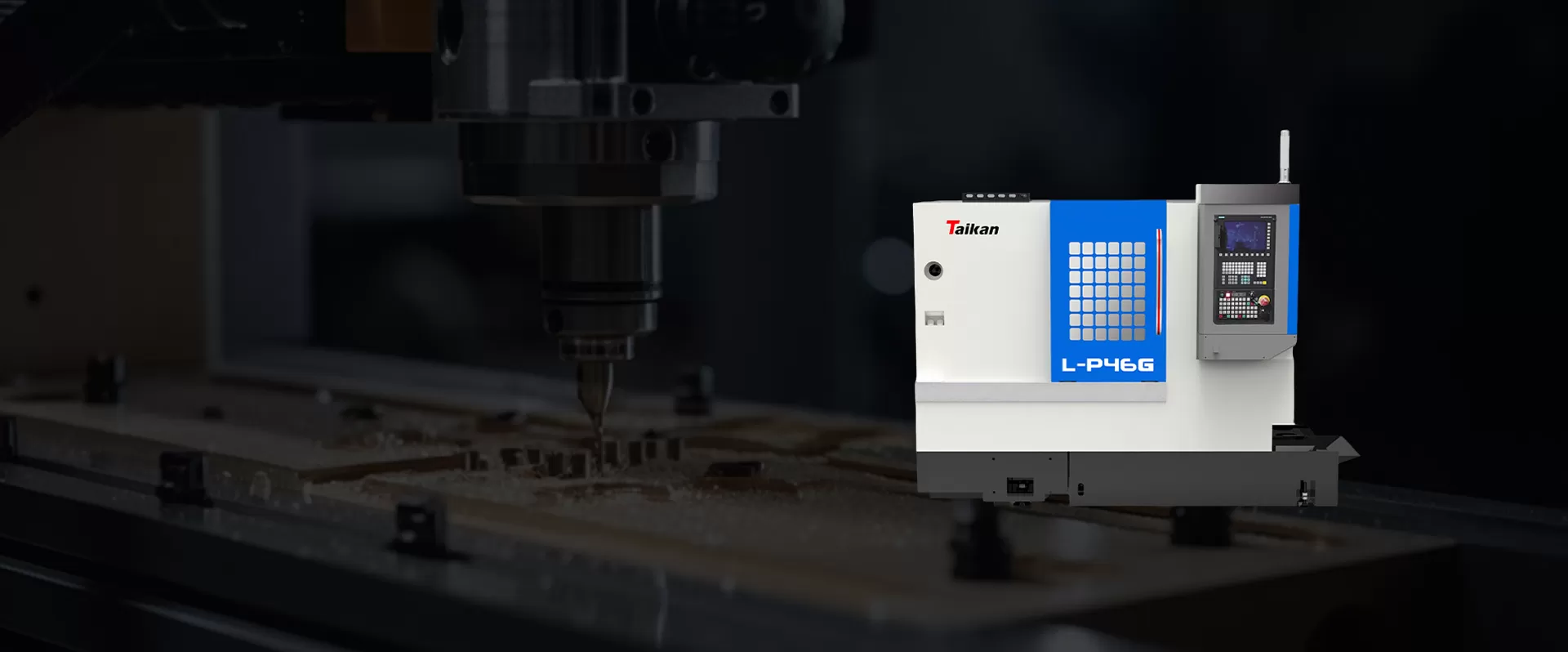

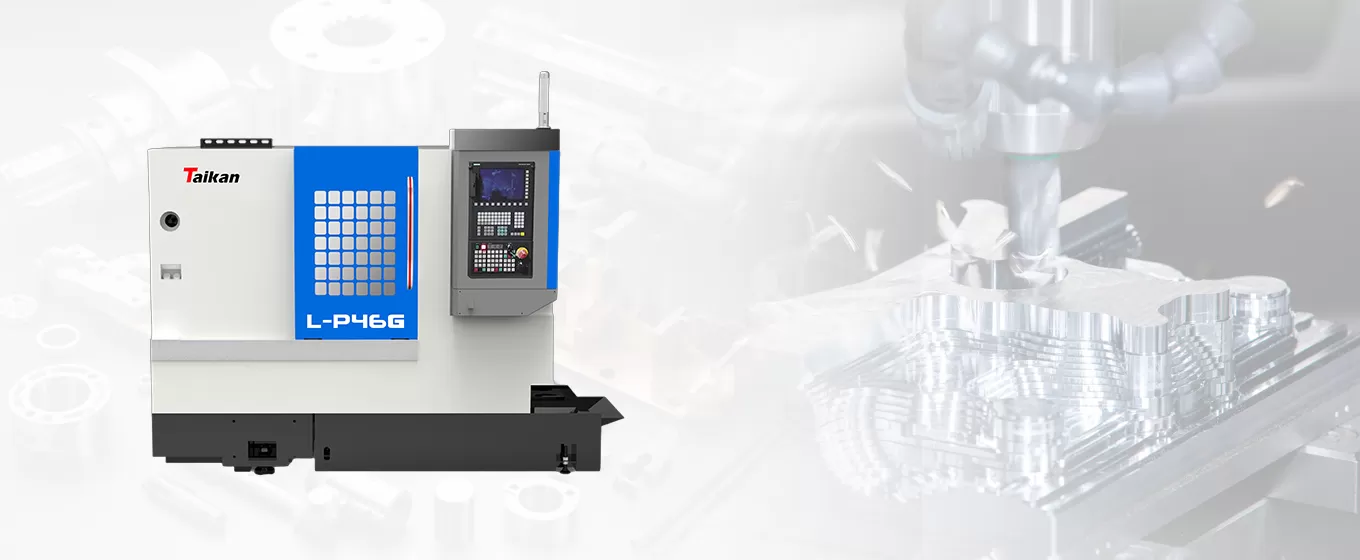

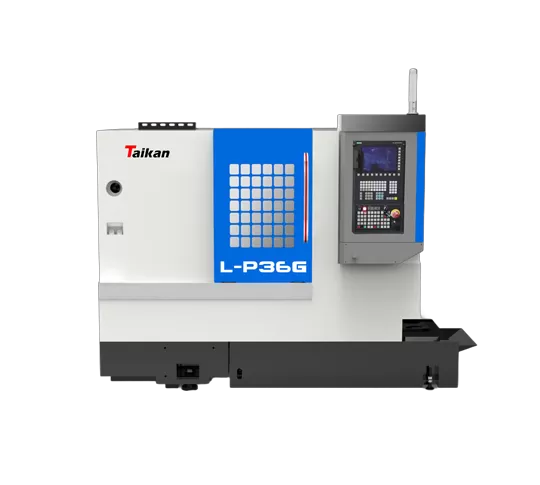

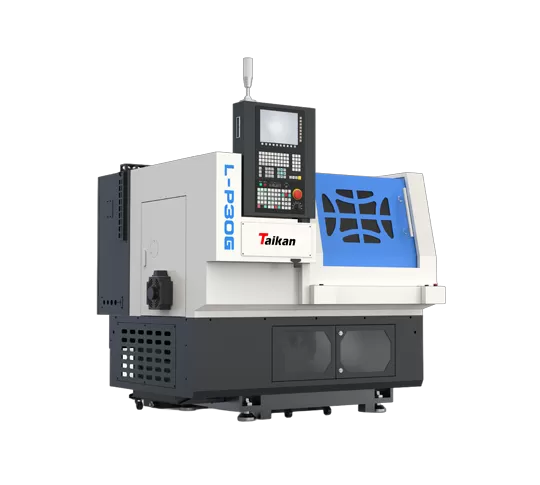

Item | Unit | L-P20G | L-P30G | L-P36G | L-P46G |
Max. swing diameter on the bed | mm | Ø 240 | Ø 240 | Ø 420 | Ø 420 |
Max. turning length | mm | 1,000 | 1,000 | 330 | 330 |
Max. turning diameter | mm | Ø 100 | Ø 100 | Ø 300 | Ø 300 |
Spindle head clamping form | mm | Ø 20mm Spring chuck | Ø 30mm Spring chuck | 5” Hollow Collet | 6” Hollow Collet |
Max. spindle speed | r/min | 6,000 | 6,000 | 6,000 | 6,000 |
Tool holder form | gang tool | gang tool | Full gang tool | Full gang tool | |
Quantity | PCS | - | - | 7 | 7 |
