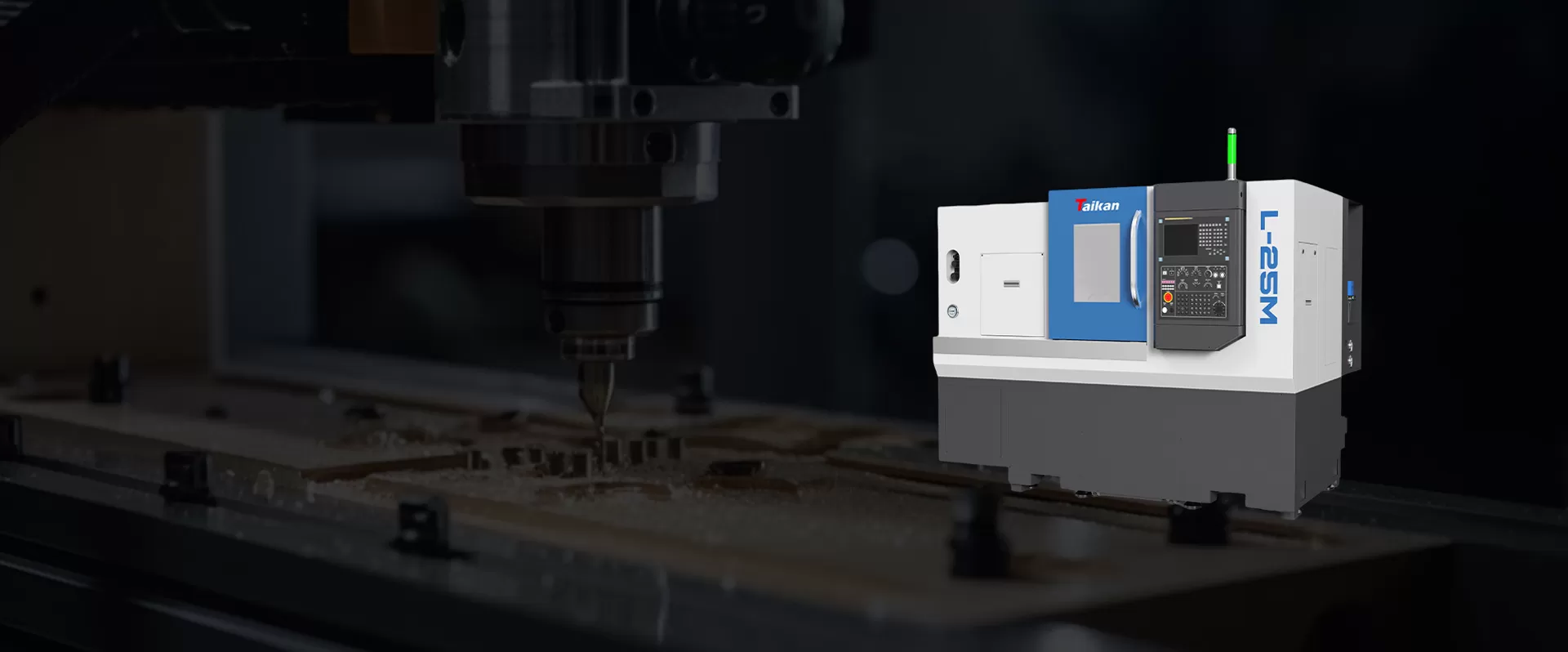

High Precision CNC Horizontal Turning(Milling) Compound

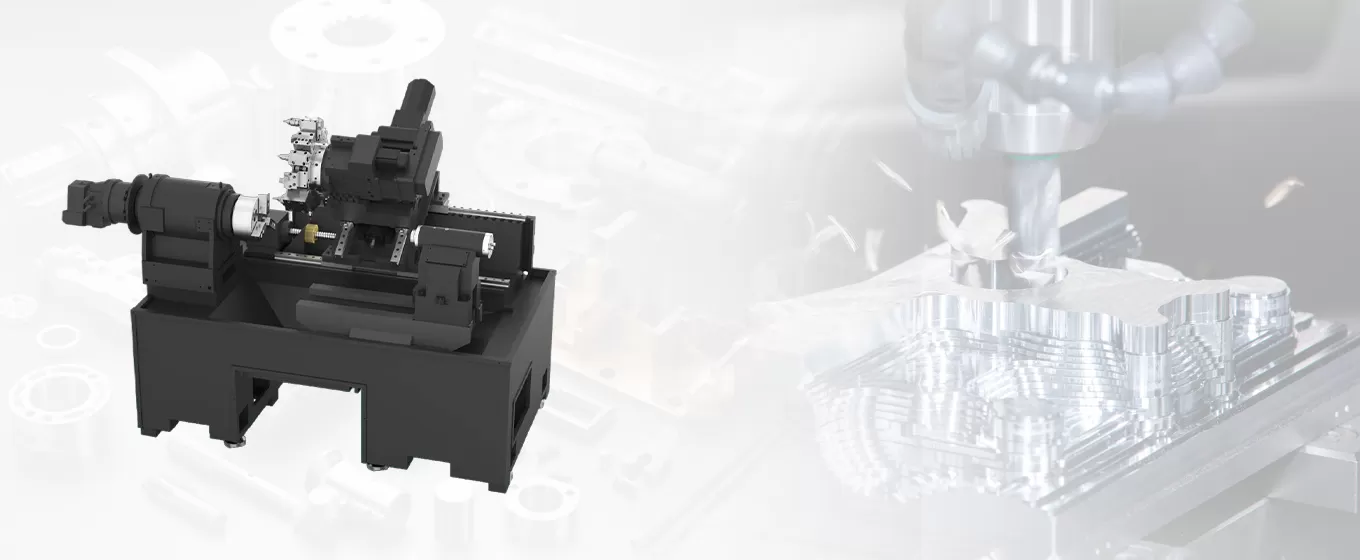

Equipped with BMT45 / BMT55 power turret and hydraulic sleeve tailstock with live center structure.
Mechanical spindle as standard,motorized spindle as optional, spindle with C-axis indexing function and hydraulic brake assist system.
30° overall inclined bed, feed axis uses linear guide.
Item | Unit | L-25M | L-35M | L-35MP | L-45M | L-45MP |
Chuck size | inch | 6” | 8” | 8” | 10” | 10” |
Max. swing diameter on bed | mm | Ø 520 | Ø 520 | Ø 600 | Ø 600 | Ø 600 |
Max. machining diameter (shaft/disc) | mm | Ø 200 / Ø 250 | Ø 300 / Ø 350 | Ø 380 / Ø 450 | Ø 380/ Ø 450 | Ø 380 / Ø 450 |
Max. machining length | mm | 400 | 400 | 900 | 400 | 900 |
Spindle head type | mm | A2-5 | A2-6 | A2-6 | A2-8 | A2-8 |
Max. spindle speed | r/min | 5300 | 4,000 | 4,000 | 2800 | 2500 |
Turret type and tool capacity | BMT45/12 | BMT45/12 | BMT55/12 | BMT55/12 | BMT55/12 |
