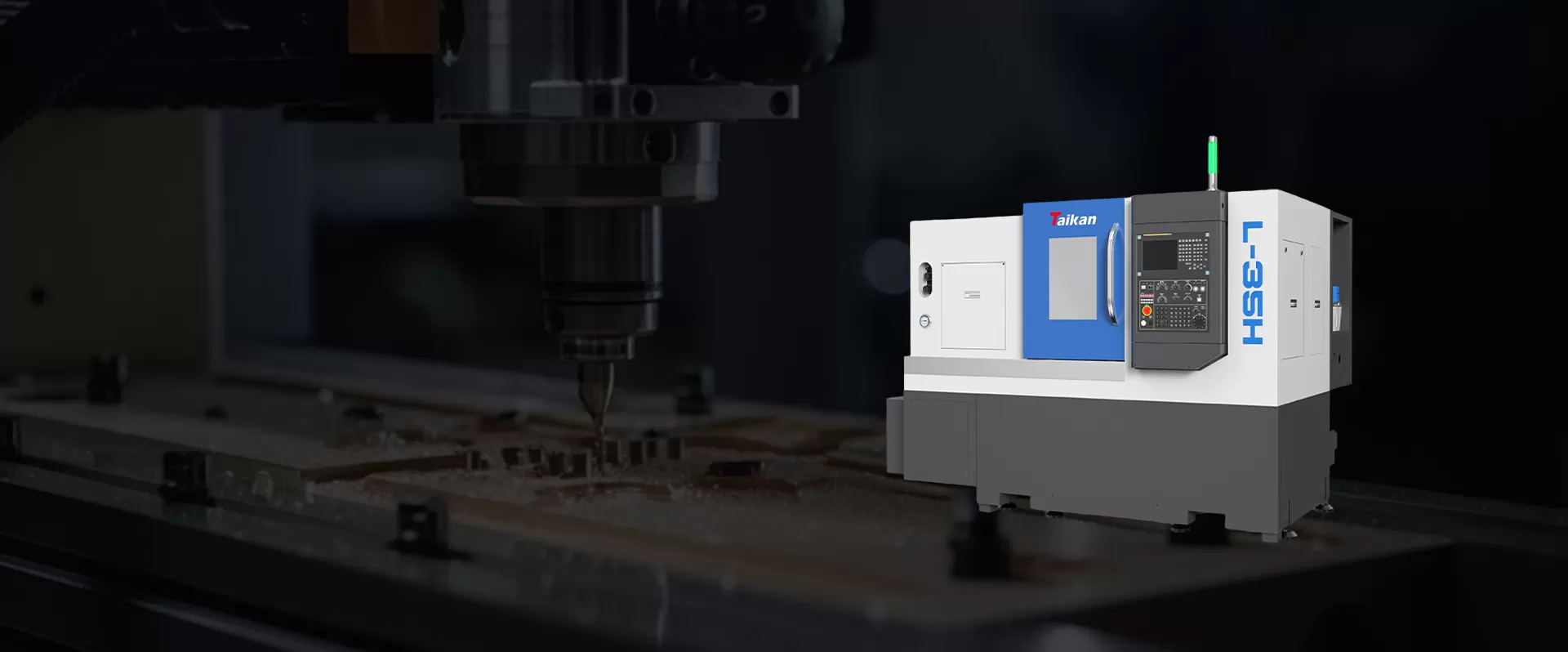

High Precision CNC Horizontal Lathe
Turret Lathe

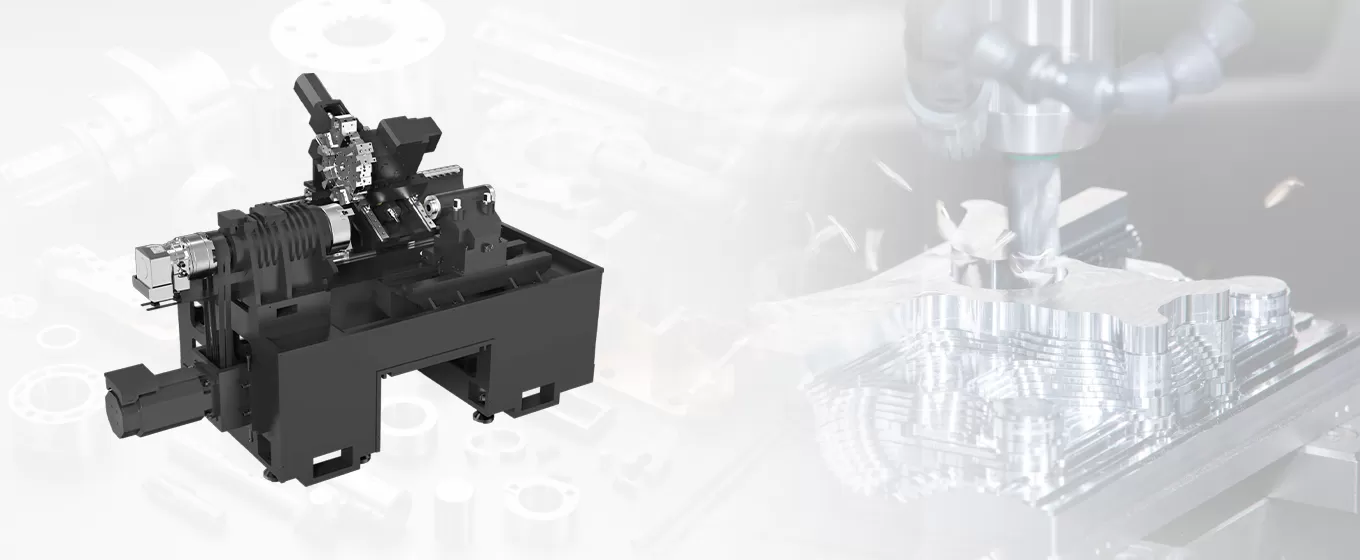

30° integrated high-rigidity inclined bed structure, X/Z axis adopts heavy-duty roller guide rails
Equipped with mechanical turning spindle, 12-bit servo turret
Item | Unit | L-25H | L-35H | L-35HP | L-45H | L-45HP |
Chuck size | inch | 6” | 8” | 8” | 10” | 10” |
Max. swing diameter on bed | mm | Ø 500 | Ø 520 | Ø 600 | Ø 600 | Ø 600 |
Max. machining diameter (shaft/disc) | mm | Ø 200 / Ø 250 | Ø 300/ Ø 350 | Ø 380/ Ø 450 | Ø 380/ Ø 450 | Ø 380 / Ø 450 |
Max. machining length | mm | 450 | 450 | 1,000 | 450 | 1,000 |
Spindle head type | mm | A2-5 | A2-6 | A2-6 | A2-8 | A2-8 |
Max. spindle speed | r/min | 6,000 | 4,000 | 4,000 | 2800 | 2800 |
Turret type and tool capacity | PSC | Servo/12 | Servo/12 | Servo/12 | Servo/12 | Servo/12 |
