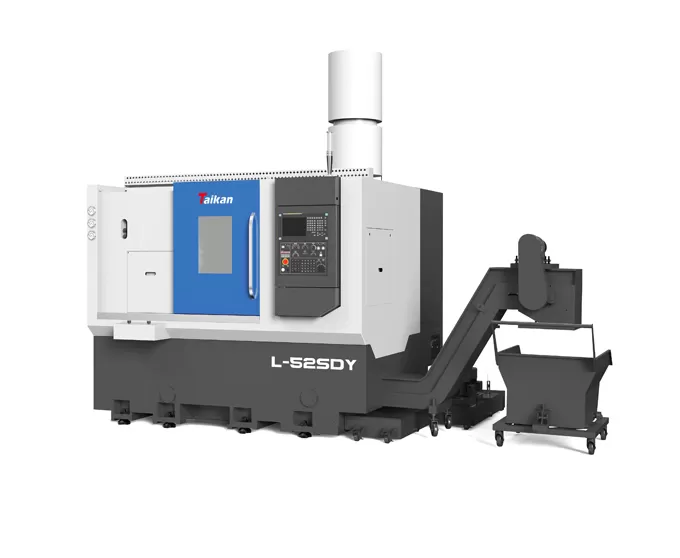

Name: L-52SDY High-precision CNC Horizontal Turning (Milling) Lathe
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristic of L-52SDY High-precision CNC Horizontal Turning (Milling) Lathe

Overall

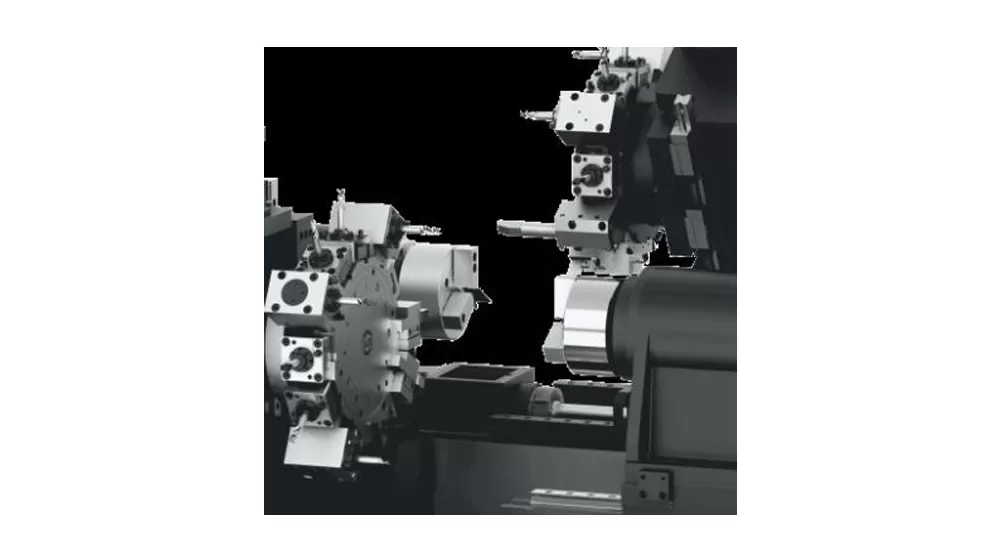

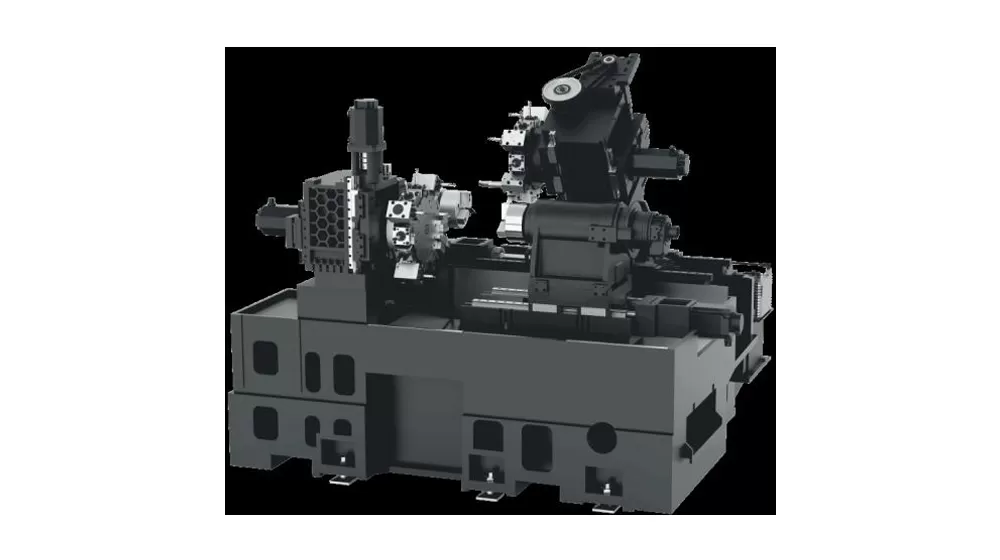

Dual-spindle and dual-turret CNC turning and milling machine tool
Fully enclosed protection, single left sliding door, optional automatic discharge device, independent chip collection water tank, automatic chip conveyor, good chip removal performance

Guide Rail

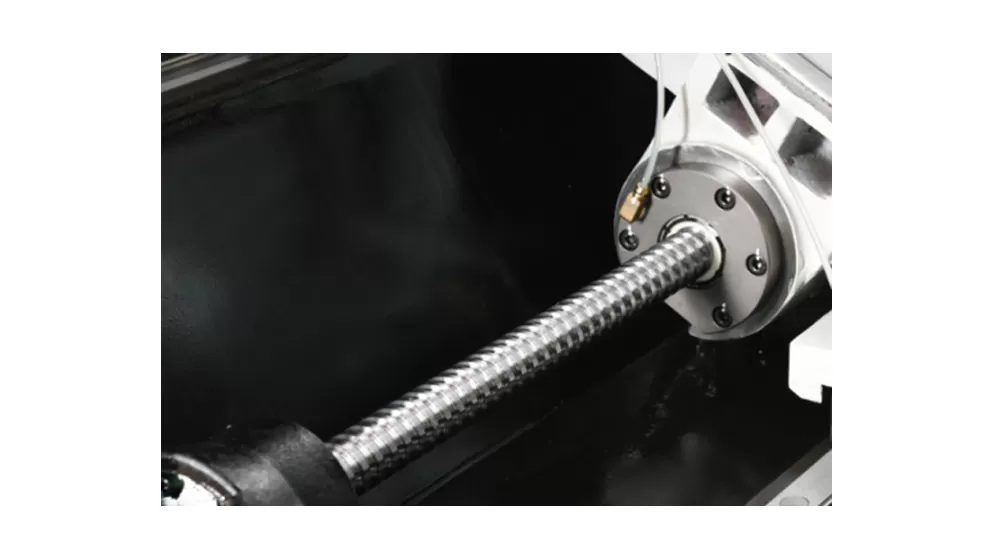

Adopt Japanese THK or Taiwan PMI linear rolling or roller guide rails, Japanese THK or Taiwan PMI ball screw drive. Good dynamic characteristics, high precision and strong rigidity.
It adopts preloaded linear roller guide and ball screw, which has the characteristics of fast speed and high processing precision.

Spindle

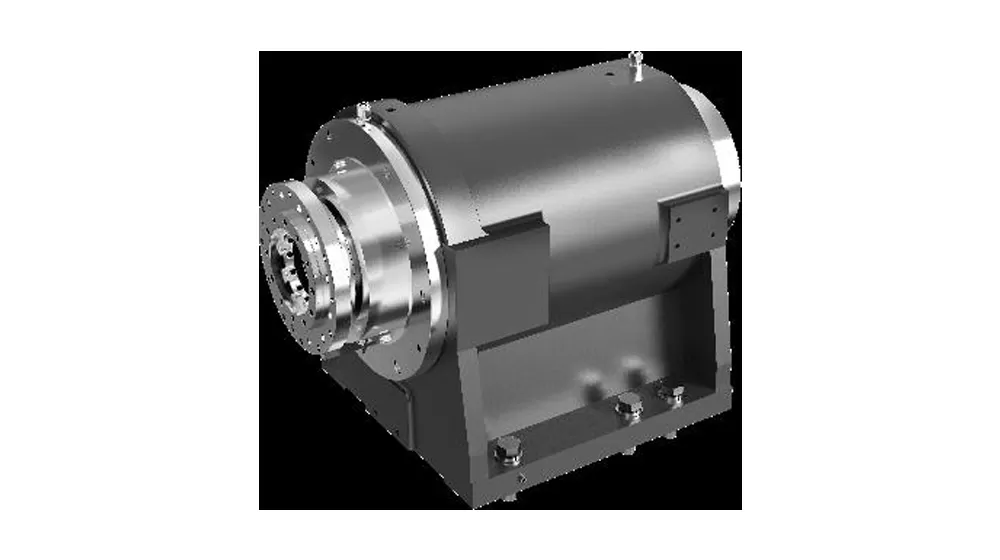

The permanent magnet synchronous electric spindle has good dynamic characteristics, high precision and strong rigidity.
Synchronous servo electric spindle has high precision, fast acceleration and deceleration, and saves energy.

Tool

Relying on the servo lifting power turret, it has high precision and fast tool change speed, can complete complex processing requirements, and can replace machining centers and engraving machines.

Application of L-52SDY High-precision CNC Horizontal Turning (Milling) Lathe

This lathe can process workpieces with diameters of 20-130 mm and lengths of 2.5-130 mm; the maximum rotation diameter of the saddle is 320 mm. It can process short shaft (or disc) parts with complex geometric shapes, various sizes and high precision requirements.

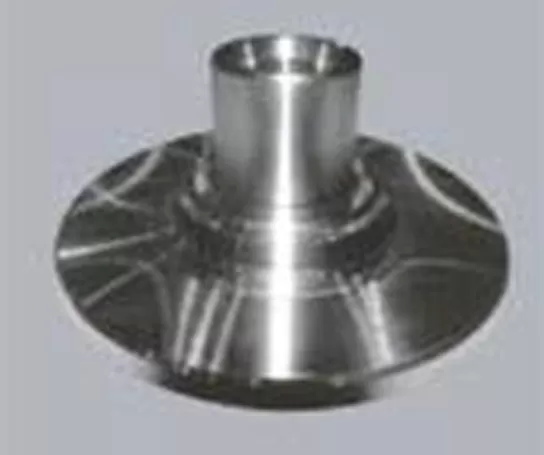

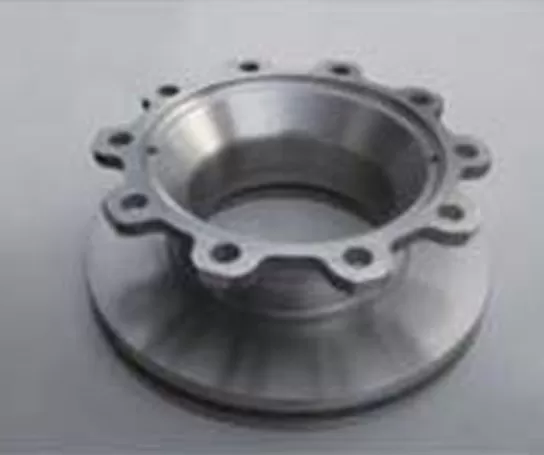

Workpiece Example 1

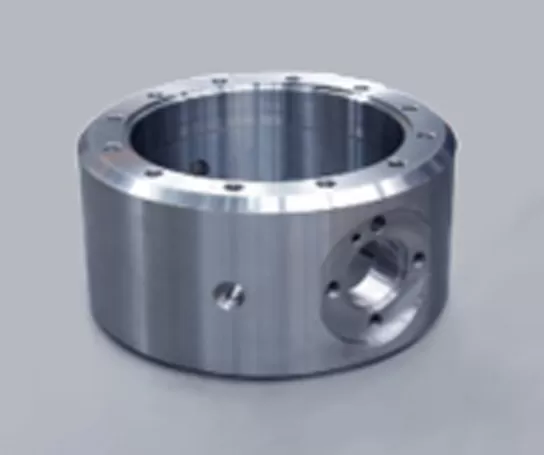

Workpiece Example 2

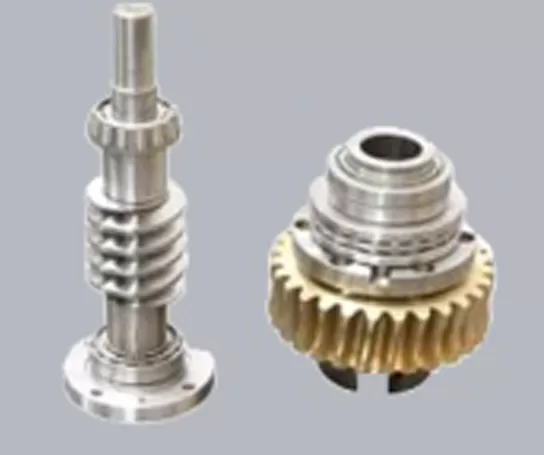

Workpiece Example 3

Workpiece Example 4

Specifications of L-52SDY High-precision CNC Horizontal Turning (Milling) Lathe

Item		Unit	L-52SDY1
Machining range	Max. swing diameter on the bed	mm	Φ570
	Max. turning diameter on the saddle	mm	Φ320
	Max. turning diameter	mm	Φ130
	Max. turning length	mm	130
Travel	X1, X2 axis travel	mm	200、300
	Y1 axis travel	mm	±50
	Y1 effective machining travel	mm	±45
	Z1, Z2 axis travel	mm	320、300
Main/Sub-spindle	Chuck size	inch	8"
	Max. speed	rpm	4500
	Basic speed	rpm	1500
	Spindle end type		A2-6
	Spindle through hole size	mm	14.5/18
	Motorized spindle power	Kw	Φ67
	Adjustable bar diameter	mm	Φ52
Milling spindle	Max. speed	rpm	4500
	Drilling capacity	mm	Φ16×1.5
	Tapping capacity	[mm] x	M12x1.75
	Tapping capacity	[mm]	M12x1.75
	Milling spindle motor	KW	2.3
	Turret interface		BMT45
Feed speed	X-axis rapid traverse speed	mm/min	18000
	Z-axis rapid traverse speed	mm/min	18000
	Y-axis rapid traverse speed	mm/min	10000
Motor	Spindle motor	KW	＞11
Motor	Cooling pump motor	KW	0.75
Electricity/Air source	Power supply capacity (continuous fixed rate)	KVA/Kw	64KVA/44.75KW
Electricity/Air source	Air source	L/min	0.5Mpa/100
cooling	Water tank capacity	L	130
Size/weight	Distance from spindle center to ground	mm	1070
	Machine height	mm	2060
	Occupied area (L×W)	mm×mm	2410 (without chip conveyor) × 2210
	Machine weight (approx.)	Kg	5000

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
