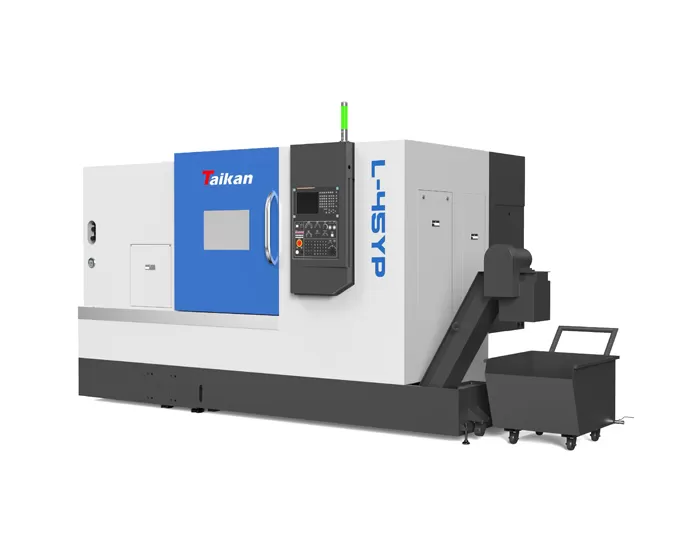

Name: L-45YP High-precision CNC Horizontal Turning (Milling) Lathe
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristic of L-45YP High-precision CNC Horizontal Turning (Milling) Lathe

Overall

The machine is fully enclosed for protection, automatic chip removal, automatic lubrication, and automatic cooling. The basic large parts are all made of high-quality resin sand molding and high-strength cast iron materials, so that the machine tool has high rigidity and stable accuracy.

Guide Rail

The guide rails are of the rolling type, and the drive components use high-speed, quiet ball screws, offering fast speeds, low heat generation, and high positioning accuracy.

Spindle

The main drive system of this machine tool adopts high-performance, high-torque mechanical spindle drive with C-axis indexing function and hydraulic brake auxiliary system, and the spindle speed range is 0-2500r/min.

Tool

This machine tool uses a BMT55 powered turret (including the Y axis), which has fast tool change speed and high reliability.

Application of L-45YP High-precision CNC Horizontal Turning (Milling) Lathe

This lathe meets the needs of complex parts processing and is widely used in valves, ships, engineering machinery and other fields, especially favored by automotive parts manufacturers.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of L-45YP High-precision CNC Horizontal Turning (Milling) Lathe

Item		Unit	L-45YP	Remarks
Processing range	Max. rotation diameter	mm	φ600
	Max. processing diameter (axis/plate)	mm	φ380/φ450
	Max. processing length	mm	900	800 (optional large motor)
	Max. bar diameter	mm	Φ75
Travel	X –axis travel	mm	240
	X –axis motor power/stall torque	kW/Nm	1.8/11
	Y –axis travel	mm	100（±50）
	Y –axis motor power/stall torque	kW/Nm	1.8/11
	Z –axis travel	mm	950	830 (optional large motor)
	Z –axis motor power/stall torque	kW/Nm	1.8/11
Spindle	Output power(S1/S6)	kW	15/18.5
	Spindle end form		A2-8
	Spindle rotary speed	r/min	0-2500
	Hole diameter	mm	Φ87
Chuck	Hydraulic 3-jaw chuck	inch	10	Hollow
Tailstock	Tailstock sleeve diameter/travel	mm	φ100/150	Optional
Tailstock	Tailstock sleeve taper hole	Morse	Morse 5#	Live center
Speed	X-axis rapid traverse speed	m/min	30
	Y-axis rapid traverse speed	m/min	10
	Z-axis rapid traverse speed	m/min	30
	Cutting Feed Rate	mm/min	1-8000
Tool holder	Tool capacity	T	12
	Milling head motor power/stall torque	kW	2.7/12-46	αi S 12/4000-B
	Milling tool max. speed	r/min	4000
	Milling tool handle specification	mm	BMT55
	Turning tool holder specification	mm	25*25
	Max. boring tool diameter	mm	φ32
Tool holder processing capacity	Maximum milling capacity of power tool		Milling cutter diameter×milling depth×feed	45 Steel
	Maximum drilling capacity of power tool		Drill diameter × feed	45 Steel
	Maximum tapping capacity of power tool		M10×1.5	45 Steel
Accuracy	X axis positioning accuracy	mm	0.008
	Y axis positioning accuracy	mm	0.02
	Z axis positioning accuracy	mm	0.012
	C axis positioning accuracy	arc sec	51
	X axis repeatabilitys	mm	0.004
	Y axis repeatability	mm	0.005
	Z axis repeatability	mm	0.006
	C axis repeatability	arc sec	20
Others	Power Supply Capacity	kVA	30
	Coolant volume	L	250
	Dimension	mm	3585×1880×2015
	Total weight	kg	4800

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
