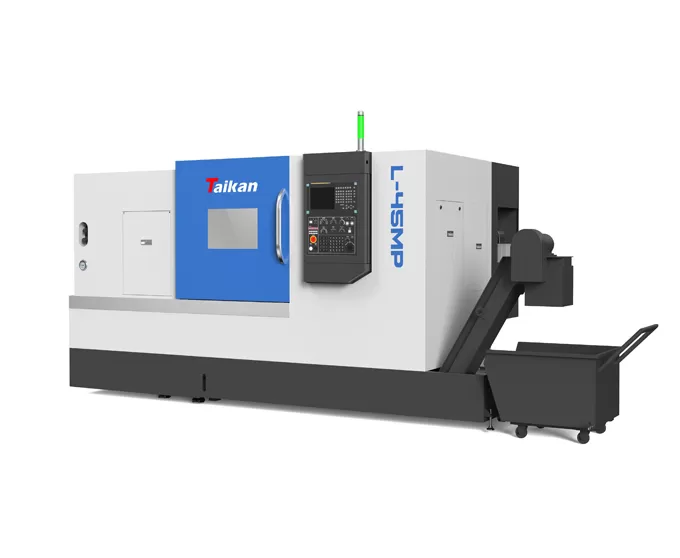

Name: L-45MP High-precision CNC Horizontal Turning (Milling) Lathe
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of L-45MP High-precision CNC Horizontal Turning (Milling) Lathe

Overall

The machine adopts an integrated machine, electrical, and hydraulic design with a 30°slant bed structure. It is compact, highly rigid, allows for smooth chip removal, and is easy to operate.

Guide Rail

The guide rails are of the rolling type, and the drive components use high-speed, quiet ball screws, offering fast speeds, low heat generation, and high positioning accuracy.

Spindle

The main transmission system of this machine tool adopts high-performance, high-torque mechanical spindle transmission, with C-axis indexing function and hydraulic brake auxiliary system, and the spindle speed range is 0-2500r/min.

Tool Turret

This machine tool adopts BMT55 power turret, which has fast tool change speed and high reliability.

Application of L-45MP High-precision CNC Horizontal Turning (Milling) Lathe

This lathe meets the needs of complex parts processing and is widely used in valves, ships, engineering machinery and other fields, especially favored by automotive parts manufacturers.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of L-45MP High-precision CNC Horizontal Turning (Milling) Lathe

Items		Unit	L-45MP	Remarks
Processing range	Max. rotation diameter	mm	φ600
	Max. processing diameter (axis/plate)	mm	φ380/φ450
	Max. processing length	mm	900
	Max. bar diameter	mm	Φ75
Travel	X –axis travel	mm	240
	X –axis motor power/stall torque	kW/Nm	2.2/12
	Z –axis travel	mm	950
	Z –axis motor power/stall torque	kW/Nm	2.2/12
Spindle	Output power(S1/S6)	kW	15
	Spindle end form		A2-8
	Spindle rotary speed	r/min	0-2500
	Hole diameter	mm	Φ87
Chuck	Hydraulic 3-jaw chuck	inch	10	Hollow
Tailstock	Tailstock sleeve diameter/travel	mm	φ100/150
Tailstock	Tailstock sleeve taper hole	Morse	Morse 5#	Live center
Speed	X-axis rapid traverse speed	m/min	30
	Z-axis rapid traverse speed	m/min	30
	Cutting Feed Rate	mm/min	1-8000
Tool holder	Tool capacity	T	12
	Power head motor power/stall torque	kW	2.2/12
	Power tool maximum speed	r/min	4000
	Tool holder specifications	mm	BMT55
	Turning tool holder specifications	mm	25*25
	Boring tool holder maximum diameter	mm	φ32
Accuracy	X axis positioning accuracy	mm	0.008
	Z axis positioning accuracy	mm	0.012
	C axis positioning accuracy	arc sec	51
	X axis repeatability	mm	0.004
	Z axis repeatability	mm	0.006
	C axis repeatability	arc sec	20
Others	Power Supply Capacity	kVA	30
	Coolant volume	L	250
	Dimension	mm	3585×1880×1755
	Total weight	kg	4500

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
