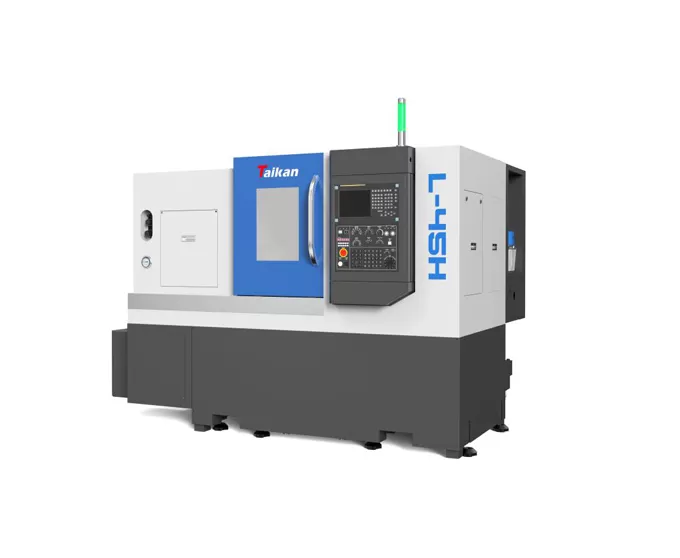

Name: L-45H High-precision CNC Horizontal Lathe
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristic of L-45H High-precision CNC Horizontal Lathe

Overall

The 30° overall inclined bed has the advantages of compact structure, high rigidity, smooth chip removal, and convenient operation;
The machine tool is fully enclosed for protection, automatic chip removal, automatic lubrication, and automatic cooling.

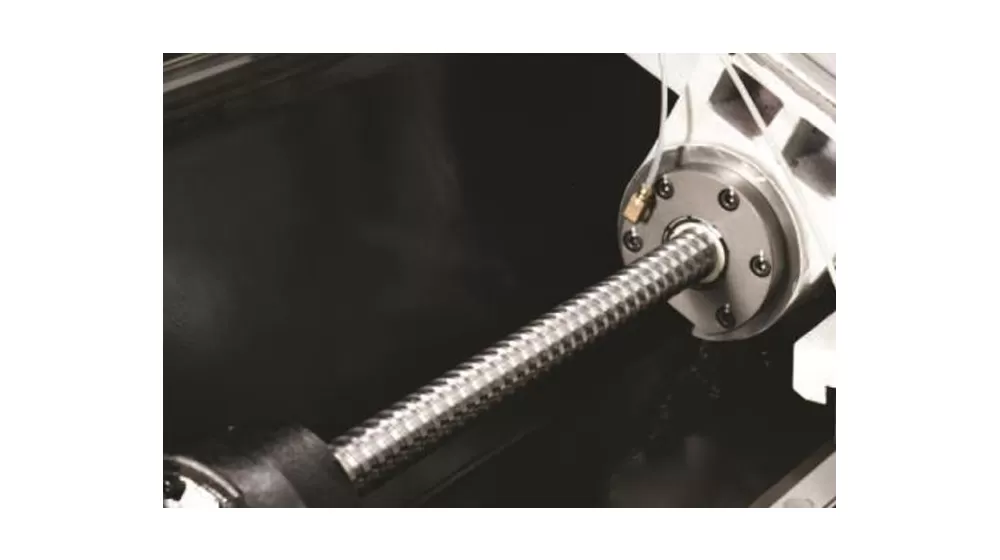

Guide rail

Adopt rolling guide design and high-speed silent ball screw, which has the advantages of high speed, low heat generation and high positioning accuracy;

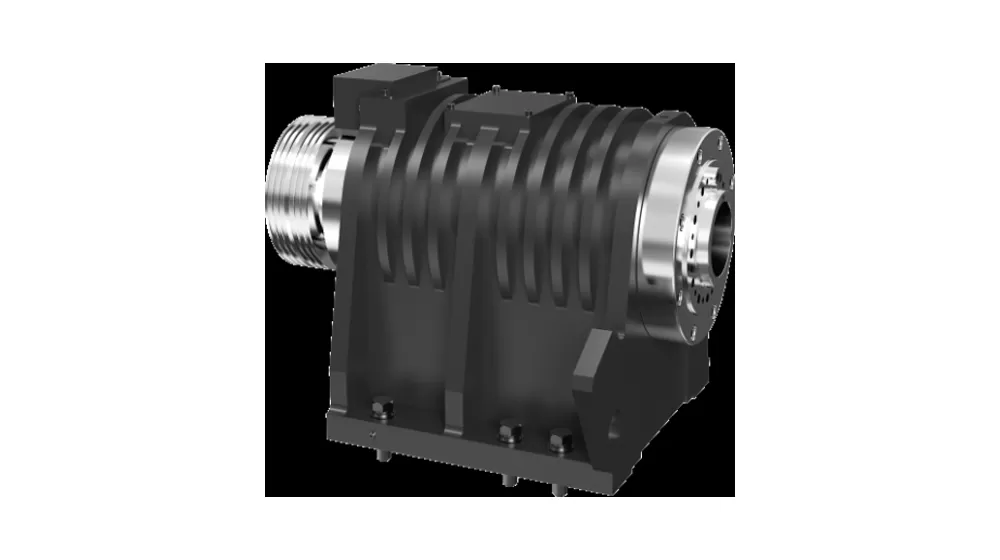

Spindle

The spindle speed range is 0-2800r/min.
The front support of the spindle adopts double-row cylindrical roller bearings and two-link high-precision angular contact ball bearings, and the rear support adopts double-row cylindrical roller bearings to meet the axial and radial cutting force bearing requirements..

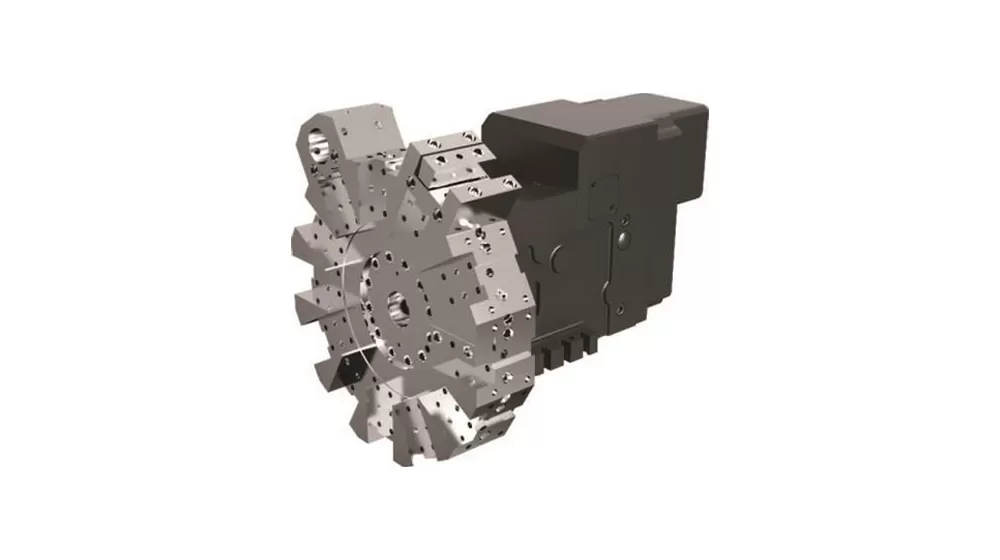

Tool

This machine tool adopts servo tool turret, which has fast tool changing speed and high reliability.

Application of L-45H High-precision CNC Horizontal Lathe

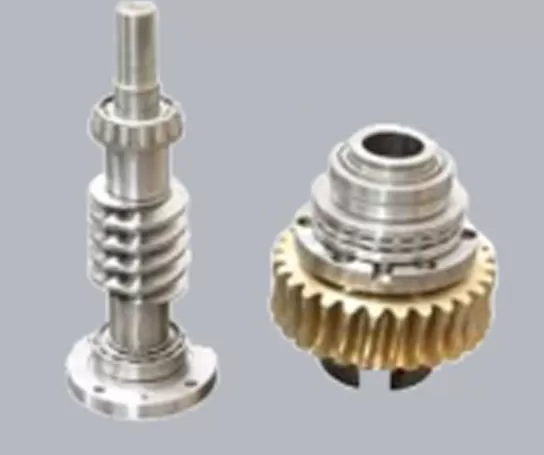

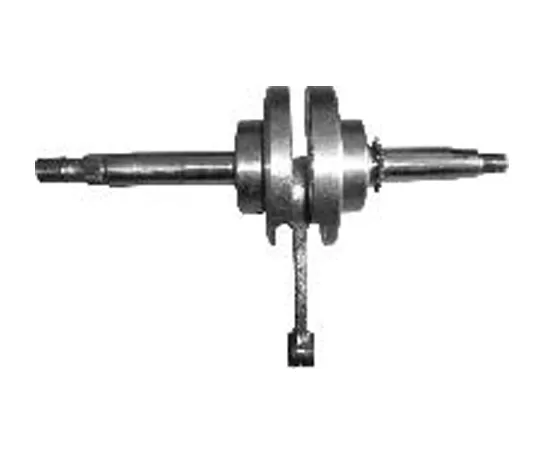

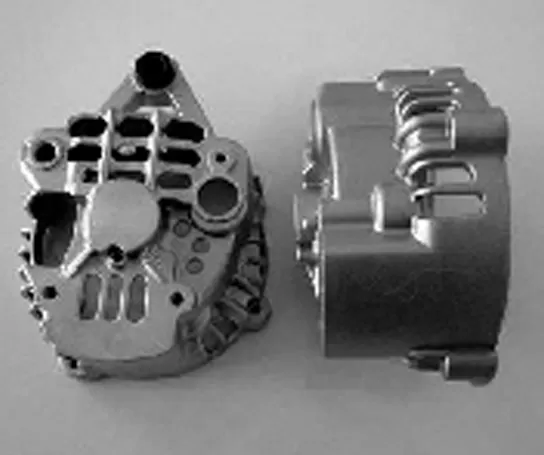

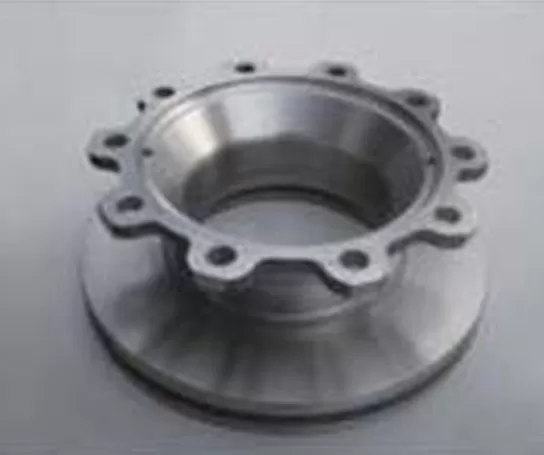

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of L-45H High-precision CNC Horizontal Lathe

Name		Unit	L-45H	Remarks
Machining range	Max. swing diameter on the bed	mm	φ600
	Max. machining diameter (shaft/disc)	mm	φ380/φ450
	Max. machining length	mm	450
	Max. bar diameter	mm	φ75
Travel	X-axis travel	mm	240
	X-axis motor power/stall torque	kw/Nm	1.8/11
	Z-axis travel	mm	500
	Z-axis motor power/stall torque	kw/Nm	1.8/11
Spindle	Output power (S1/S6)	kw	15/18.5
	Spindle end form		A2-8
	Spindle speed	r/min	0-2800
	Spindle through hole diameter	mm	φ87
Chuck	Hydraulic three-jaw chuck	inch	10	Hollow
Tailstock	Tailstock sleeve diameter/travel	mm	φ70/100	Optional
Tailstock	Tailstock sleeve taper hole taper	Morse	Morse 4#	Live top
Speed	Rapid traverse speed (X axis)	m/min	30
	Rapid traverse speed (Z axis)	m/min	30
	Cutting feed speed	mm/min	1~8000
Tool holder	Tool capacity	T	12
	Tool indexing time	Seconds/bit	0.5
	Tool body size	mm	25´25
	Max. boring tool diameter	mm	40
Accuracy	Positioning accuracy (X axis)	mm	0.008
	Positioning accuracy (Z axis)	mm	0.01
	Repeatability ((X axis)	mm	0.004
	Repeatability ( (Z axis)	mm	0.004
Other	Equipment capacity	kVA	16
	Coolant tank capacity	L	150
	Machine size	mm	260017901750	Manual chip removal coolant tank
	Weight (approx.)	kg	3600

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
