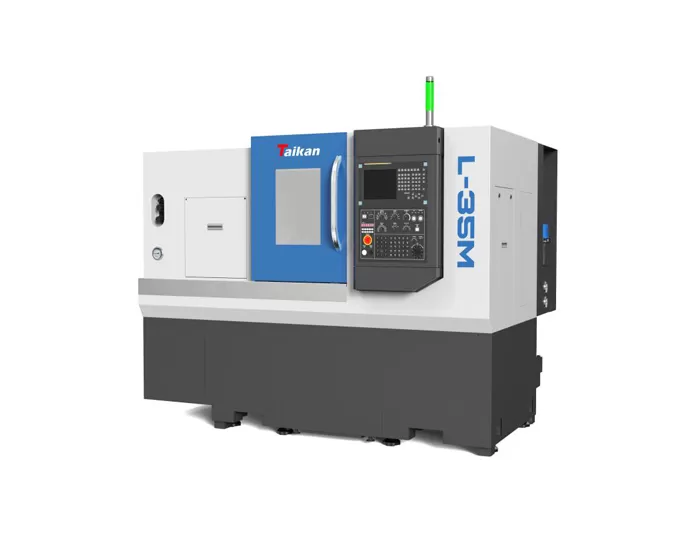

Name: L-35M High-precision CNC Horizontal Turning (Milling) Lathe
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristic of L-35M High-precision CNC Horizontal Turning (Milling) Lathe

Overall

The machine adopts an integrated machine, electrical, and hydraulic design with a 30° slant bed structure. It is compact, highly rigid, allows for smooth chip removal, and is easy to operate.

Guide Rail

The guide rails are of the rolling type, and the drive components use high-speed, quiet ball screws, offering fast speeds, low heat generation, and high positioning accuracy.

Spindle

The spindle speed range is 0-4000 rpm. The spindle is supported by a combination of high-precision angular contact ball bearings (front and rear), meeting the axial and radial cutting force requirements.

Tool Turret

Combined with the C-axis indexing spindle and hydraulic brake assistance, this setup enables 3-axis linkage and supports functions such as milling, drilling, and tapping with high efficiency, precision, and stable performance.

Application of L-35M High-precision CNC Horizontal Turning (Milling) Lathe

This lathe meets the needs of complex parts processing and is widely used in valves, ships, engineering machinery and other fields, especially favored by automotive parts manufacturers.

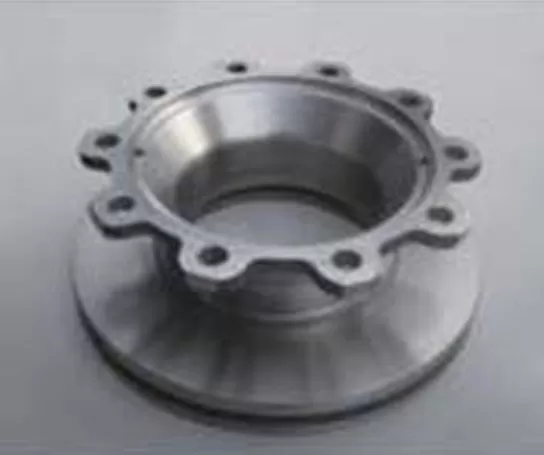

Workpiece Example 150304

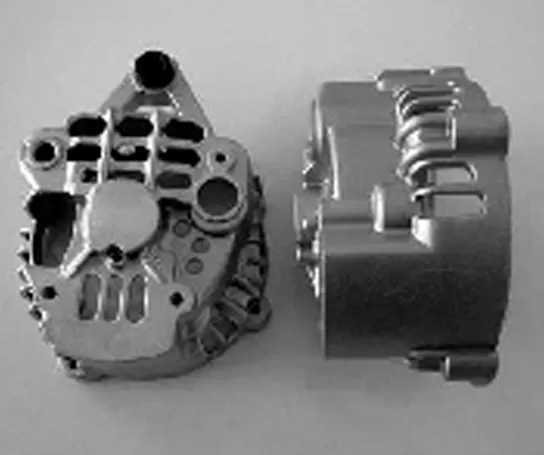

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of L-35M High-precision CNC Horizontal Turning (Milling) Lathe

Items		Unit	L-35M	Remarks
Processing range	Max. rotation diameter	mm	φ520
	Max. processing diameter (axis/plate)	mm	φ300/φ350
	Max. processing length	mm	400
	Max. bar diameter	mm	Φ52
Travel	X –axis travel	mm	190
	X –axis motor power/stall torque	kW/Nm	1.5/7.2
	Z –axis travel	mm	430
	Z –axis motor power/stall torque	kW/Nm	1.5/7.2
Spindle	Output power(S1/S6)	kW	7.5/11
	Spindle end form		A2-6
	Spindle rotary speed	r/min	0-4000
	Hole diameter	mm	Φ63
Chuck	Hydraulic 3-jaw chuck	inch	8	Hollow
Tailstock	Tailstock sleeve diameter/travel	mm	Φ70/100	Optional
Tailstock	Tailstock sleeve taper hole	Morse	Morse 4#	Live center
Speed	X-axis rapid traverse speed	m/min	30
	Z-axis rapid traverse speed	m/min	30
	Cutting Feed Rate	mm/min	1~8000
Tool holder	Tool capacity	T	12
	Milling head motor power/stall torque	kW	2.2/12
	Milling tool max. speed	r/min	3000
	Milling tool handle specification	mm	BMT45
	Turning tool holder specification	mm	25×25
	Max. boring tool diameter	mm	Φ32
Accuracy	X axis positioning accuracy	mm	0.006
	Z axis positioning accuracy	mm	0.006
	C axis positioning accuracy	arc sec	51
	X axis repeatability	mm	0.004
	Z axis repeatability	mm	0.004
	C axis repeatability	arc sec	20”
Others	Power Supply Capacity	kVA	25
	Coolant volume	L	150
	Dimension	mm	230018801800
	Total weight	kg	3600

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
