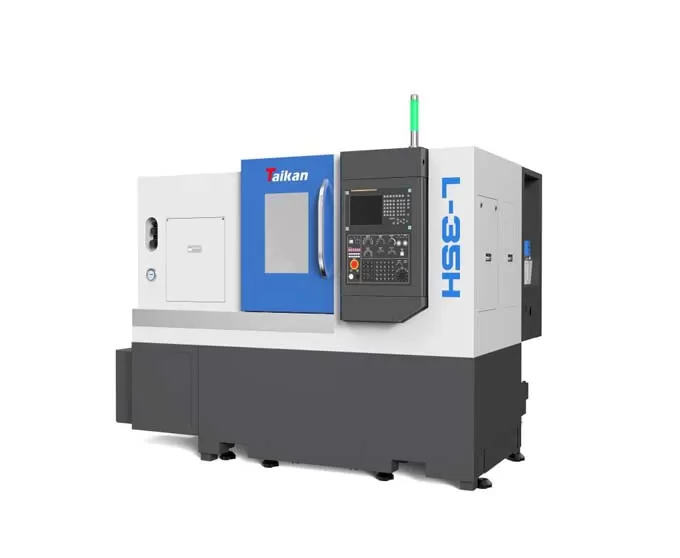

Name: L-35H High-precision CNC Horizontal Lathe
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristic of L-35H High-precision CNC Horizontal Lathe

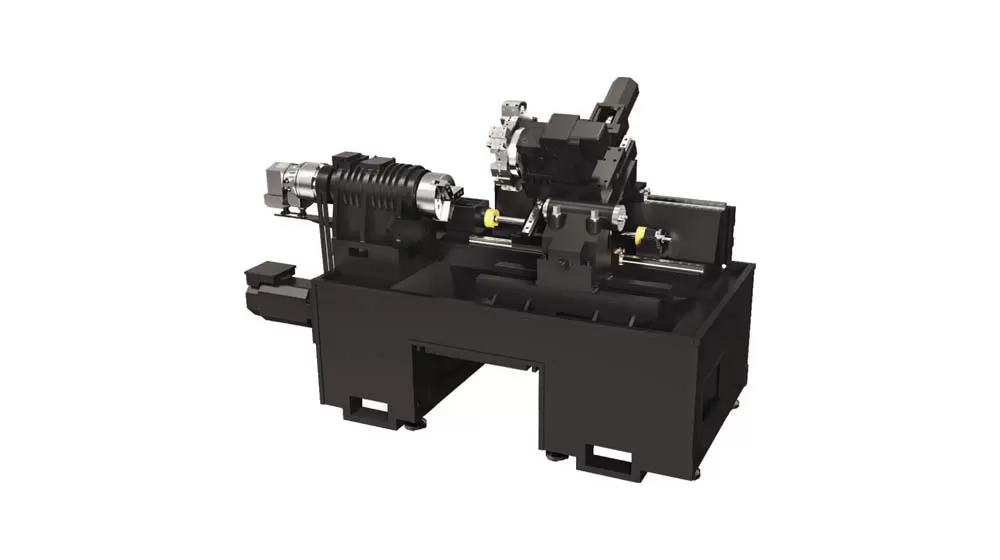

Overall

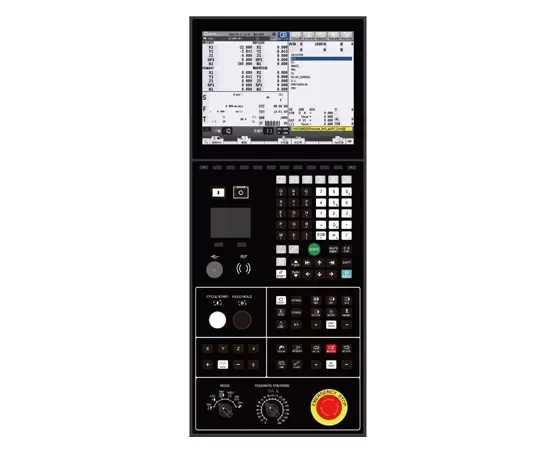

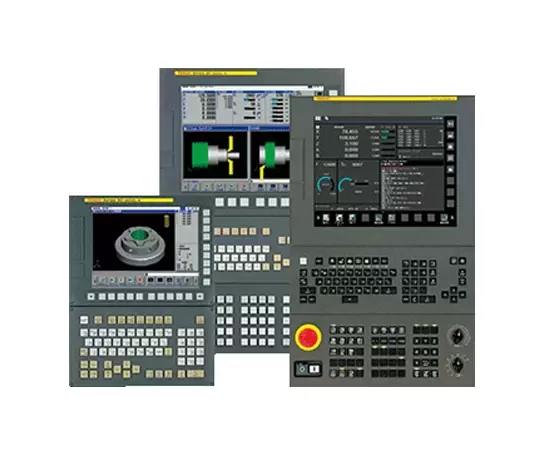

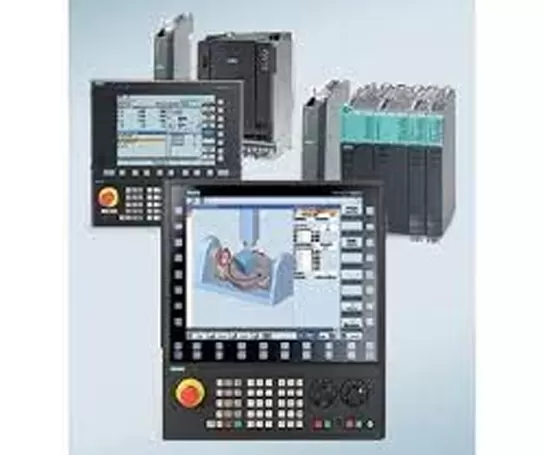

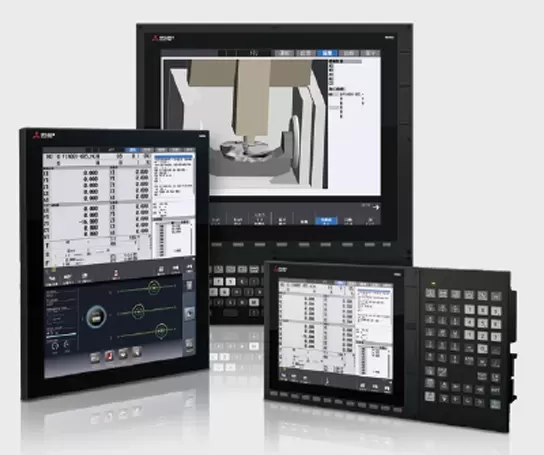

Dual-coordinate two-axis linkage, semi-closed loop CNC machine tool. Integrated mechanical, electrical and hydraulic layout.

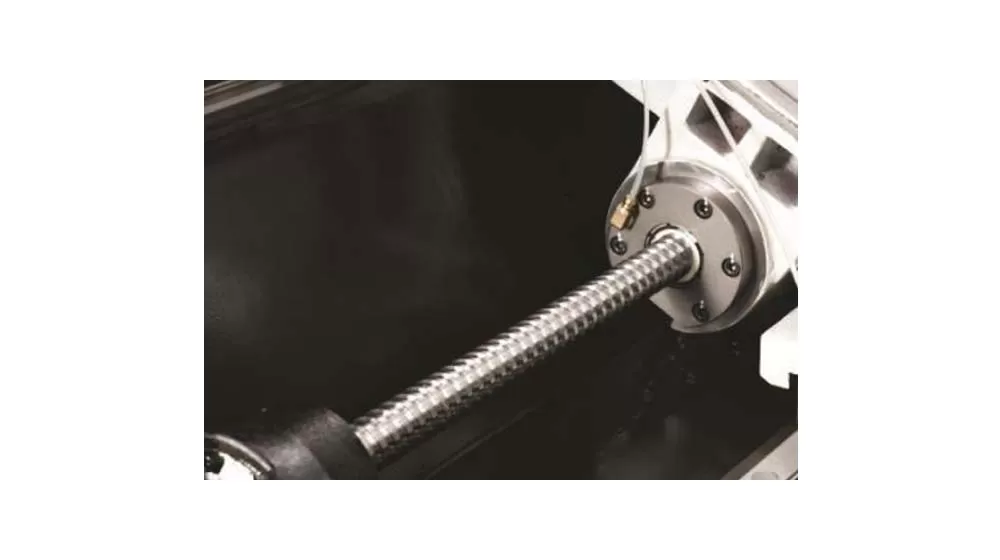

Each servo feed axis uses a high-speed silent ball screw, directly connected by an elastic coupling, with fast moving speed, low noise, high positioning accuracy and repeatability;

Guide rail

Adopt rolling guide design and high-speed silent ball screw, which has the advantages of high speed, low heat generation and high positioning accuracy;

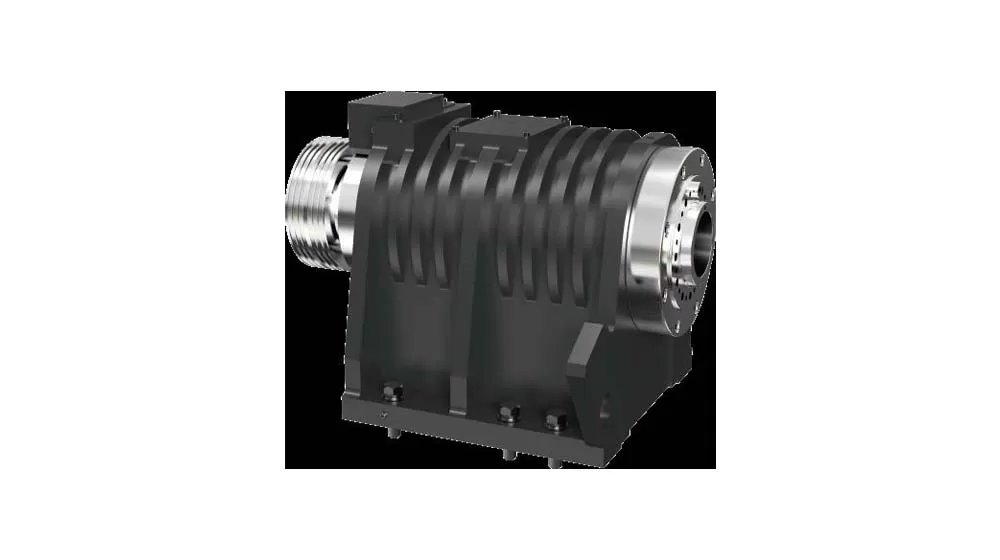

Spindle

Driven by a high-performance servo motor, the spindle is driven by a belt, and the spindle speed range is 0-4000r/min.

Tool

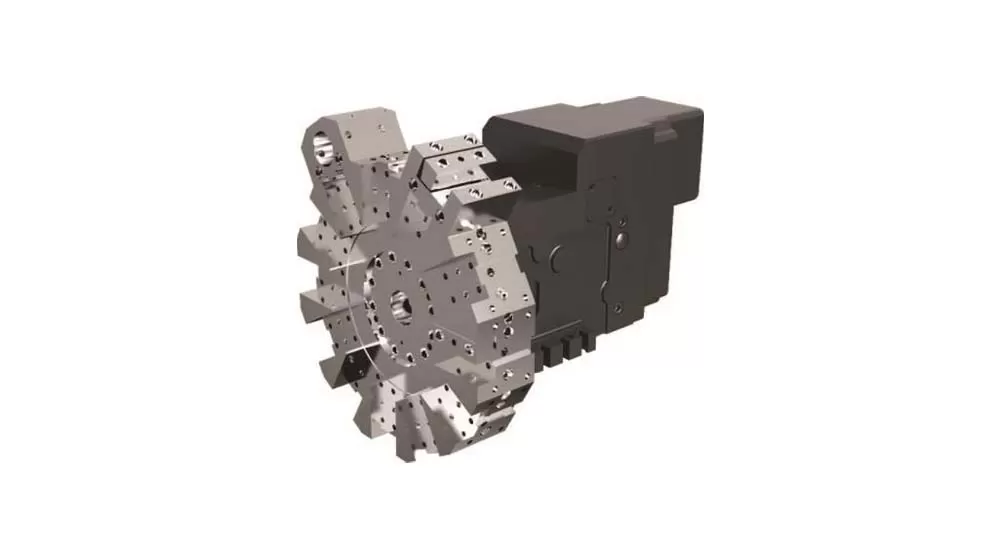

This machine tool adopts servo tool turret, which has fast tool changing speed and high reliability.

Application of L-35H High-precision CNC Horizontal Lathe

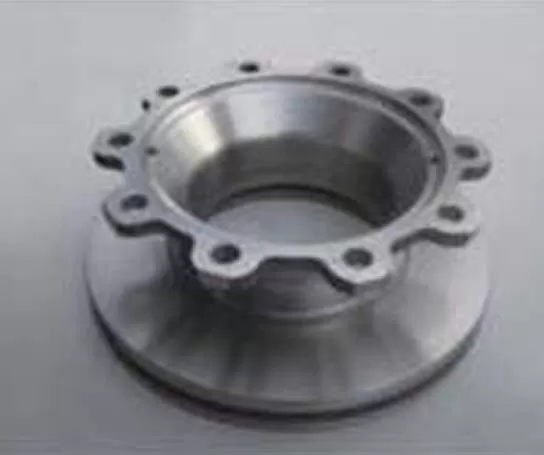

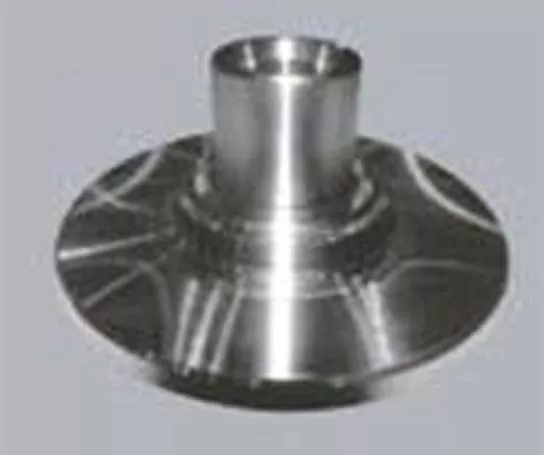

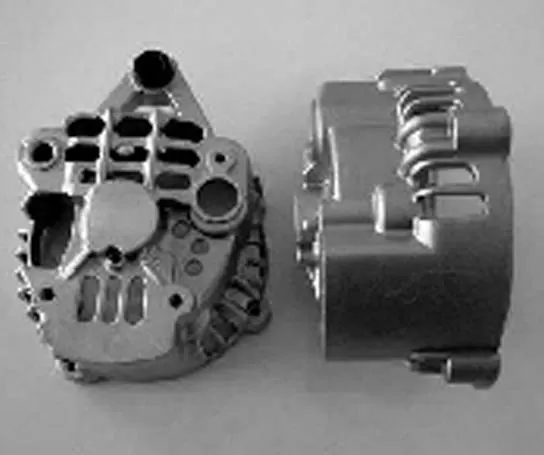

Workpiece Example 1

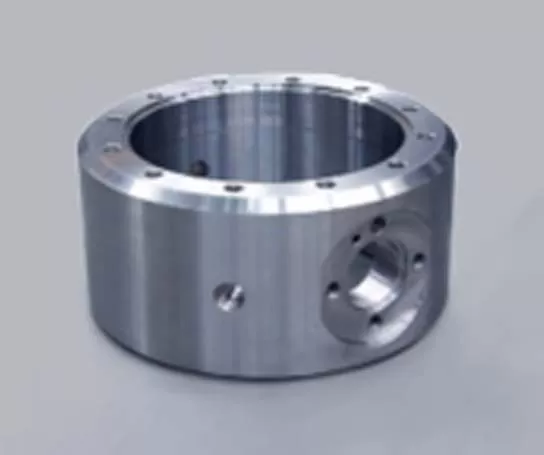

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of L-35H High-precision CNC Horizontal Lathe

Name		Unit	L-35H	Remarks
Machining range	Max. swing diameter on the bed	mm	φ520
	Max. machining diameter (shaft/disc)	mm	φ300/φ350
	Max. machining length	mm	450
	Max. bar diameter	mm	φ52
Travel	X-axis travel	mm	190
	X-axis motor power/stall torque	kw/Nm	1.8/11
	Z-axis travel	mm	500
	Z-axis motor power/stall torque	kw/Nm	1.8/11
Spindle	Output power (S1/S6)	kw	11/15
	Spindle end form		A2-6
	Spindle speed	r/min	0-4000
	Spindle through hole diameter	mm	φ63
Chuck	Hydraulic three-jaw chuck	inch	8	Hollow
Tailstock	Tailstock sleeve diameter/travel	mm	φ70/100	Optional
Tailstock	Tailstock sleeve taper hole taper	Morse	Morse 4#	Live top
Speed	Rapid traverse speed (X axis)	m/min	30
	Rapid traverse speed (Z axis)	m/min	30
	Cutting feed speed	mm/min	1~8000
Tool holder	Tool capacity	T	12
	Tool indexing time	Seconds/bit	0.5
	Tool body size	mm	25*25
	Max. boring tool diameter	mm	40
Accuracy	Positioning accuracy (X axis)	mm	0.006
	Positioning accuracy (Z axis)	mm	0.008
	Repeatability ((X axis)	mm	0.004
	Repeatability ( (Z axis)	mm	0.004
Other	Equipment capacity	kVA	12
	Coolant tank capacity	L	150
	Machine size	mm	250017001680	Manual chip removal coolant tank
	Weight (approx.)	kg	3400

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
