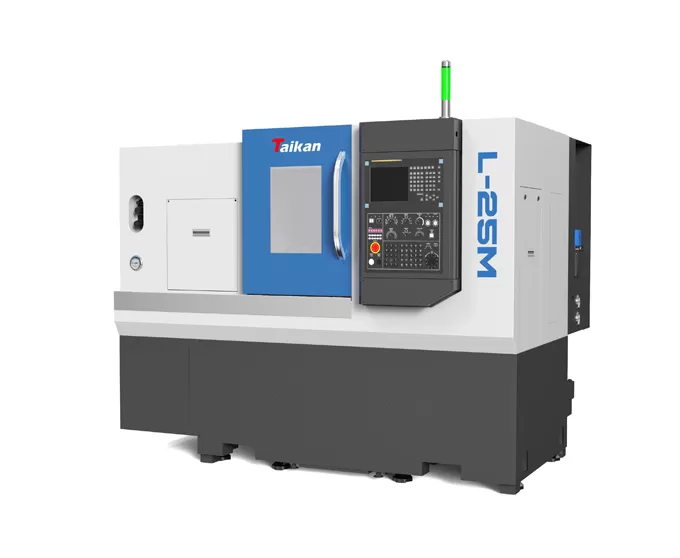

Name: L-25M High-precision CNC Horizontal Turning (Milling) Lathe
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristic of L-25M High-precision CNC Horizontal Turning (Milling) Lathe

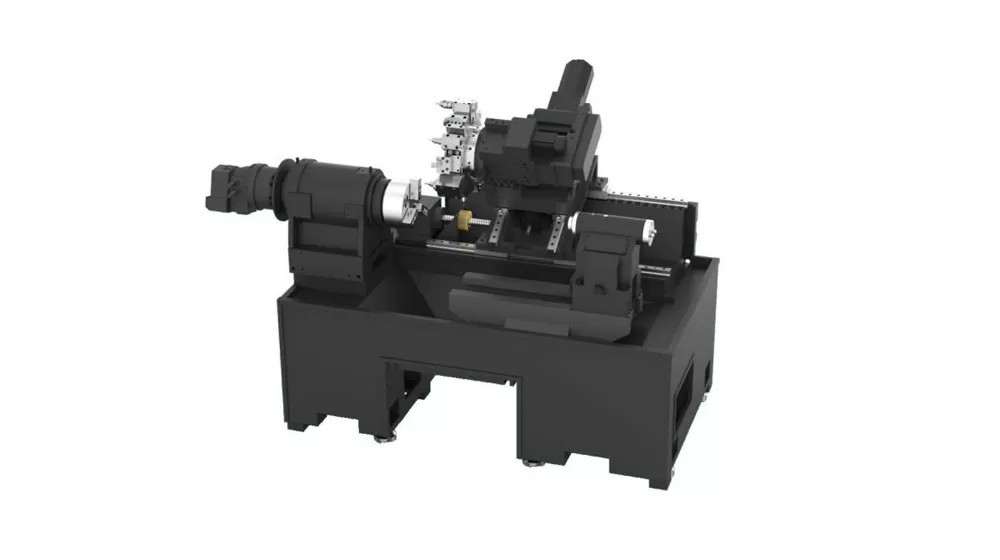

Overall

The machine is fully enclosed for protection, with automatic chip removal, lubrication, and cooling systems. Major components are cast using high-quality resin sand molds and high-strength cast iron materials, providing high rigidity and stable precision for the machine.

Guide Rail

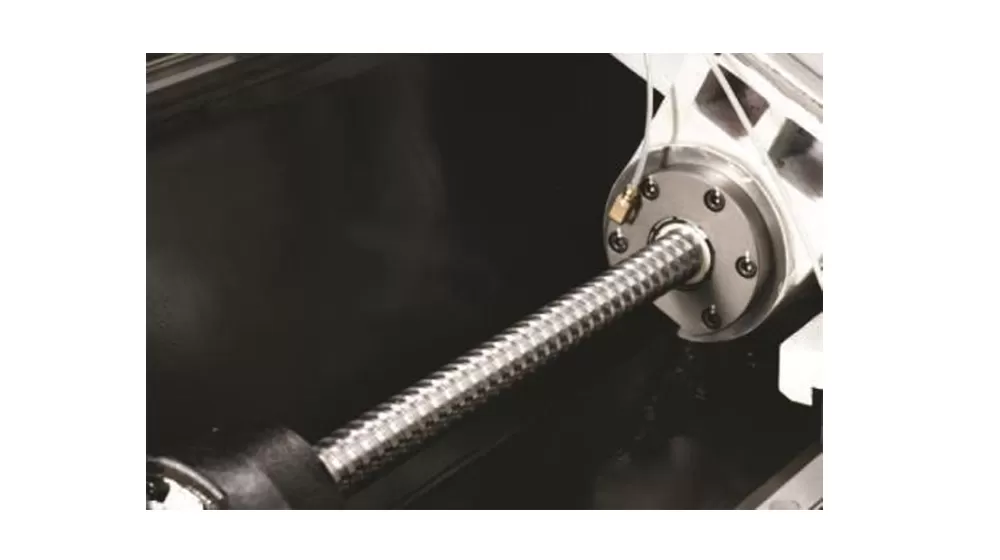

The guide rails are of the rolling type, and the drive components use high-speed, quiet ball screws, offering fast speeds, low heat generation, and high positioning accuracy.

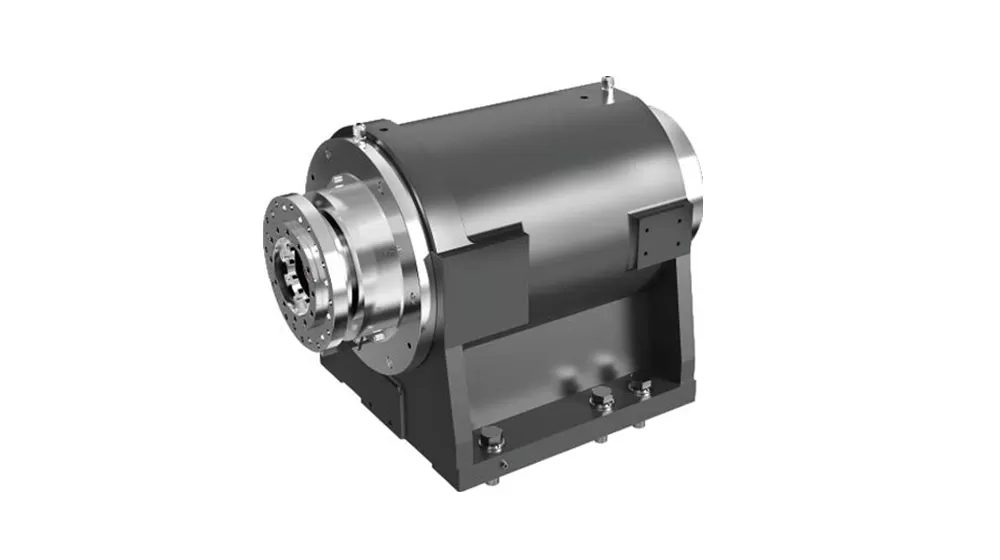

Spindle

The spindle drive system uses a high-performance, high-torque mechanical spindle. The spindle speed range is 0-5300 rpm.

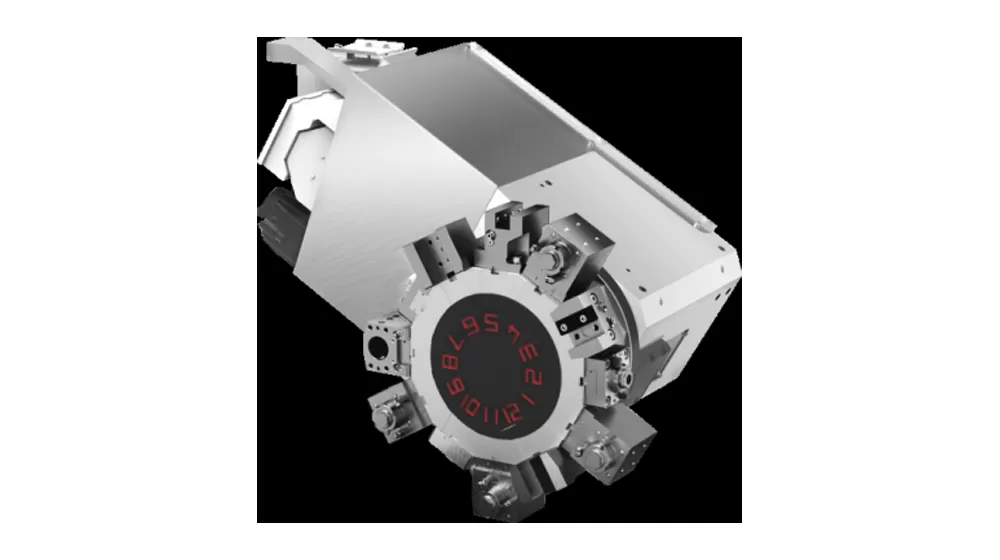

Tool Turret

Equipped with a BMT45 powered tool turret, which features fast tool changing speeds and high reliability.

Application of L-25M High-precision CNC Horizontal Turning (Milling) Lathe

This lathe meets the needs of complex parts processing and is widely used in valves, ships, engineering machinery and other fields, especially favored by automotive parts manufacturers.

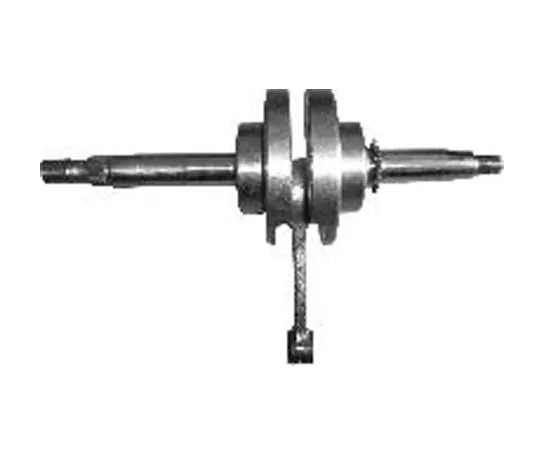

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of L-25M High-precision CNC Horizontal Turning (Milling) Lathe

Item		Unit	L-25M	Remarks
Processing range	Max. rotation diameter	mm	φ520
	Max. processing diameter (axis/plate)	mm	φ200/φ250
	Max. processing length	mm	400
	Max. bar diameter	mm	Φ45
Travel	X –axis travel	mm	190
	X –axis motor power/stall torque	kW/Nm	2.4/11
	Z –axis travel	mm	430
	Z –axis motor power/stall torque	kW/Nm	2.4/11
Spindle	Output power(S1/S6)	kW	7.5/11.25
	Spindle end form		A2-5
	Spindle rotary speed	r/min	5300
	Hole diameter	mm	Φ57
Chuck	Hydraulic 3-jaw chuck	inch	6	Hollow
Tailstock	Tailstock sleeve diameter/travel	mm	Φ70/100	Optional
Tailstock	Tailstock sleeve taper hole	Morse	Morse 4#	Live center
Speed	X-axis rapid traverse speed	m/min	30
	Z-axis rapid traverse speed	m/min	30
	Cutting Feed Rate	mm/min	1~8000
Tool holder	Tool capacity	T	12
	Milling head motor power/stall torque	kW	2.3/11-34
	Milling tool max. speed	r/min	4000
	Milling tool handle specification	mm	BMT45
	Turning tool holder specification	mm	25×25
	Max. boring tool diameter	mm	Φ32
Accuracy	X axis positioning accuracy	mm	0.006
	Z axis positioning accuracy	mm	0.006
	C axis positioning accuracy	arc sec	51
	X axis repeatabilitys	mm	0.004
	Z axis repeatability	mm	0.006
	C axis repeatability	arc sec	20”
Others	Power Supply Capacity	kVA	25
	Coolant volume	L	150
	Dimension	mm	230018801800
	Total weight	kg	3600

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
