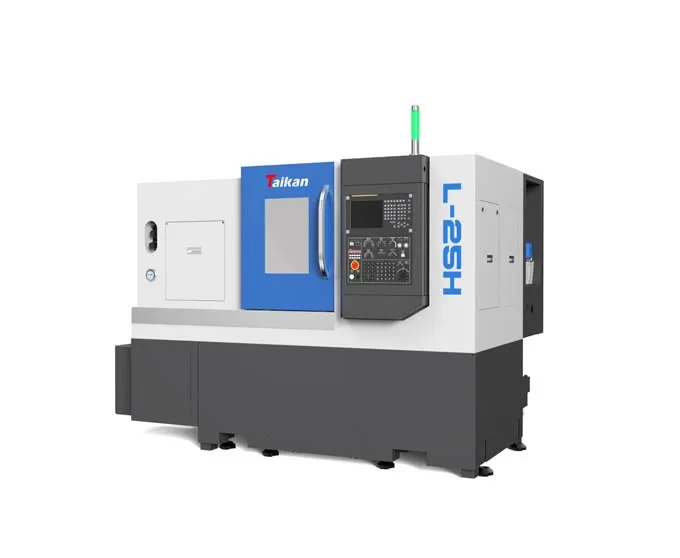

Name: L-25H High-precision CNC Horizontal Lathe
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

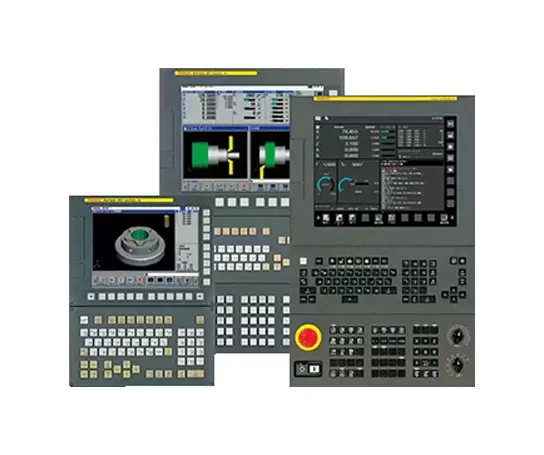

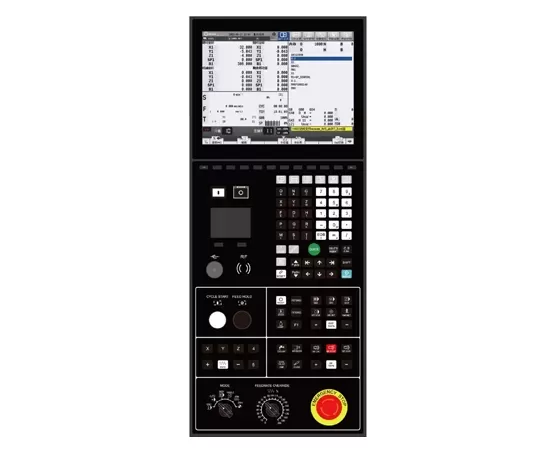

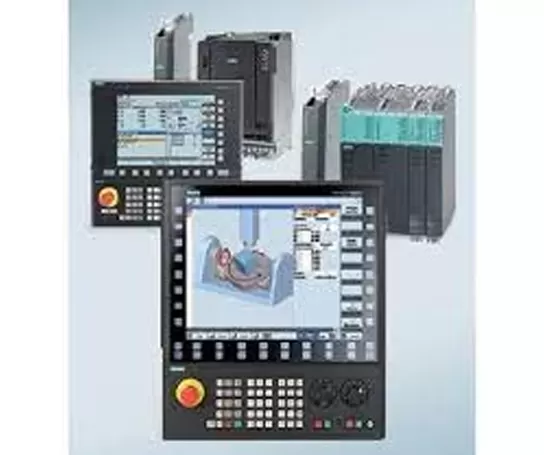

Characteristic of L-25H High-precision CNC Horizontal Lathe

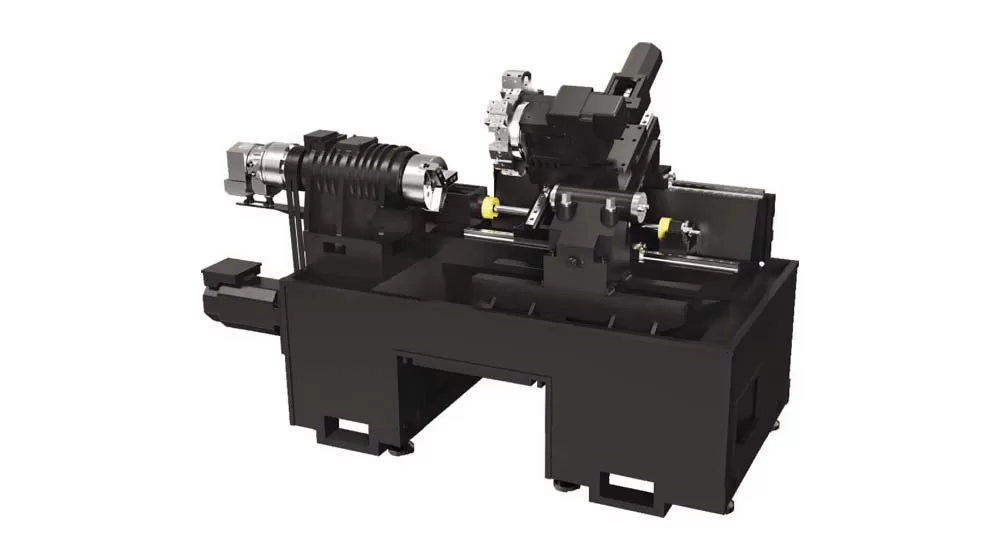

Overall

30° overall inclined bed, with compact structure, high rigidity, smooth chip removal, easy operation, etc.;
Fully enclosed protection, automatic chip removal, automatic lubrication, and automatic cooling.

Guide rail

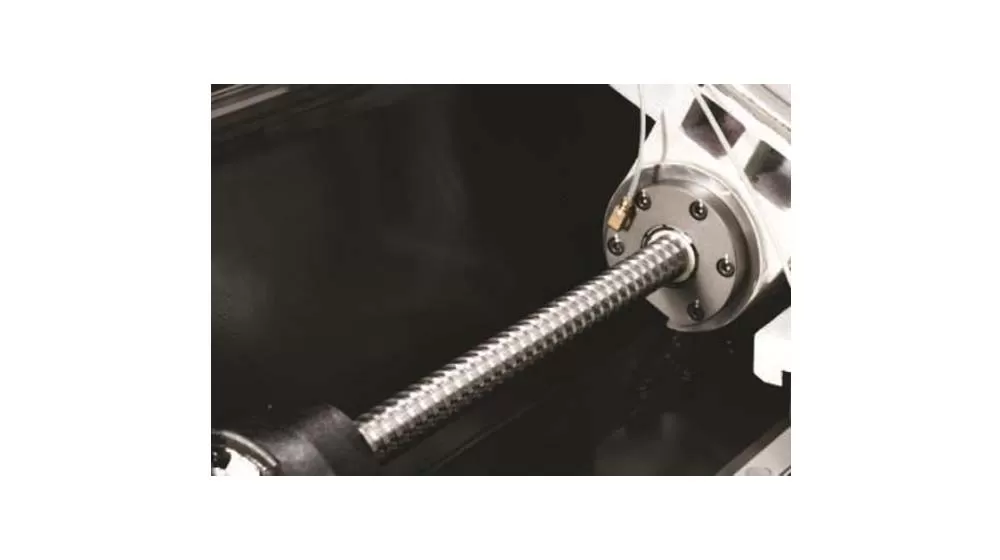

The guide rail type is rolling guide rail, and the driving component adopts a high-speed silent ball screw, which has the advantages of high speed, low heat generation and high positioning accuracy.

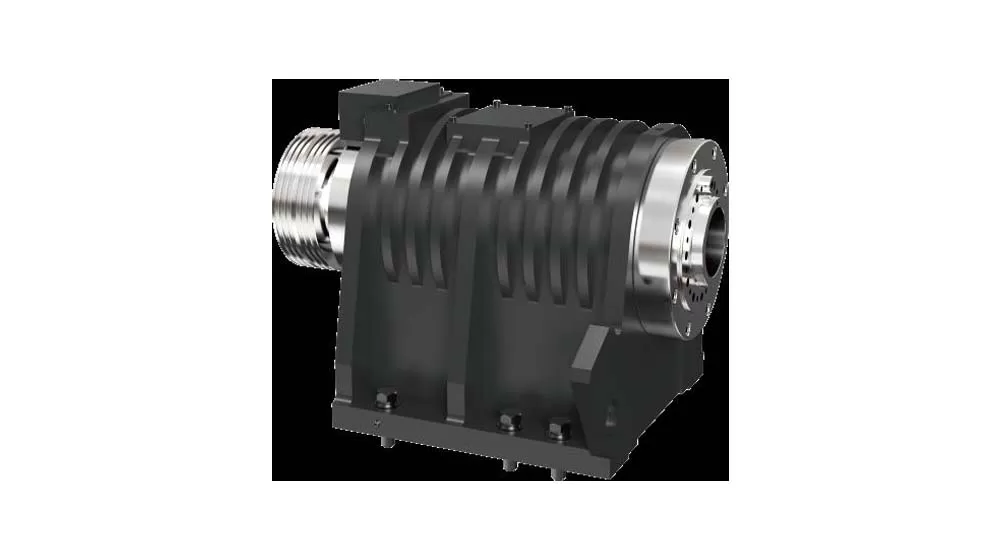

Spindle

The spindle speed range is 0-6000r/min.
The front support of the spindle adopts a triple high-precision angular contact ball bearing, and the rear support adopts a double high-precision angular contact ball bearing, which meets the axial and radial cutting force bearing requirements and high speed requirements.

Tool

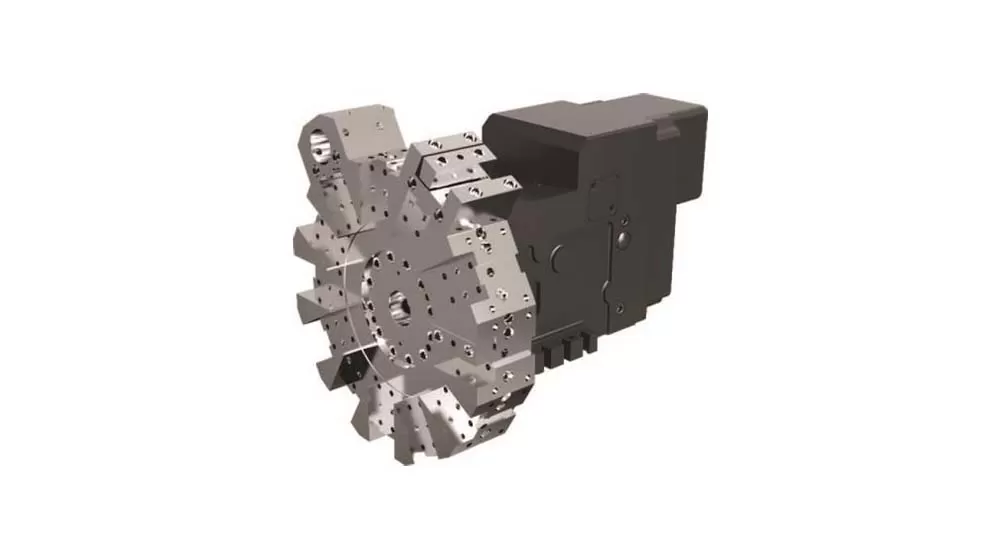

This machine tool adopts servo tool turret, which has fast tool changing speed and high reliability.

Application of L-25H High-precision CNC Horizontal Lathe

It can meet the needs of complex parts processing and is widely used in valves, ships, engineering machinery and other fields, and is especially favored by automotive parts manufacturers.

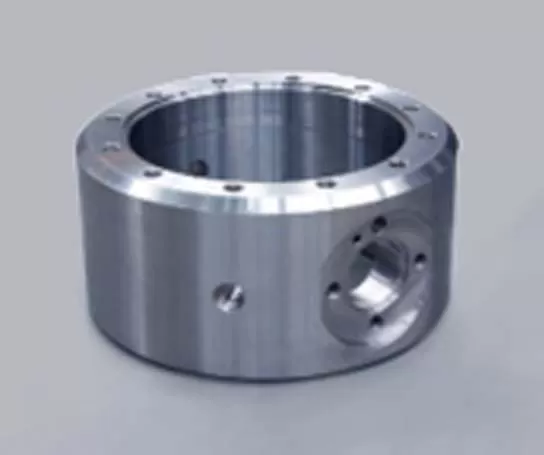

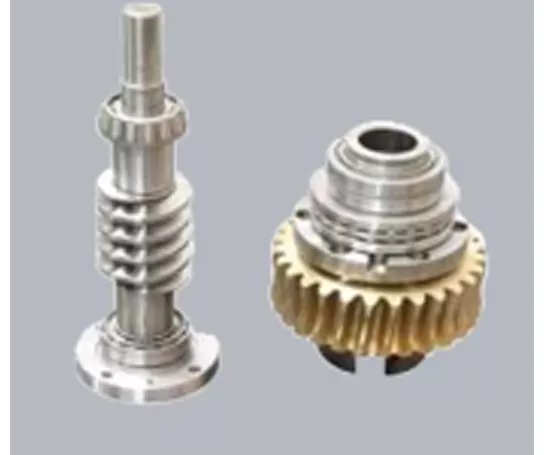

Workpiece Example 1

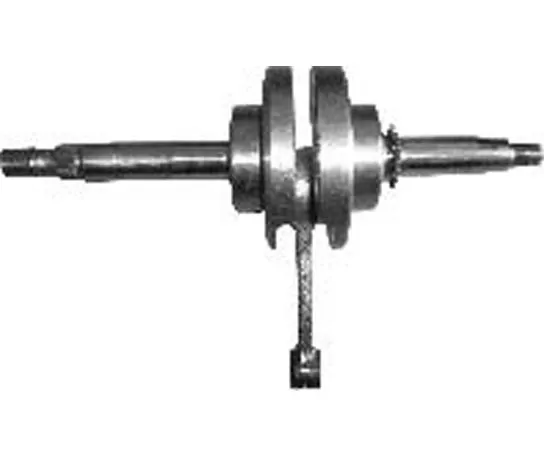

Workpiece Example 2

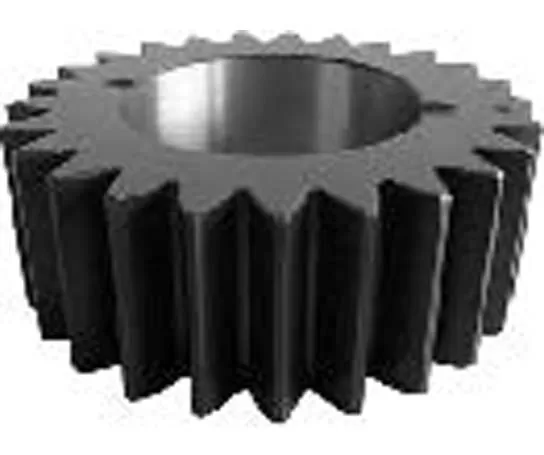

Workpiece Example 3

Workpiece Example 4

Specifications of L-25H High-precision CNC Horizontal Lathe

Name		Unit	L-25H	Remarks
Machining range	Max. swing diameter on the bed	mm	φ500
	Max. machining diameter (shaft/disc)	mm	φ200/φ250
	Max. machining length	mm	450
	Max. bar diameter	mm	φ45
Travel	X-axis travel	mm	140
	X-axis motor power/stall torque	kw/Nm	1.8/11
	Z-axis travel	mm	500
	Z-axis motor power/stall torque	kw/Nm	1.8/11
Spindle	Output power (S1/S6)	kw	7.5/11
	Spindle end form		A2-5
	Spindle speed	r/min	0-6000
	Spindle through hole diameter	mm	φ57
Chuck	Hydraulic three-jaw chuck	inch	6	Hollow
Tailstock	Tailstock sleeve diameter/travel	mm	φ70/100	Optional
Tailstock	Tailstock sleeve hole taper	Morse	Morse 4#	Live top
Speed	Rapid traverse speed (X axis)	m/min	30
	Rapid traverse speed (Z axis)	m/min	30
	Cutting feed speed	mm/min	1~8000
Tool holder	Tool capacity	T	12
	Tool indexing time	Seconds/bit	0.5
	Tool body size	mm	25´25
	Max. boring tool diameter	mm	40
Accuracy	Positioning accuracy (X axis)	mm	0.006
	Positioning accuracy (Z axis)	mm	0.008
	Repeatability ((X axis)	mm	0.004
	Repeatability ( (Z axis)	mm	0.004
Others	Equipment capacity	kVA	12
	Coolant tank capacity	L	150
	Machine size	mm	250017001680	Manual chip removal coolant tank
	Weight (approx.)	kg	3400

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
