Features of Horizontal Machining Center

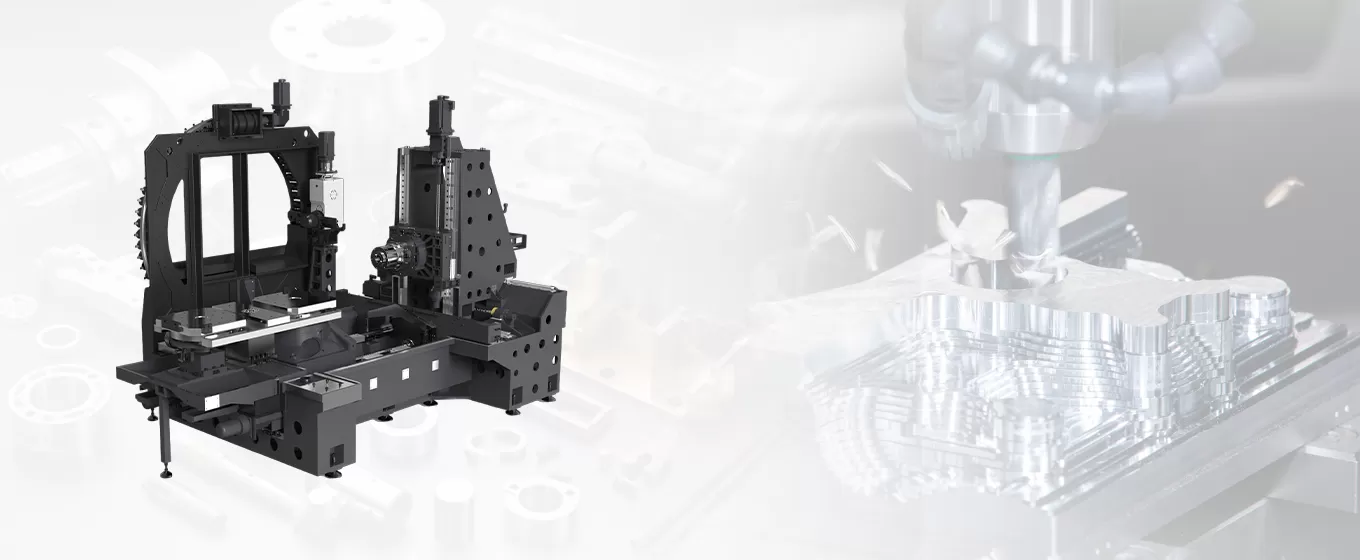

Versatile Structural Designs

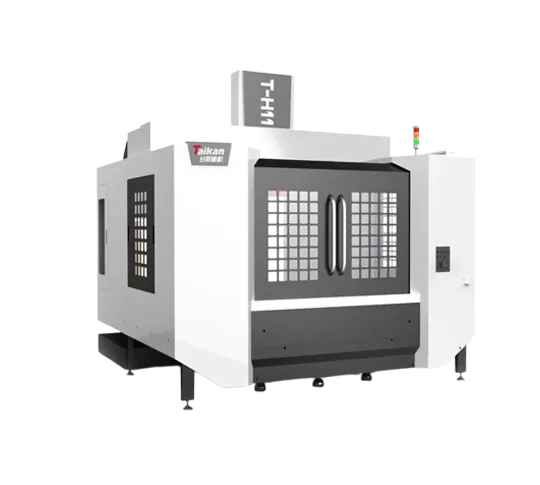

• Column-type Cross Slide Structure: T-H Series small horizontal machining center, compact and fast for high-efficiency machining.

• T-type Movable Column Slide Structure + Cam-type APC: DH Series double-table horizontal machining center, newly optimized design with stable performance enhancement.

• Inverted T-type Movable Column Slide Structure: DHS Series large single-table horizontal machining center, offering large rotary space to expand machining capabilities.

Diverse Turntable Configurations

• High-Precision Direct Drive Rotary Table: Driven by a high-torque motor with a round grating feedback system, providing high precision, high speed, and zero backlash.

• High-Precision Cam Rotary Table: Features cam roller drive, conical locator pins, and hydraulic multi-lock mechanism to ensure high rigidity and heavy-duty machining.

• Gear Type Dividing Rotary Table: Minimum indexing angle of 1°, with built-in hydraulic self-locking mechanism for high rigidity and strong load capacity.

Comprehensive Spindle Options for Various Work Conditions

• Equipped with direct drive spindles, belt-driven spindles,Motorized     Spindles, gear spindles, and high-torqueMotorized    Spindles.

• Supports a range of spindle specifications such as BT40, BBT40, BT50, and more.

• Compatible with multiple CNC systems like Mitsubishi, FANUC, Siemens, meeting diverse customer needs.

Personalized Function Modules and Flexible Configurations

• The machine can be customized from standard configurations to high-end configurations to meet various machining requirements.

• Ball Screw Water Cooling System: Ensures higher machining precision and faster thermal stabilization, reaching thermal equilibrium quickly.

• Feedback System for End Position: Equipped with optional grating scale feedback, supports full closed-loop control for X, Y, Z, and B axes, ensuring high positioning accuracy.

• Tool Internal Cooling Circulation System: Provides precise cooling for tools, extends tool life, especially during deep-hole machining by removing heat and chips.

• Automatic Tool Measurement and Workpiece Online Inspection: Supports contact or non-contact high-precision tool measurement, automatically detecting tool diameter, length, wear, and breakage, as well as online workpiece inspection.


Wide Range of Applications

The TAIKAN Horizontal Machining Center is widely used across multiple industries, particularly in:

• Automotive Industry: Machining of engine housings, gearbox housings, and other components.

• Mold and Mechanical Manufacturing: Machining of large box-type and shell components.

• Railway Transportation and Oil Valve Manufacturing: Suitable for machining of box-type and cylinder parts in railway and oil industries.

• Mining Machinery and General Machinery: Ideal for heavy-duty machinery and complex parts machining.
