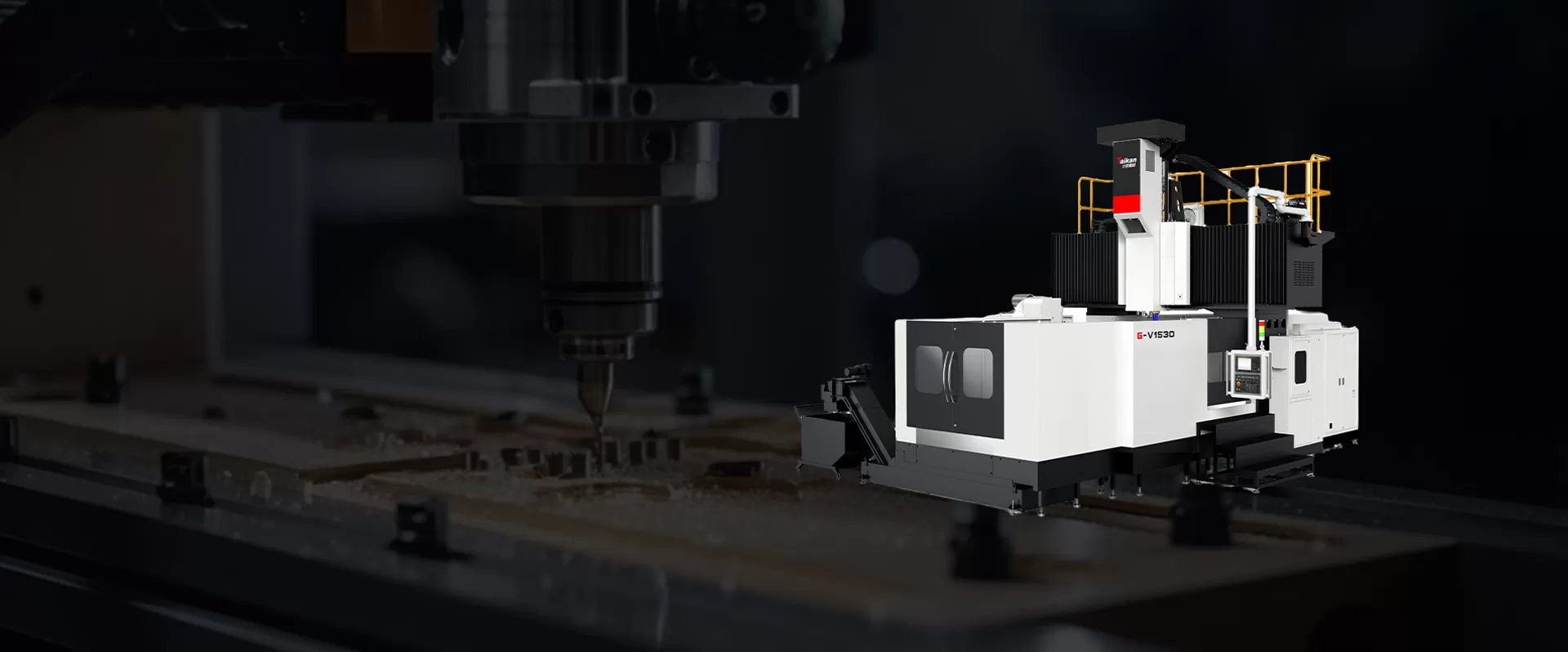

Taikan CNC: G-VU Series 5 Axis Gantry Machining Center Manufacturer & Supplier

Types of G-VU Series 5-Axis Gantry Machining Center

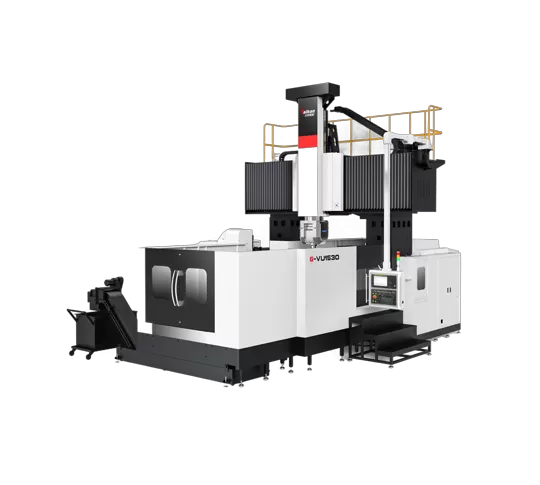

G-VU1530 5-Axis Gantry Machining Center

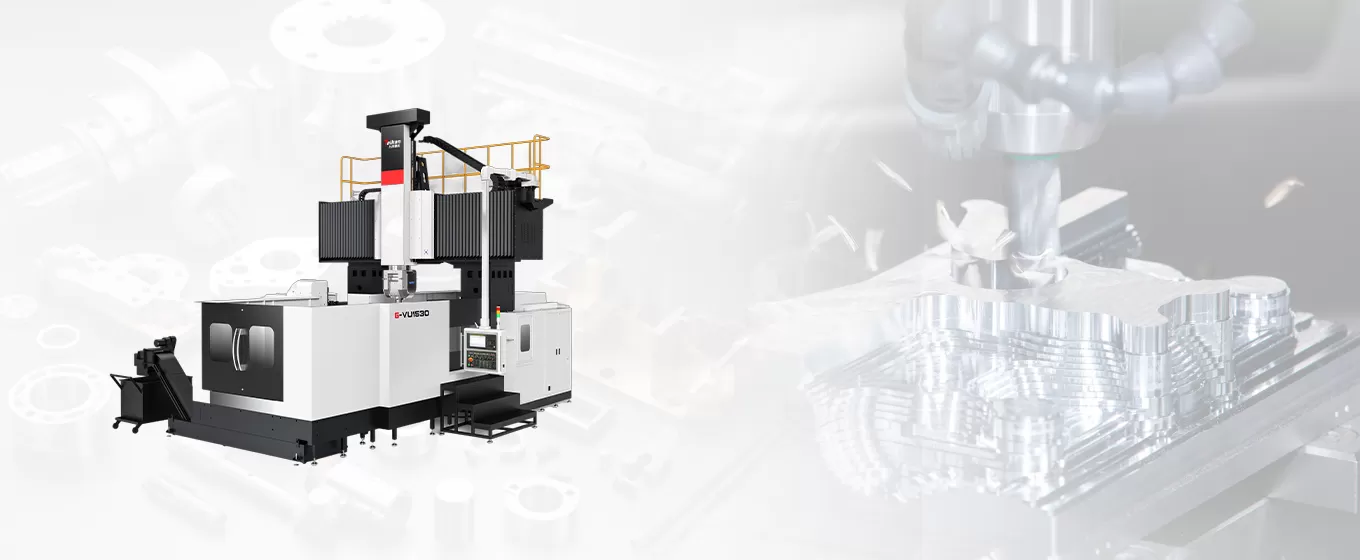

Advantages of G-VU Series 5-Axis Gantry Machining Center

Movable worktable design with fixed column and crossbeam; X, Y, and Z axes all use linear guides.
Standard direct-drive AC fork-shaped swivel head with a Siemens ONE system.

G-VU Series

Item	Unit	G-VU1220	G-VU1530	G-VU2030/VU2040/VU2050	G-VU2540/VU2550/VU2560
X-axis travel	mm	2,150	3,200	3,200/4,200/5,200	4,200/5200/6,200
Y-axis travel	mm	2,000	2,700	2,700	3,200
Z-axis travel	mm	800	1,000	1,000	1,000
Effective door width	mm	1,600	2,450	2,450	2,950
Worktable width	mm	1,250	1,500	2,000	2500
Worktable length	mm	2,000	3,000	3,000/4,000/5,000	4,000/5,000/6,000
Tool holder specifications	/	HSK-A63	HSK-A63	HSK-A63	HSK-A63
Max. spindle speed	r/min	2,0000	18,000	18,000	18,000
Spindle motor power	kW	20	30	30	30
Spindle output torque	N.m	35/42	72/85	72/85	72/85
