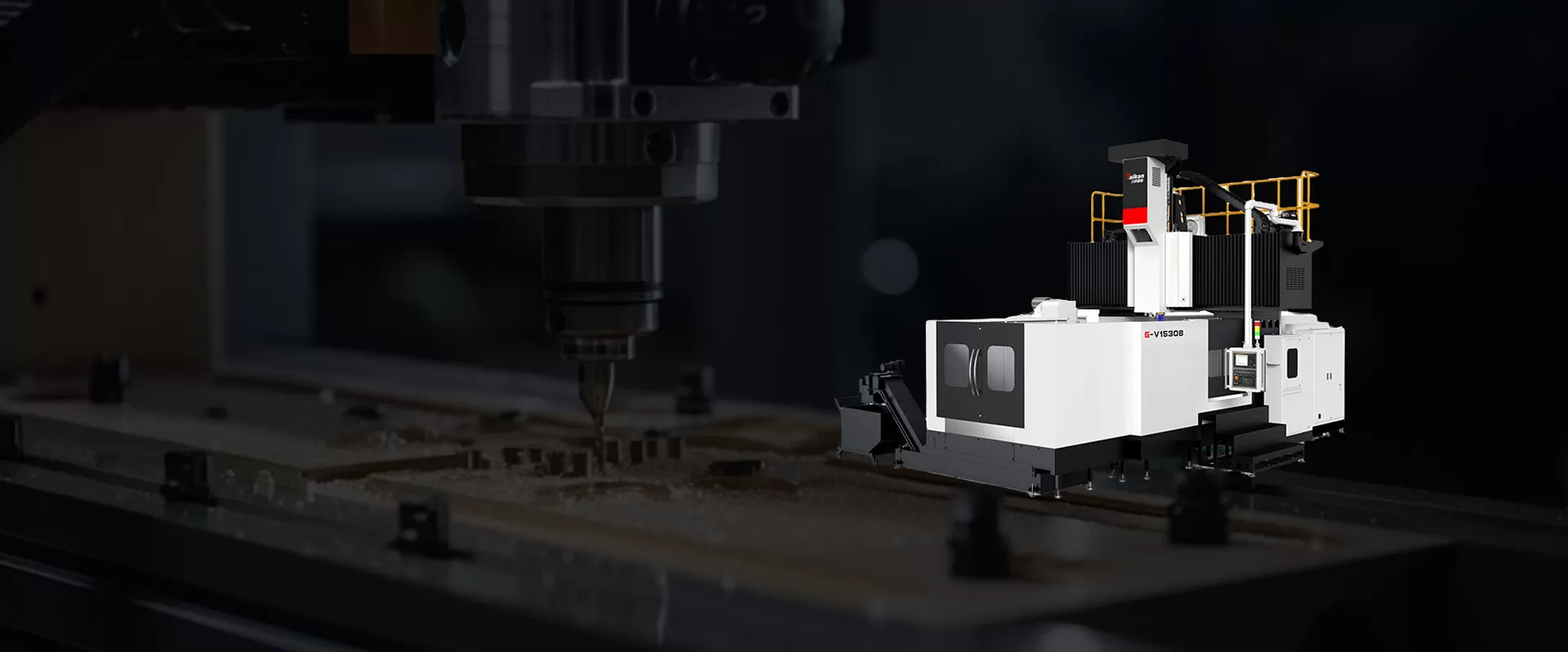

G-V Series 3-Axis Linear Guides

G-V Series 3-Axis Linear Guides

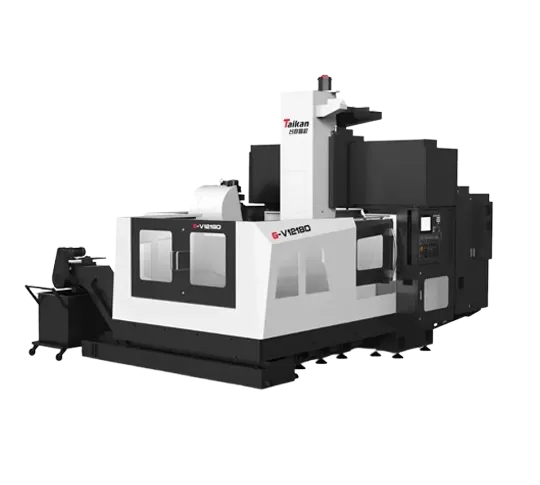

G-V1218D Direct-Drive Spindle Gantry Machining Center

G-V1218D Direct-Drive Spindle Gantry Machining Center

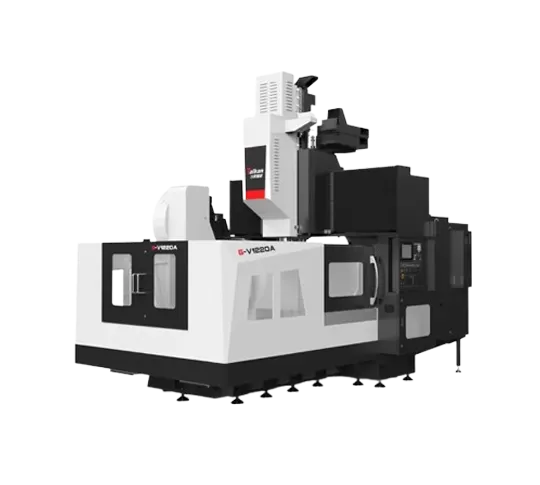

G-V1220A/B/C 3-Axis Linear Guides Gantry Machining Center

G-V1220A/B/C 3-Axis Linear Guides Gantry Machining Center

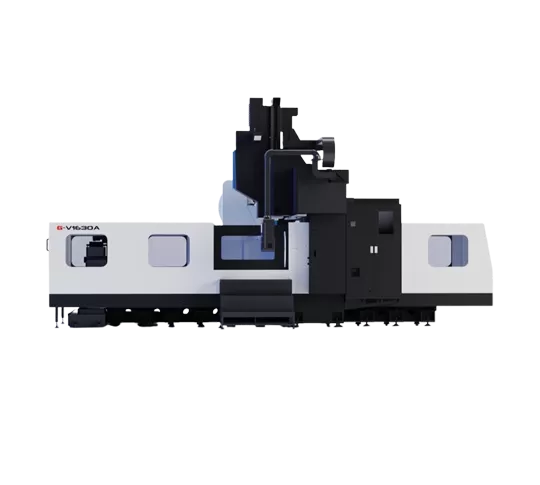

G-V1630 A/B/C 3-Axis Linear Guides Gantry Machining Center

G-V1630 A/B/C 3-Axis Linear Guides Gantry Machining Center

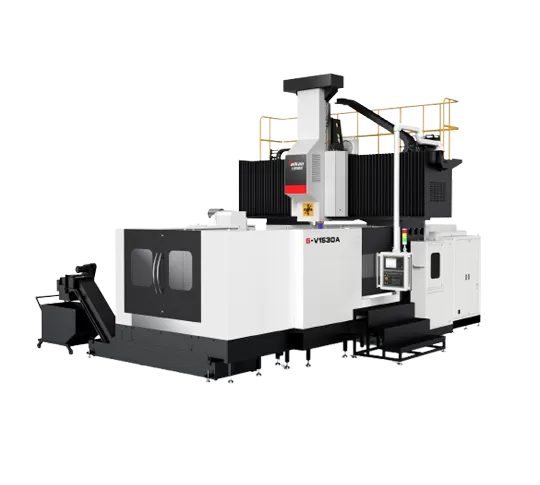

G-V1530A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

G-V1530A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

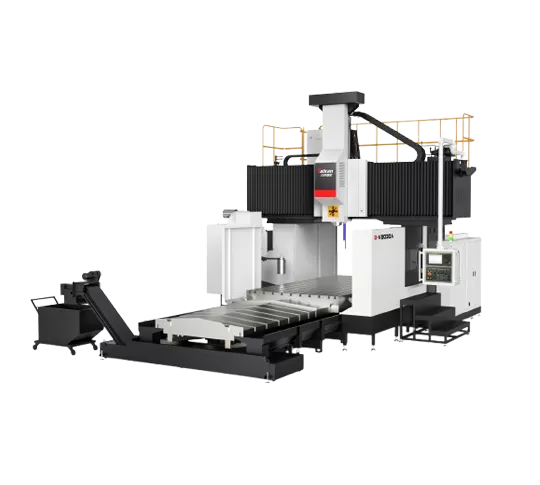

G-V2030 A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

G-V2030 A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

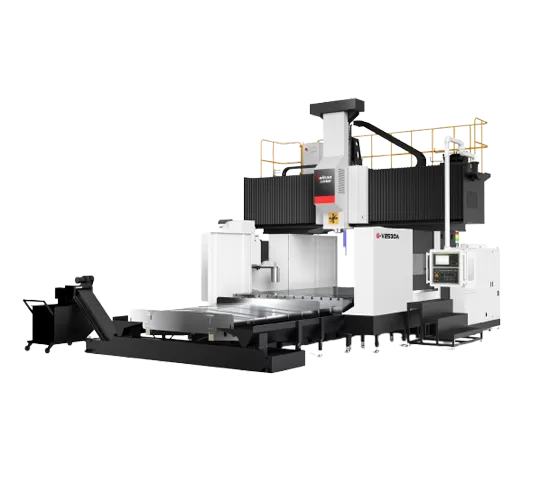

G-V2530 A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

G-V2530 A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

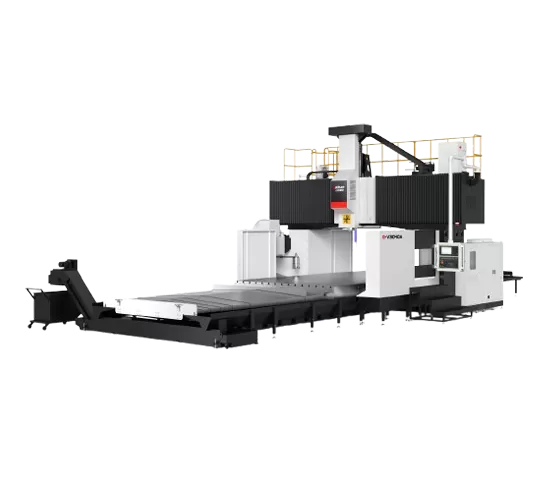

G-V3040 A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

G-V3040 A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

Advantages of G-V Series 3-Axis Linear Guides

Advantages of G-V Series 3-Axis Linear Guides

  • Movable worktable design with fixed column and crossbeam;X, Y, and Z axes all use linear guides. Optionally, the Z-axis can be equipped with T-type ram box guideway.

  • Including direct-drive spindle models, belt-driven spindle models, and gear-driven spindle models.


G-V Series


Item

Unit

G-V1220D/V1225D/V1230D

G-V1630D

G-V1018A

G-V1220A/V1225A/V1230A

X-axis travel

mm

2,100/2,600/3,150

3,150

1,800

21,00/2600/3200

Y-axis travel

mm

1,525

1,800

1,200

1,525

Z-axis travel

mm

700

700

800

800

Effective door width

mm

1,560

1,800

1,1,60

1,560

Worktable width

mm

1,250

1,800

1,000

1,250

Worktable length

mm

2,000/2,500/3,000

3,000

1,800

2,000/2,500/3,000

Tool holder specifications

/

BBT40/BT40

BBT40/BT40

BT50

BT50

Max. spindle speed

r/min

12,000（Direct coupling）

12,000（Direct coupling）

6,000

6,000

Spindle motor power

kW

11/15

11/15

15/18.5

15/18.5

Spindle output torque

N.m

52/95

52/95

191/315

191/315


Item

Unit

G-V1520B/V1530B/V1540B

G-V2030B/V2040B/V2050B

G-V2540B/V2050B/V2560

G-V3050B/V3060B/V3080B

X-axis travel

mm

2,200/3,200/4,200

3,200/4,200/5,200

4,200/5,200/6,200

5,200/6,200/8,400

Y-axis travel

mm

2,200

2,700

3,200

3,700

Z-axis travel

mm

1,000

1,000

1,000

1,000

Effective door width

mm

1,950

2,450

2,950

3,450

Worktable width

mm

1,500

2,000

2,500

3,000

Worktable length

mm

2,000/3,000/4,000

3,000/4,000/5,000

4,000/5,000/6,000

5,000/6,000/8,000

Tool holder specifications

/

BT50

BT50

BT50

BT50

Max. spindle speed

r/min

6,000

6,000

6,000

6,000

Spindle motor power

kW

15/18.5

22/35

22/35

22/35

Spindle output torque

N.m

807/1,331

790/1,258

790/1,258

790/1,258
