Taikan CNC: G-BU Series Bridge 5-Axis Gantry Machining Center Manufacturer & Factory

Types of G-BU Series Bridge 5-Axis Gantry Machining Center

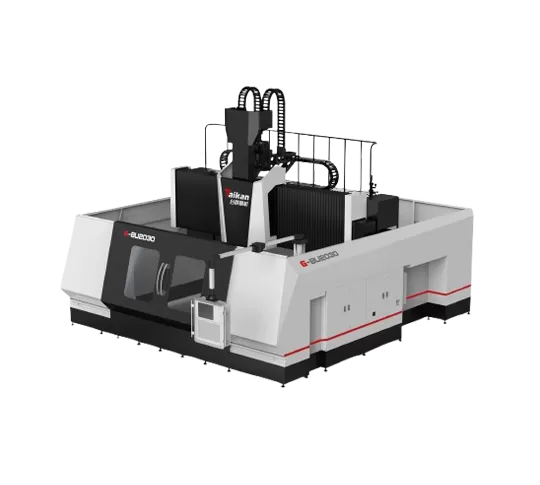

G-BU2030 5-Axis Gantry Machining Center

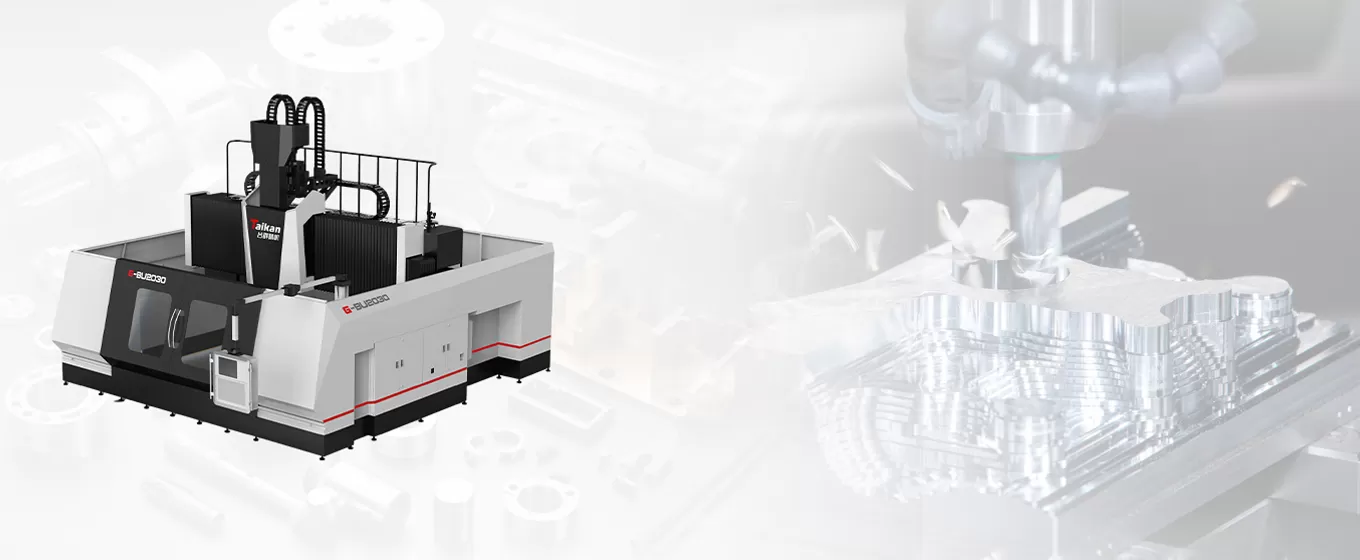

Advantages of G-BU Series Bridge 5-Axis Gantry Machining Center

Fixed table design with the crossbeam moving along wall-type columns on both sides; the X, Y, and Z axes are all linear guides.
Standard direct-drive AC fork-shaped swivel head with a Siemens ONE system.

G-BU Series

Item	Unit	G-BU2030/BU2040	G-BU2540/BU2560	G-BU3060
X-axis travel	mm	3,200/4,200	4,200/6,200	6,200
Y-axis travel	mm	2,200	2,700	3,200
Z-axis travel	mm	1,000	1,000	1,000
Effective door width	mm	3,200	3,700	4,200
Worktable width	mm	2,000	2,500	3,000
Worktable length	mm	3,000/4,000	4,000/6,000	6,000
Tool holder specifications	/	HSK-A63	HSK-A63	HSK-A63
Max. spindle speed	r/min	18,000	18,000	18,000
Spindle motor power	kW	30	30	30
Spindle output torque	N.m	72/85	72/85	72/85
