Taikan CNC: FH Series 5 Axis CNC Milling Machine Manufacturer & Factory

Types of FH Series 5-Axis Milling and Turning Machining Center

FH 60P-C 5-Axis Miling and Turning Machining Center

FH 80P-C 5-Axis Milling and Turning Machining Center

FH 100P-C 5-Axis Milling and Turning Machining Center

FH 135P-C 5-Axis Milling and Turning Machining Center

FH 170P-C 5-Axis Milling and Turning Machining Center

FH-210P 5-Axis Milling and Turning Machining Center

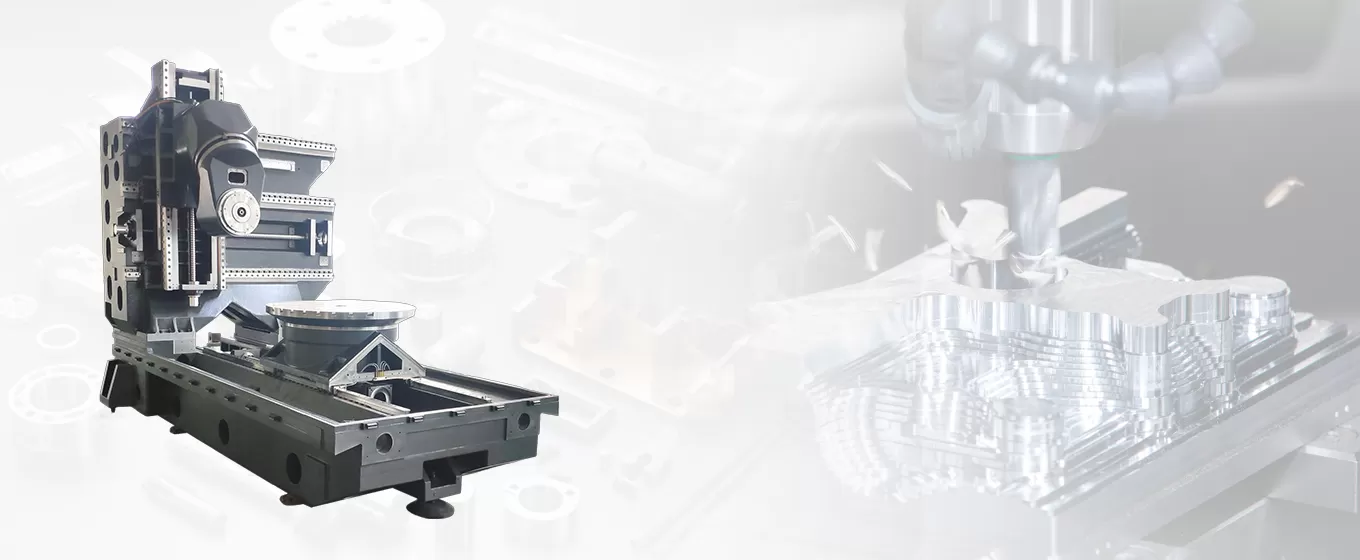

Advantages of FH Series 5-Axis Milling and Turning Machining Center

The bed is made of marblnnme, which is less affected by temperature changes and has good vibration absorption.
The direct-drive B-axis swing head is equipped with a high-torque spindle that can be converted between vertical and horizontal positions, which can realize side machining, top surface machining, inclined surface machining and five-axis linkage machining.
The direct-drive C-axis rotary table can complete milling and turning machining in one clamping.

FH Series

Item	FH60P-C	FH80P-C	FH100P-C
Table size	Ø 660mm	Ø 880mm	Ø 1,100mm
X/Y/Z axis travel	600×800×600 mm	800×1,050×800 mm	1,000×1,150×1,000 mm
Max. spindle speed	12,000 rpm	12,000rpm	12,000 rpm
Spindle power	42 kW	42 kW	58 kW
Tool holder specifications	HSK-A63	HSK-A63	HSK-A100
Tool capacity	40T	40T	40T
