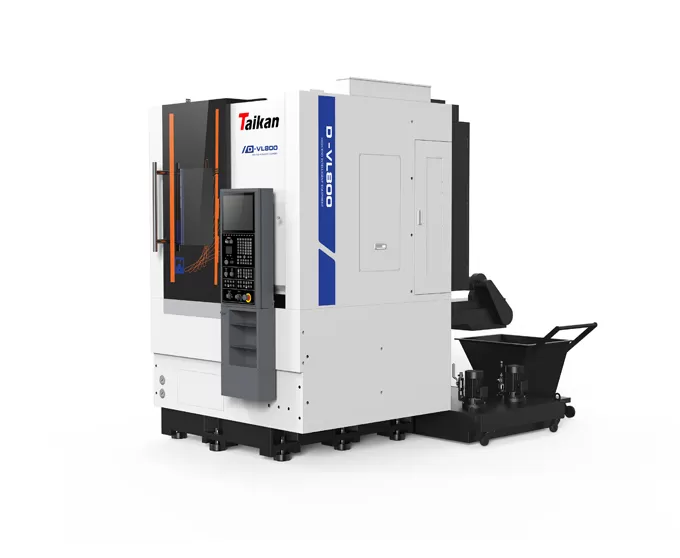

Name: D-VL800/D-VL800M High-precision CNC Vertical Lathe
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristic of D-VL800/D-VL800M High-precision CNC Vertical Lathe

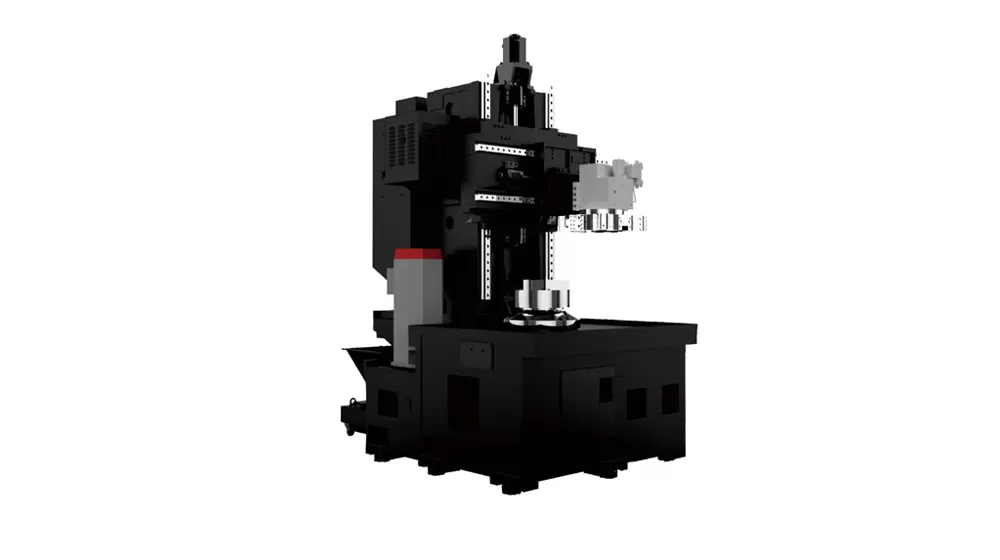

Main Structure

The crossbeam has high resistance to bending and torsion, ensuring stable cutting.
The column is a strong, vibration-resistant cast box structure.
The X/Z axes use high-load roller guides and pre-stretched ball screws to minimize thermal effects.

Spindle and Table

High-precision spindle units from top brands ensure accuracy and load capacity.

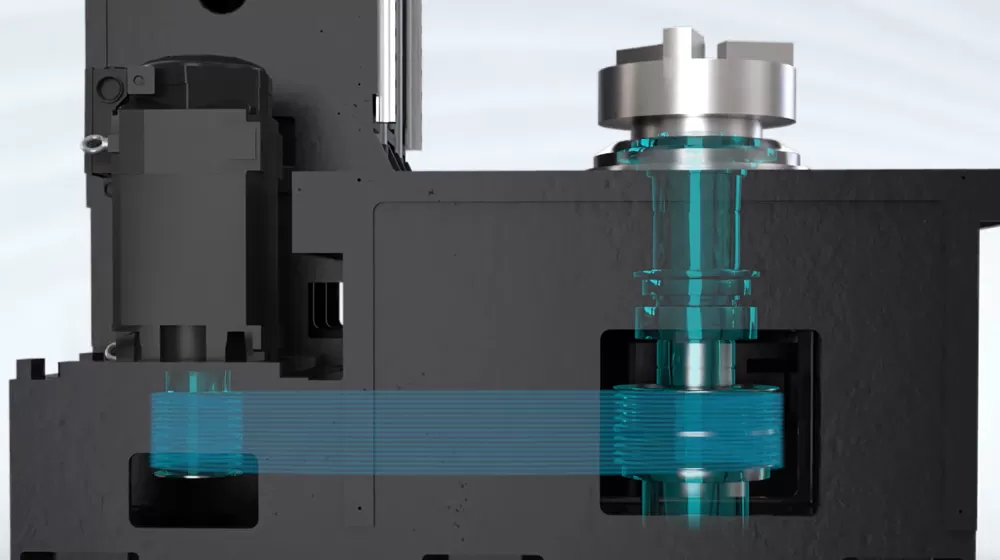

Driven by a Siemens servo motor, with speed reduction via a V-belt.
The table base includes a spindle encoder for constant surface speed cutting.

Standard Turret

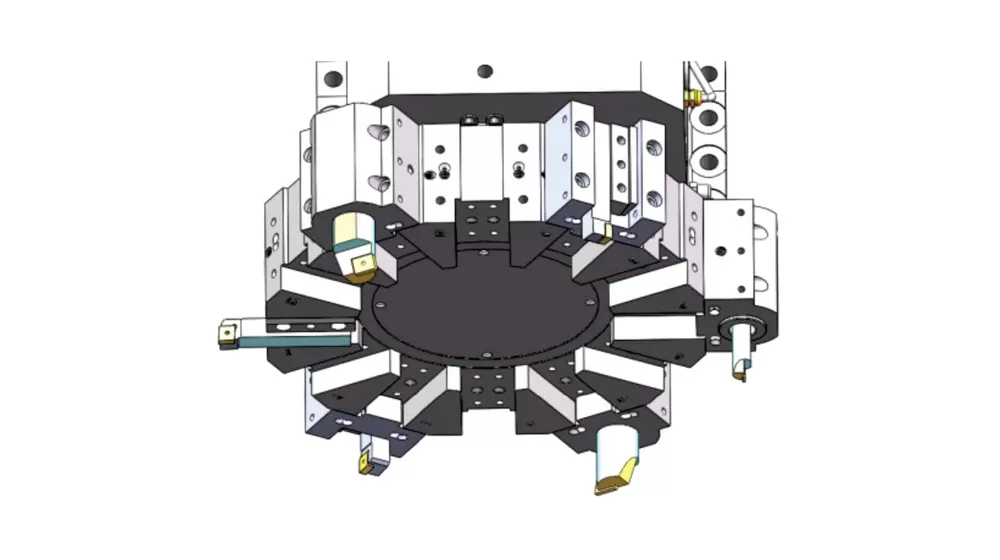

8-position horizontal hydraulic turret for fast tool changes and high reliability.

Optional Turret

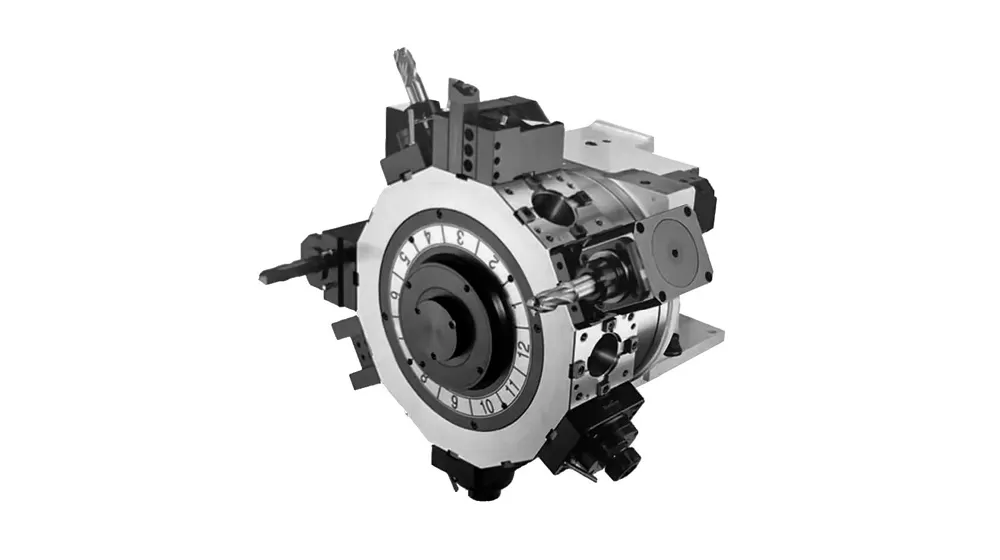

Optional power milling turret, driven by a servo motor, designed to reduce noise.
Optional vertical turret, suitable for inner hole machining with minimal tool interference.

Application of D-VL800/D-VL800M High-precision CNC Vertical Lathe

It is widely used in the manufacturing of automobile parts, such as hubs, brake discs, wheels, brake hubs, reducers, and more. It is particularly suitable for processing complex components like discs, shells, and short shaft parts used in bearings, energy, and other industries. The machine tools offer high precision, efficiency, and quality.

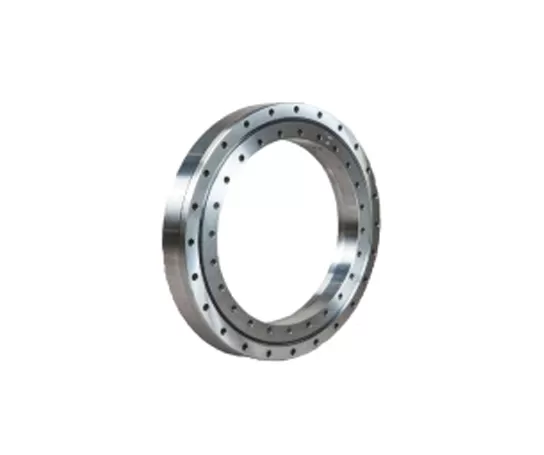

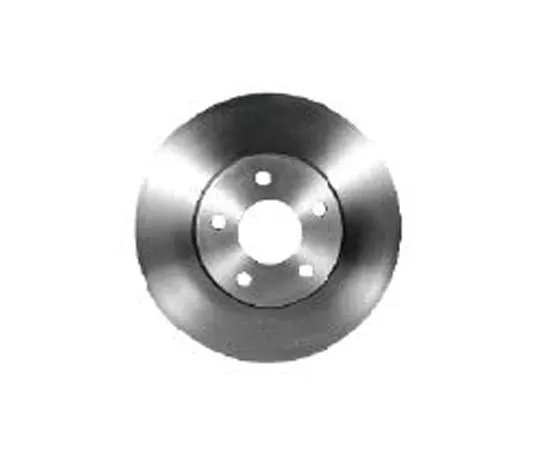

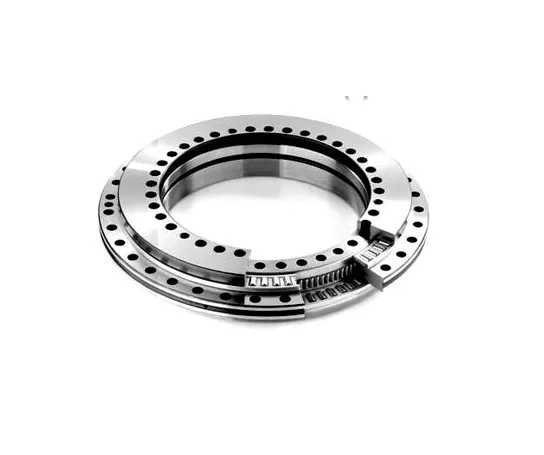

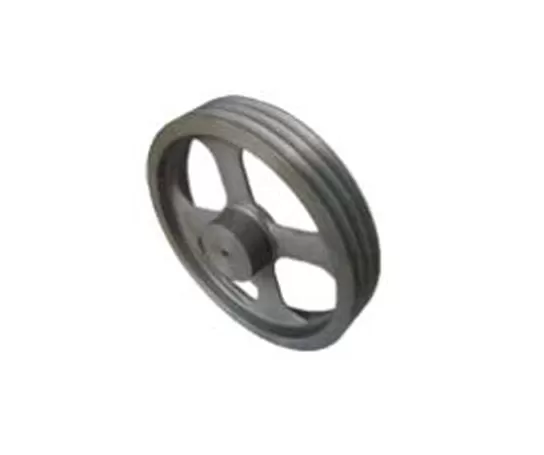

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of D-VL800/D-VL800M High-precision CNC Vertical Lathe

Item		Unit	D-VL800	D-VL800M
Machining Range	Max Swing Diameter	mm	950
	Max Turning Diameter over Carriage	mm	800
	Max Workpiece Height	mm	800
	Max Workpiece Weight	Kg	1500
Spindle	Chuck Diameter	inch	18″(Hydraulic Chuck)
	Spindle Speed Range	r/min	50～1500
	Max Spindle Torque	Nm	1200
	Spindle Nose Type	/	A2-11
	Spindle Centering Bearing Diameter	mm	200
	Main Motor Power (S1/S2)	KW	S1=16,S2=24
Tool Post	Turret Type	/	Horizontal (Vertical optional)	Horizontal
	Number of Positions	/	12（6）	12
	Drive Type	/	Hydraulic	Servo
	Outer Diameter of Cutting Tool Holder	mm	32×32
	Inner Hole Tool Holder Diameter	mm	φ50
Feed	X/Z Axis Feed Guideway Type	/	Linear Guide
	X/Z Axis Feed Rate	mm/min	0.1～1000
	X/Z Axis Rapid Traverse Speed	m/min	20/16
	X-Axis Horizontal Travel	mm	—20～465
	Z-Axis Vertical Travel	mm	820
	X/Z Axis Feed Motor Torque	Nm	22/30
Machining Capability	Power Head Motor Power	KW/Nm	/	5.5
	Max Drilling Capacity	mm	/	Φ25×0.25
	Max Tapping Capacity	mm	/	M18×2.5/M27×2
	Max Grooving Capacity	mm	/	Φ30×20×40
Accuracy	Positioning Accuracy (X-axis)	mm	0.01
	Positioning Accuracy (Z-axis)	mm	0.01
	Positioning Accuracy (C-axis)	"	/	51
	Repeatability (X-axis)	mm	0.006
	Repeatability (Z-axis)	mm	0.006
	Repeatability (C-axis)	"	/	20
Other	CNC System	/	Siemens
	Total Power Supply Capacity	kVA	50	55
	Coolant Tank Capacity	L	360
	Footprint (Length×Width)	mm	2600×3450
	Machine Height	mm	3750
	Machine Weight (Approx.)	t	10.5	11

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
