Taikan CNC: D-VL Series CNC Vertical Lathe Manufacturer & Suppliers

Types of D-VL Series CNC Vertical Lathe

D-VL500/D-VL500M High-precision CNC Vertical Lathe

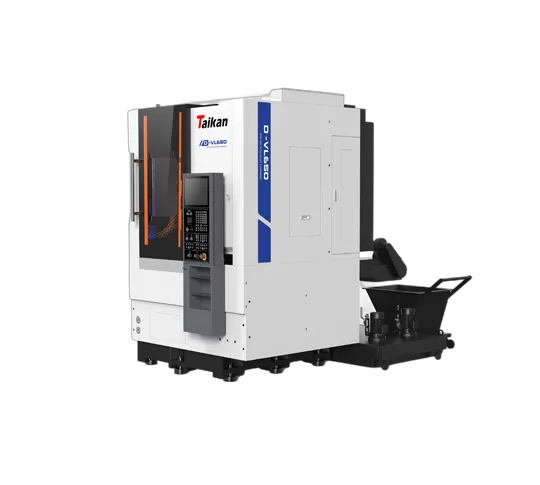

D-VL650/D-VL650M High-precision CNC Vertical Lathe

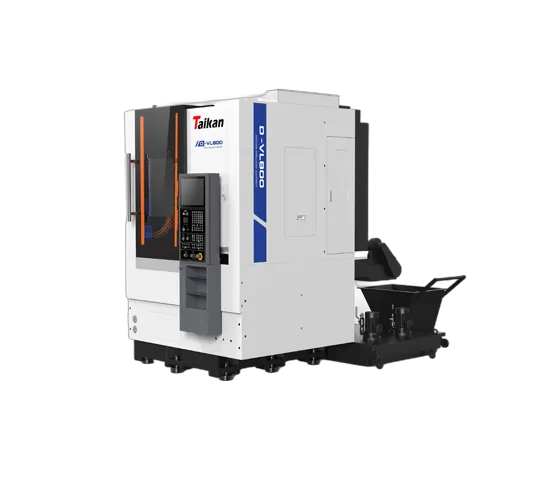

D-VL800/D-VL800M High-precision CNC Vertical Lathe

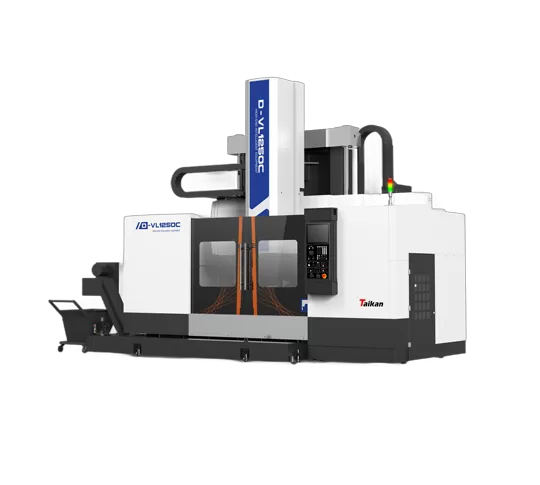

D-VL1250C/D-VL1250CM High-precision CNC Vertical Lathe

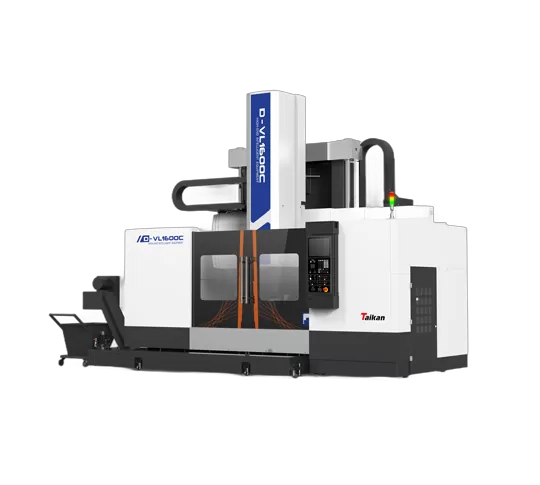

D-VL1600C/D-VL1600CM High-precision CNC Vertical Lathe

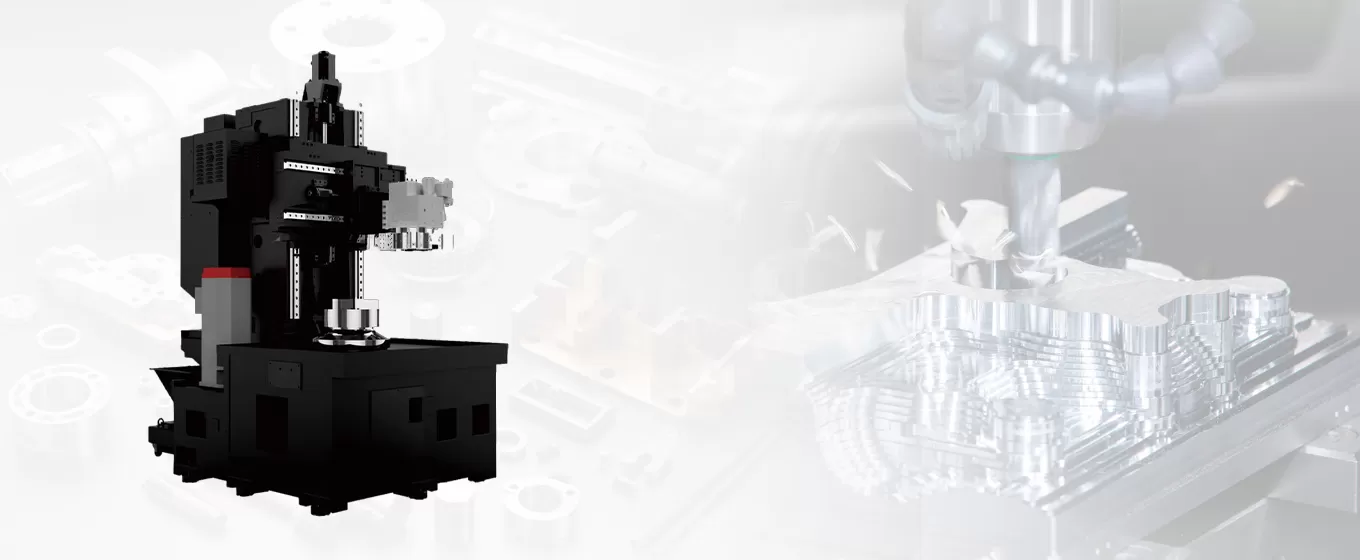

Advantages of D-VL Series CNC Vertical Lathe

The vertical structure avoids the roundness error caused by the gravity of the workpiece during horizontal clamping, ensuring the roundness accuracy of the parts.

D-VL Series

Item	Unit	D-VL500	D-VL650	D-VL800	D-VL1250C	D-VL1600C
Max. swing diameter	mm	Ø 650	Ø 800	Ø 950	Ø 1,400	Ø 1,800
Max. turning diameter	mm	Ø 500	Ø 650	Ø 800	Ø 1,250	Ø 1,600
Max. workpiece height	mm	500	600	800	Ø 1,000	Ø 1,000
Chuck diameter	Inch	12″ (Hydraulic chuck)	15″ (Hydraulic chuck)	18″ (Hydraulic chuck)	Ø 1100 mm (Worktable)	Ø 1400 mm (Worktable)
Spindle speed range	r/min	50~2500	50~2500	50~2500	3.15〜400	2.15〜315
Turret type	PCS	8-bit hydraulic turret	8-bit hydraulic turret	8-bit hydraulic turret	8-bit ATC	8-bit ATC
Control system		Siemens 828D	Siemens 828D	Siemens 828D	Siemens 828D	Siemens 828D
