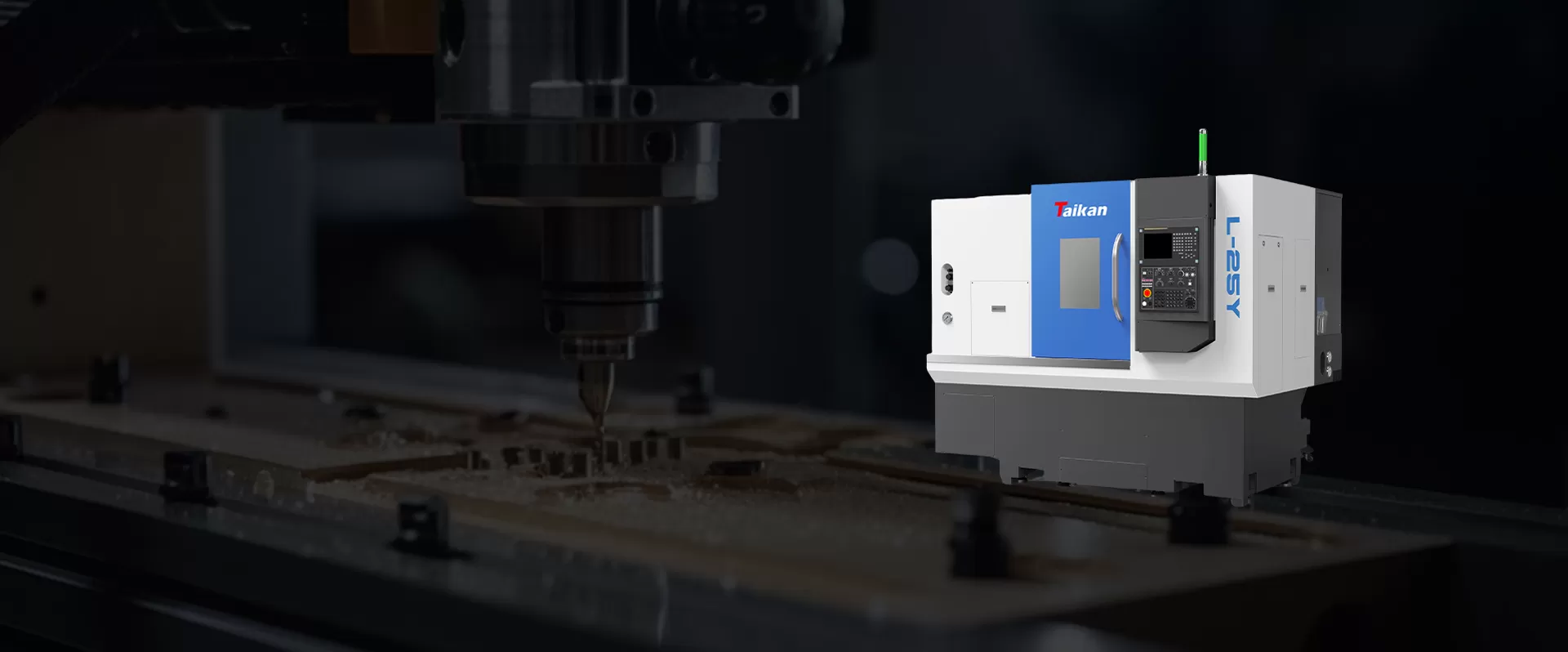

High Precision CNC Horizontal Turning(Milling) Compound With Y Axis

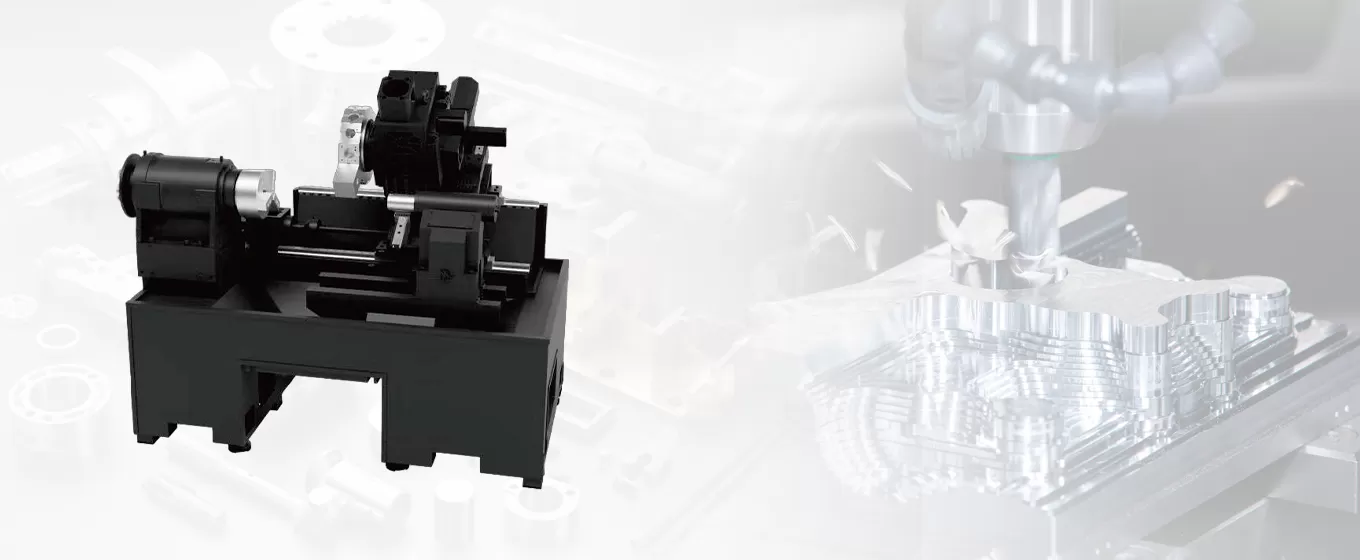

30° overall inclined bed, linear guide rails for XZ axis and box guideway for Y axis.
Mechanical spindle as standard, motorized spindle as optional, spindle with C-axis indexing function and hydraulic brake assist system.
Equipped with BMT45 / BMT55 power turret (including Y axis), and hydraulic sleeve tailstock with live center structure.
Item | Unit | L-25Y | L-35Y | L-35YP | L-45YP |
Chuck size | inch | 6” | 8” | 8” | 10” |
Max. swing diameter on bed | mm | Ø 480 | Ø 520 | Ø 600 | Ø 600 |
Max. machining diameter (shaft/disc) | mm | Ø 300 / Ø 350 | Ø 300 / Ø 350 | Ø 380 / Ø 450 | Ø 380 / Ø 450 |
Max. machining length | mm | 330 | 330 | 400 | 900 |
Spindle head type | mm | A2-5 | A2-6 | A2-6 | A2-8 |
Max. spindle speed | r/min | 6,000 | 4,000 | 4,000 | 4500 |
Turret type and tool capacity | BMT45/12 | BMT55/12 | BMT55/12 | BMT55/12 |
